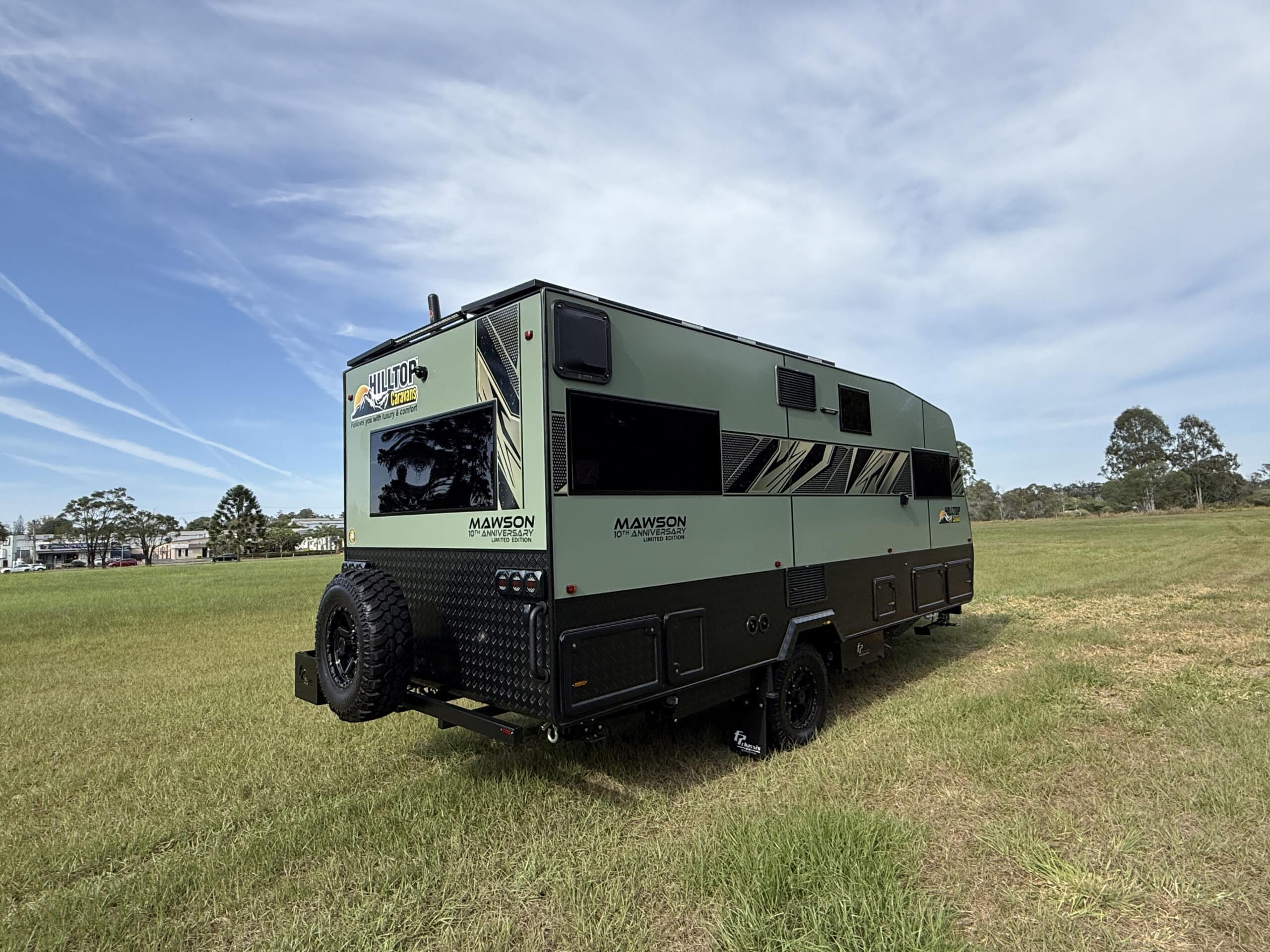

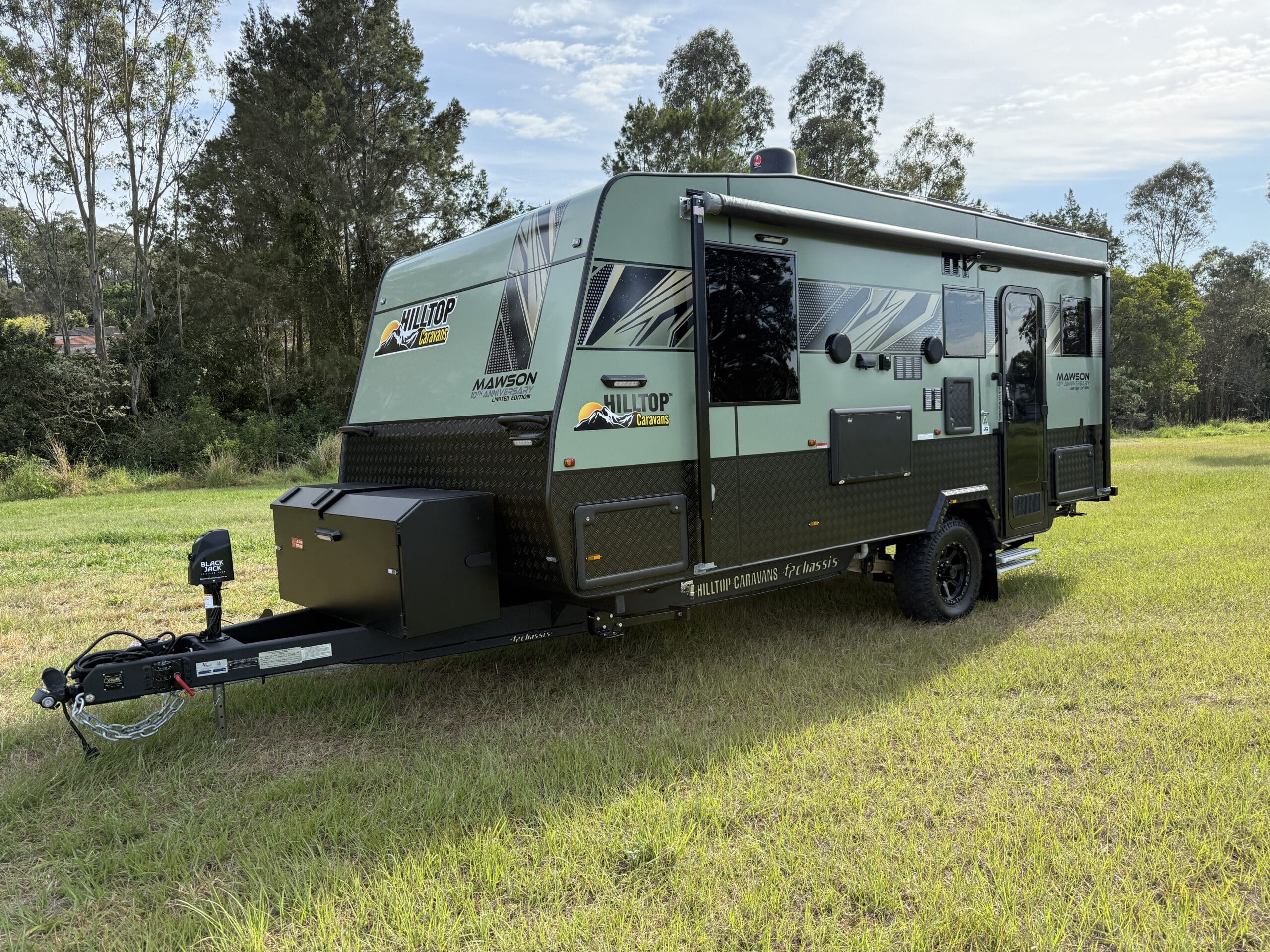

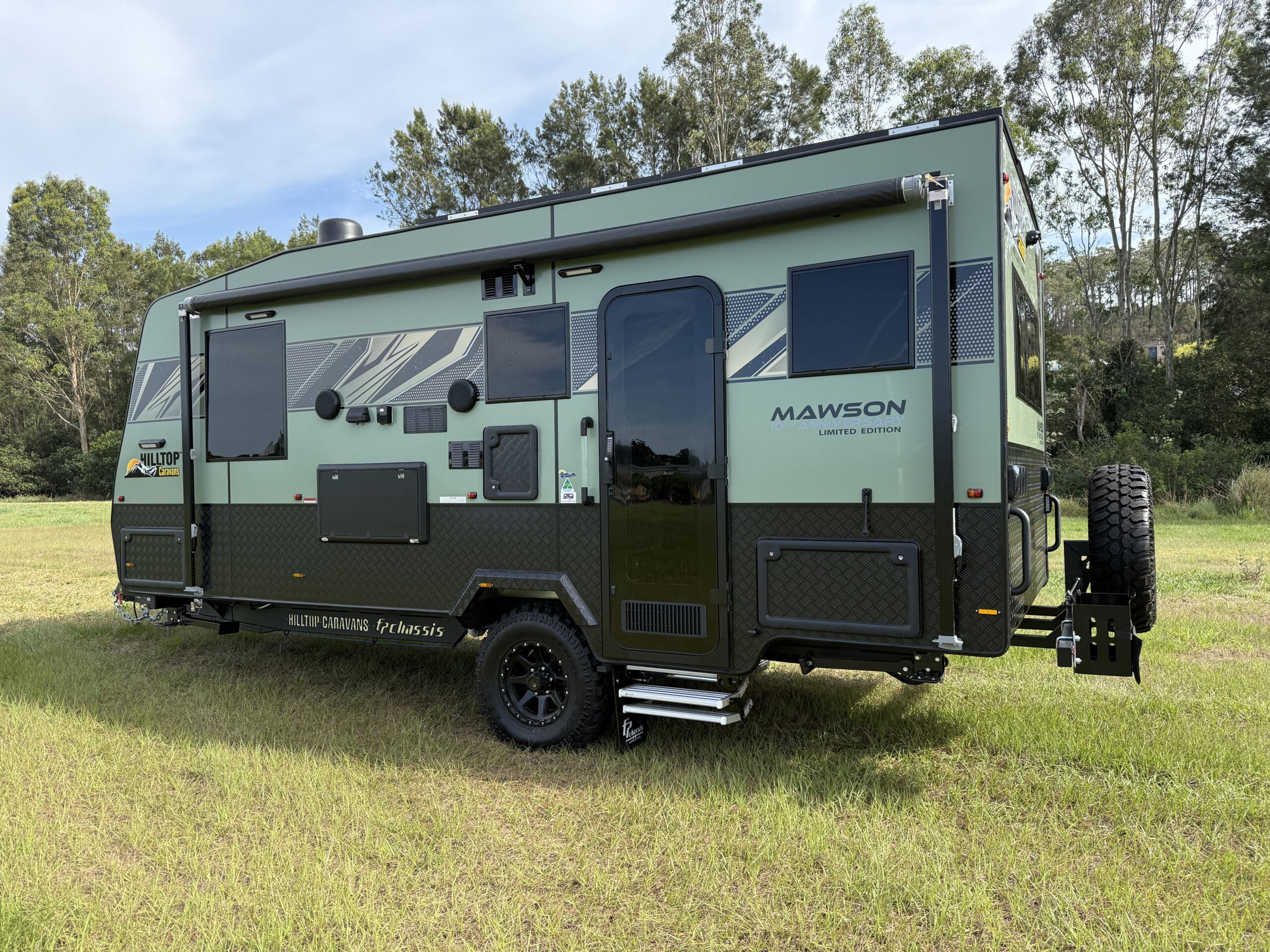

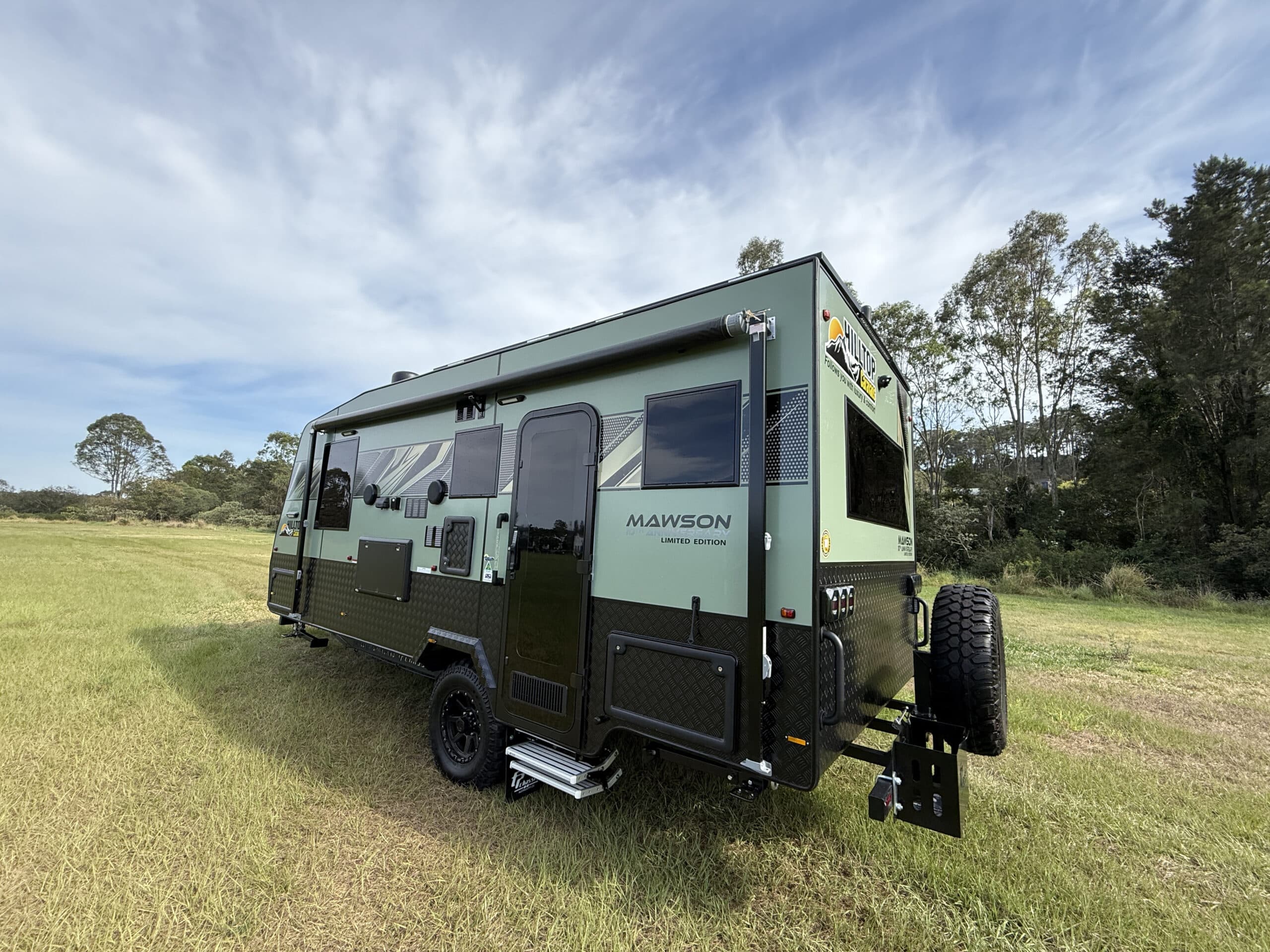

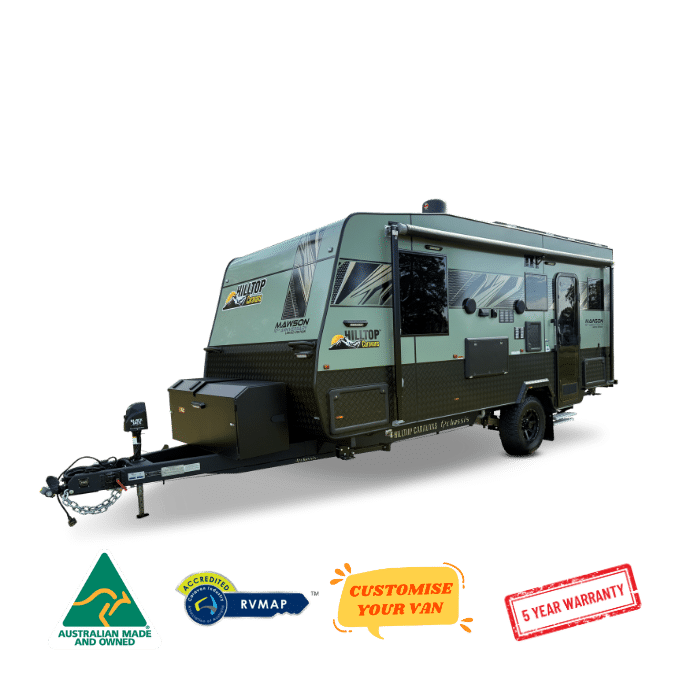

HILLTOP MAWSON
18’5
REAR DOOR
SINGLE AXLE
REAR CLUB
All terrain
WANT TO EXPLORE IN PERSON?
Book a private demo with our team in person to see it for yourself.
NOTE: IMAGES SHOWN MAY INCLUDE UPGRADES THAT VARY FROM DESCRIPTION
Specifications & Features
Specs
| Dimensions | Body Length: 18’5″ Overall Length: 8100mm Width: 2400mm Height: 3200mm TARE: 2400Kg ATM: 3000Kg Ball: 240Kg *All weights and dimensions are approximate only |

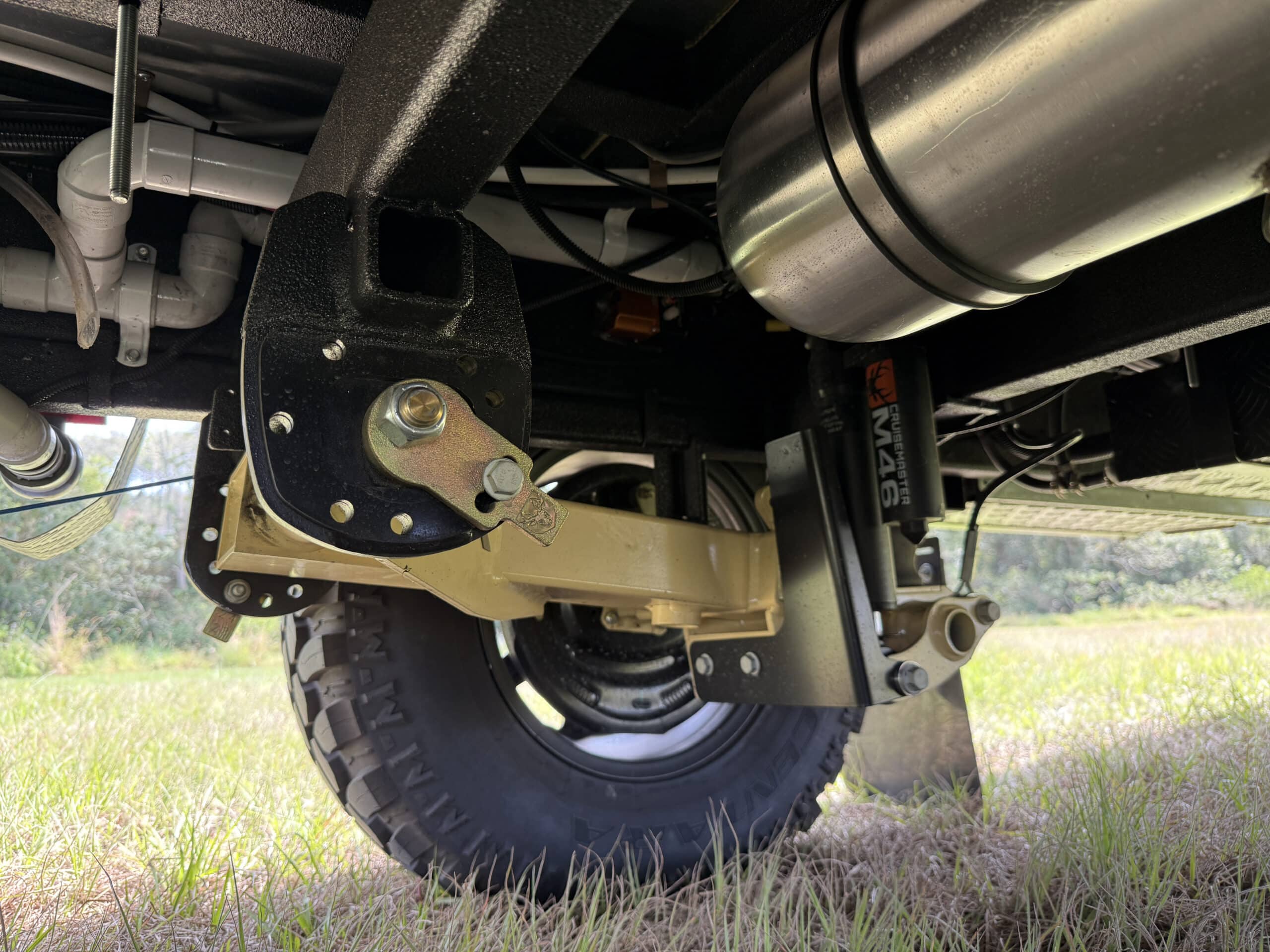

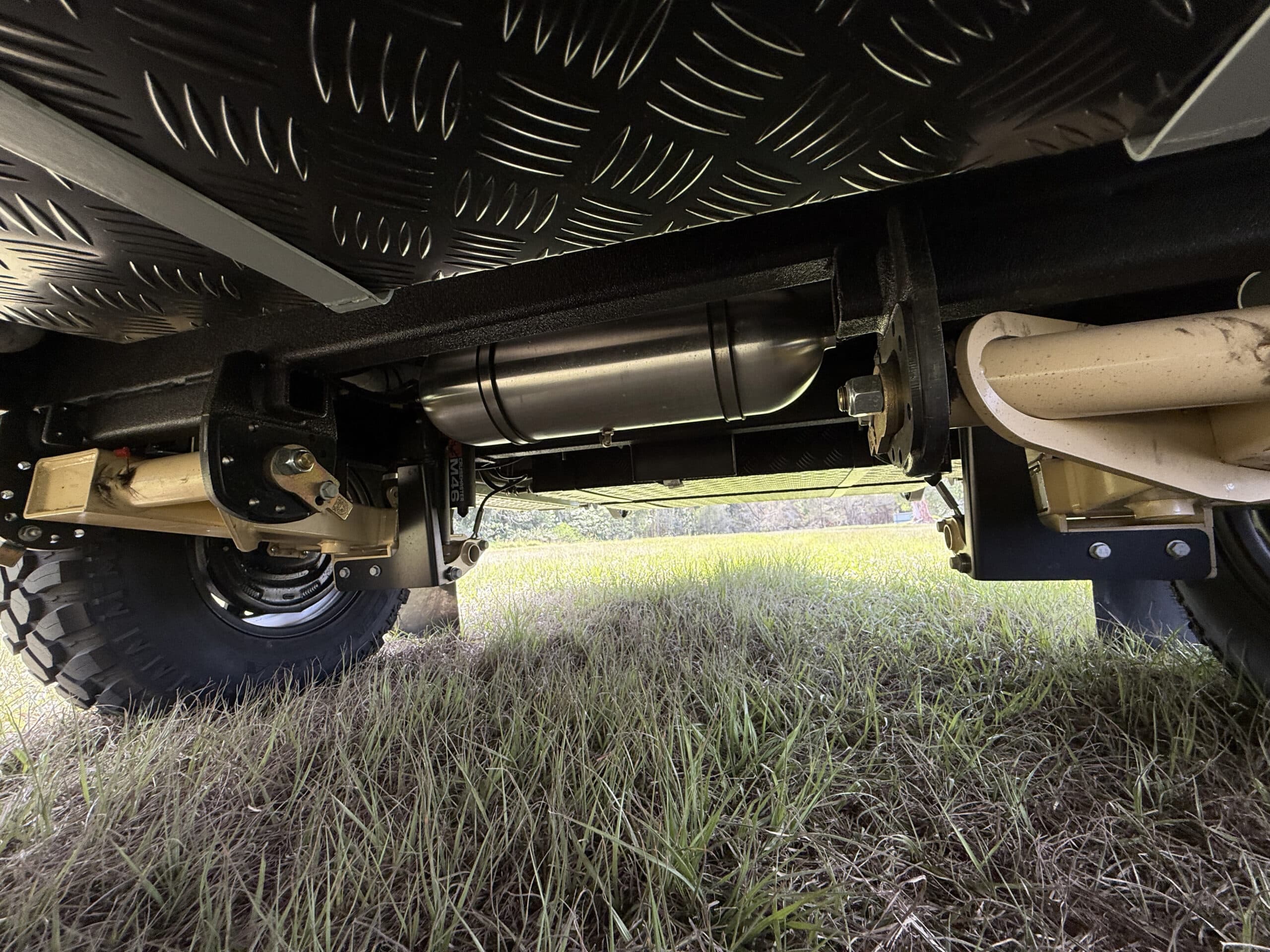

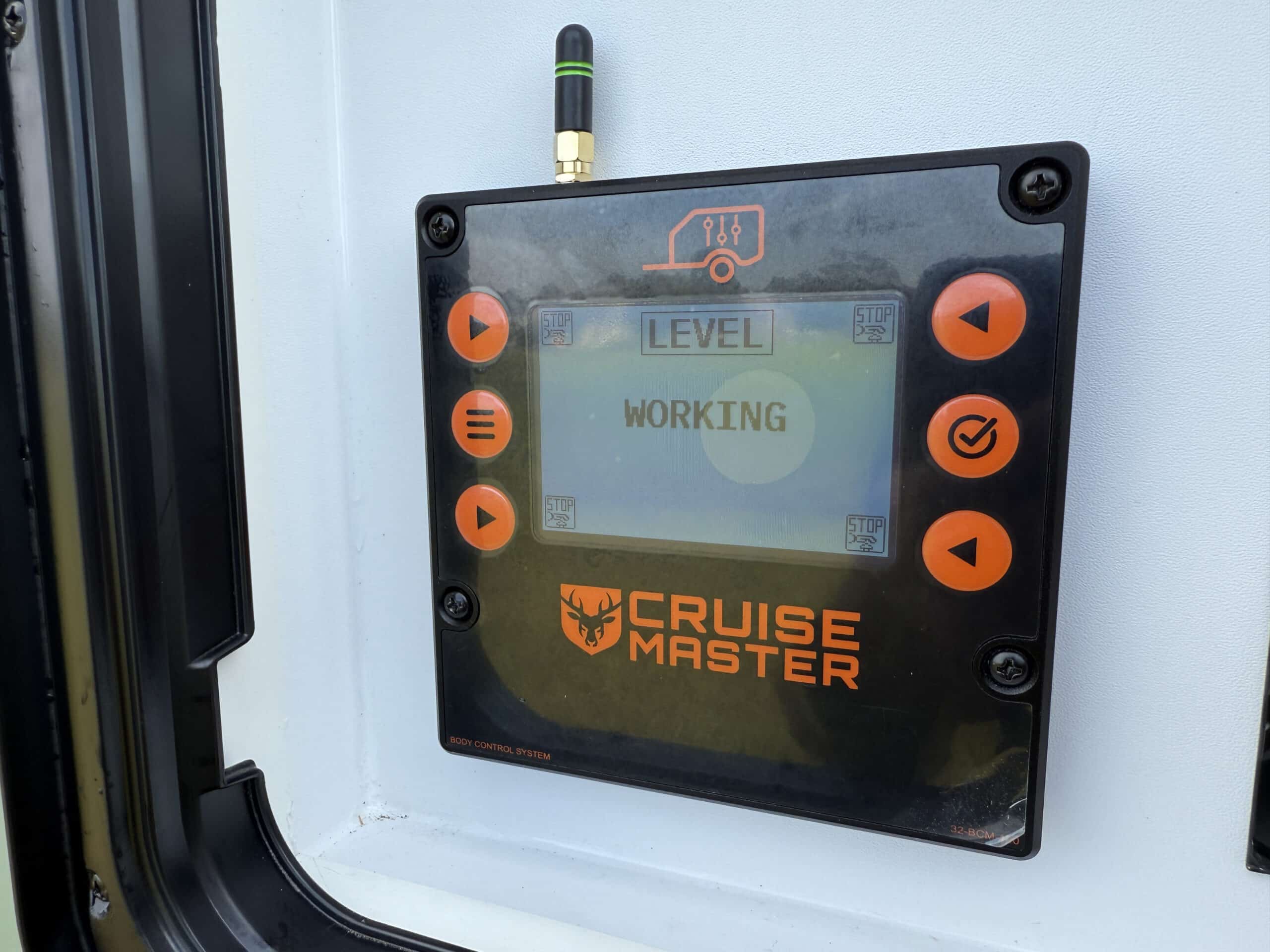

| Chassis and Suspension | 6″Australian steel chassis Cruisemaster ATX 3T Suspension Cruisemaster DO35 Hitch 16″ Wheels with All Terrain tyres 2 Arm bumper with 1 spare wheel and jerry can holder Checker plate protection under van |

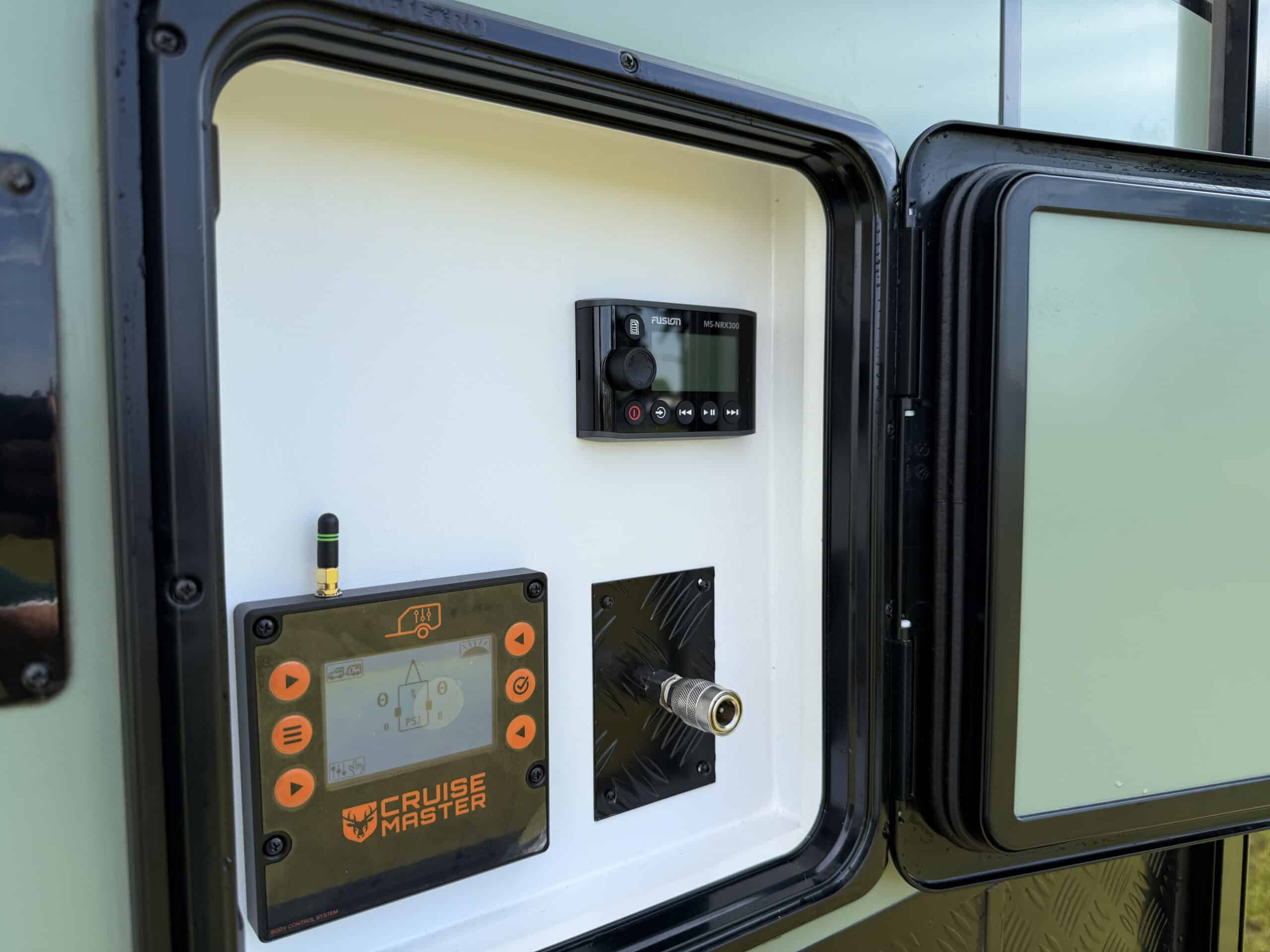

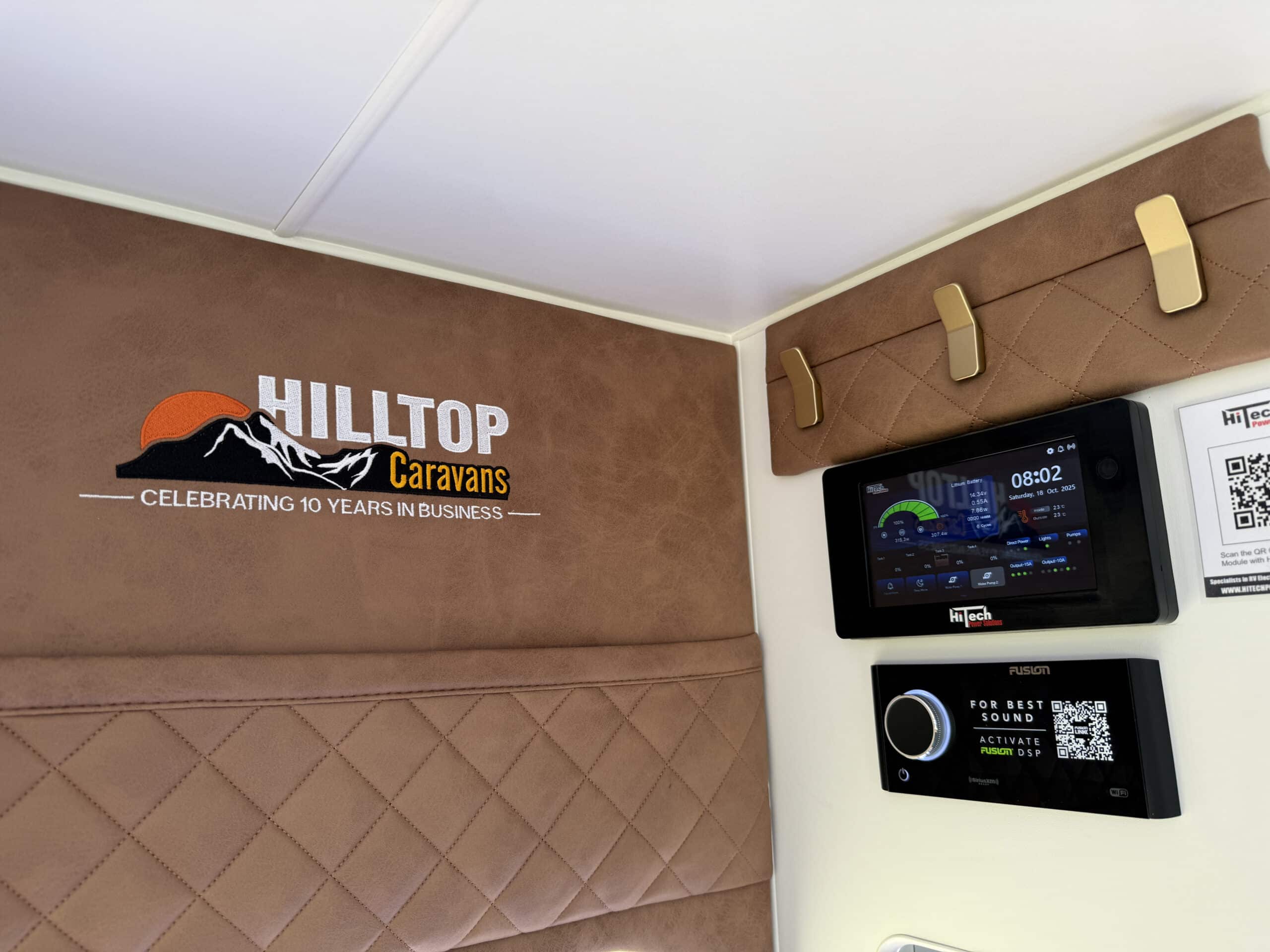

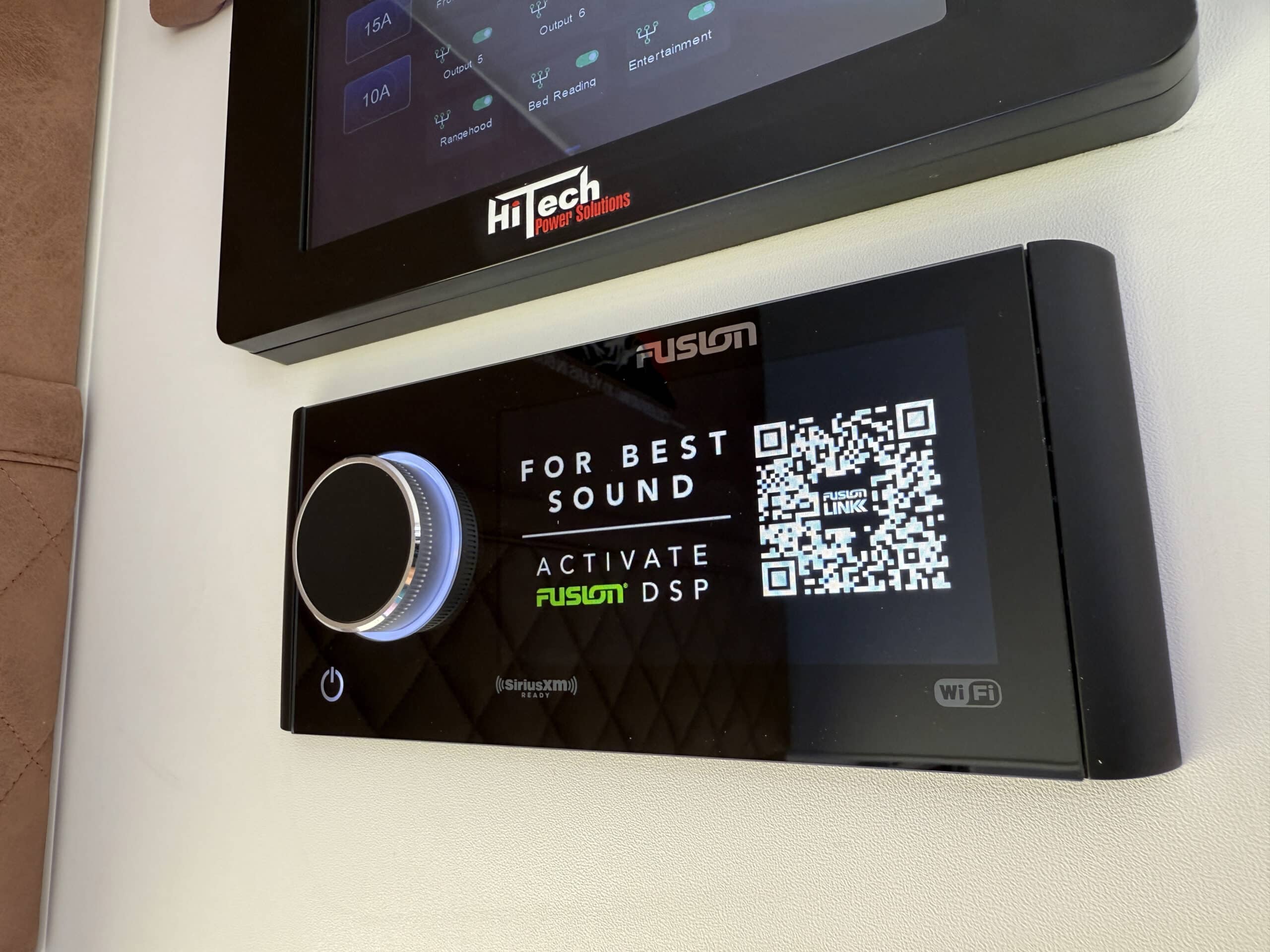

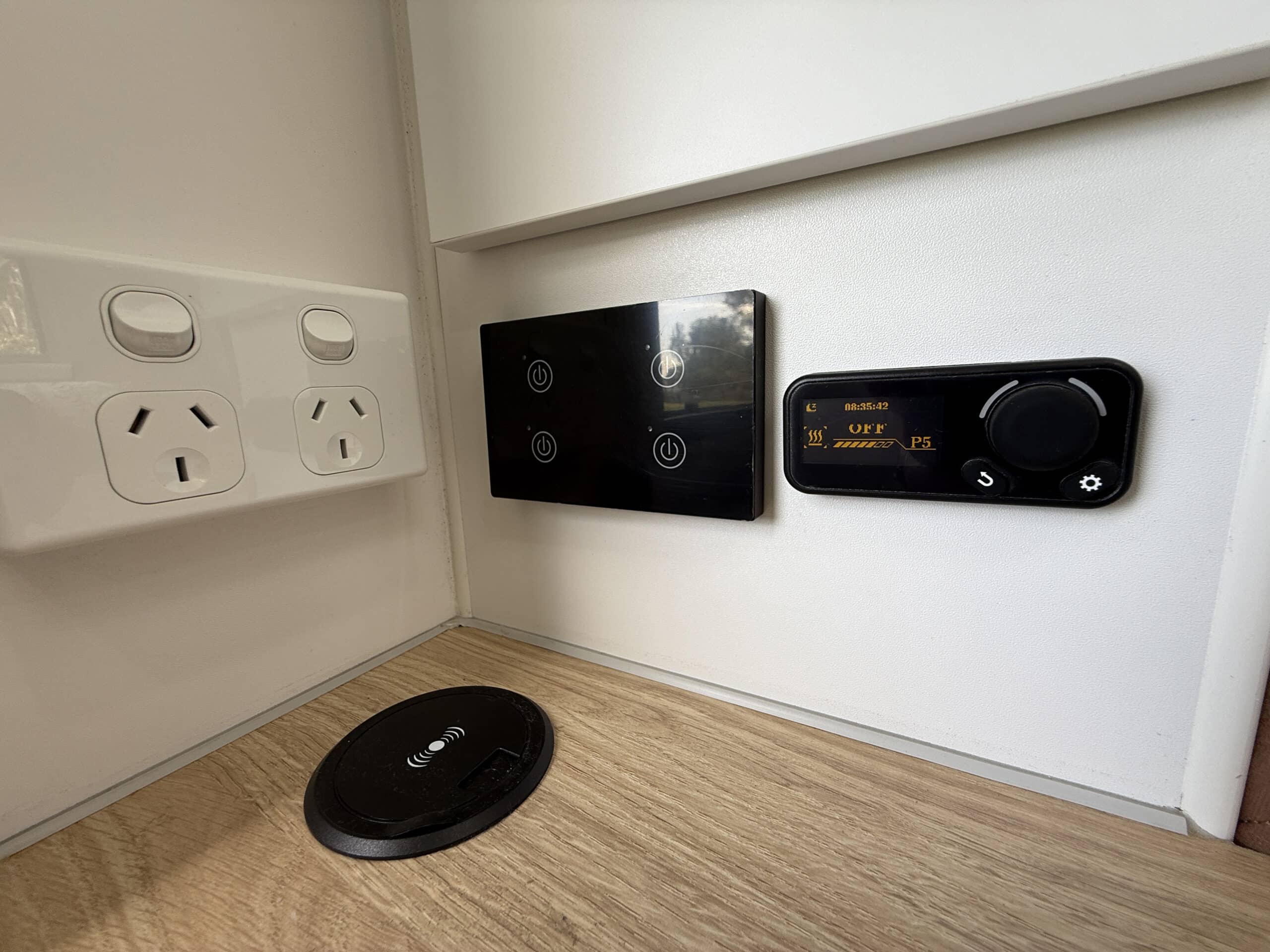

| Electrical | Hi-Tech battery management with touch screen 600W of solar (3 x 200W solar panels) 1 x 314Amp Lithium battery with additional battery box for expansion 2600W inverter wired to all points 3 in One Charger – Includes DCDC Charger, MPPT Controller and ACDC Charger |
| Water | 2 x 95ltr fresh water tanks 110L Grey water tank All in one water filter (Installed under kitchen sink) Separate fill points for water tanks 28ltr Swift hot water service Grey water hose |

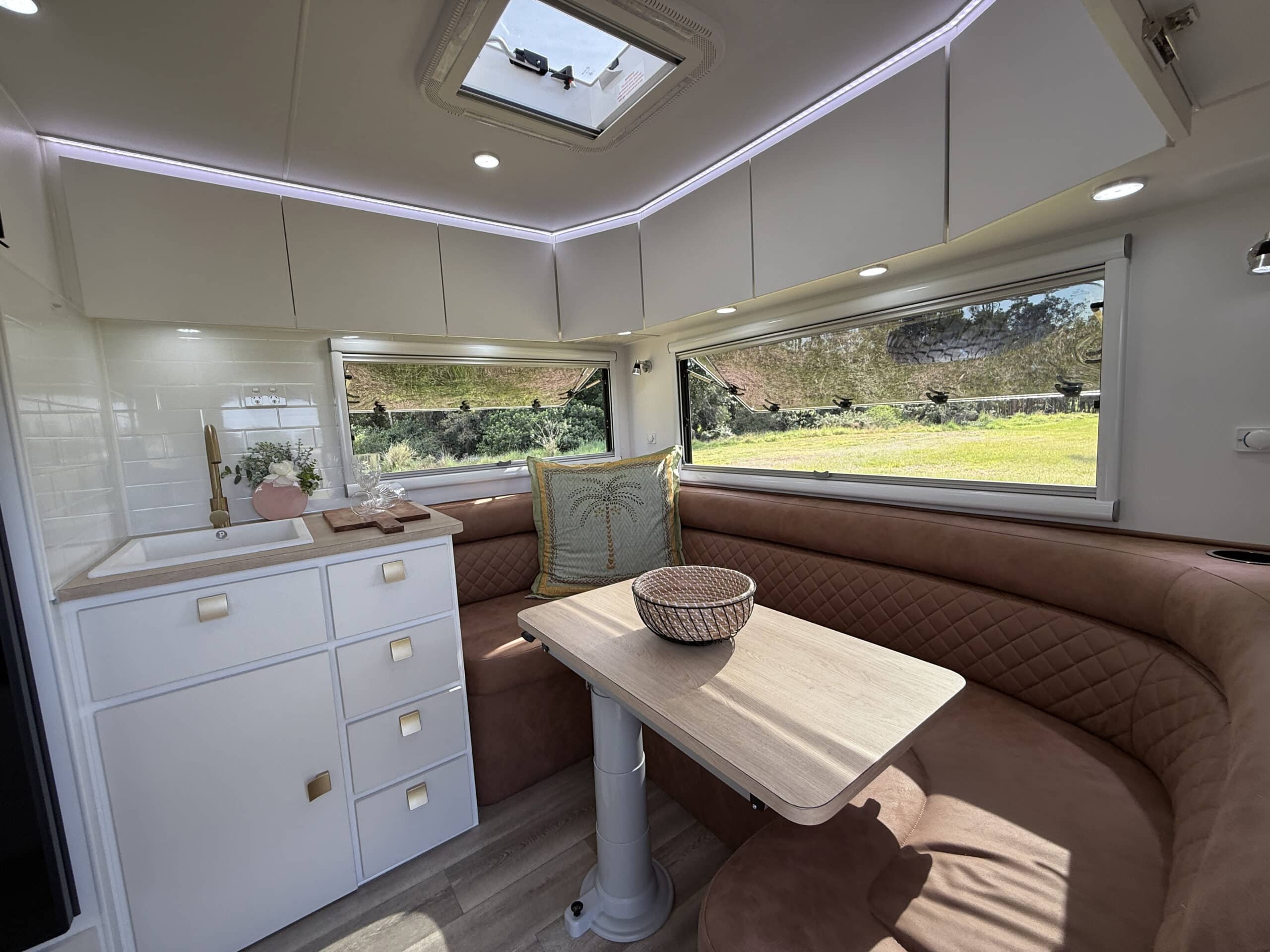

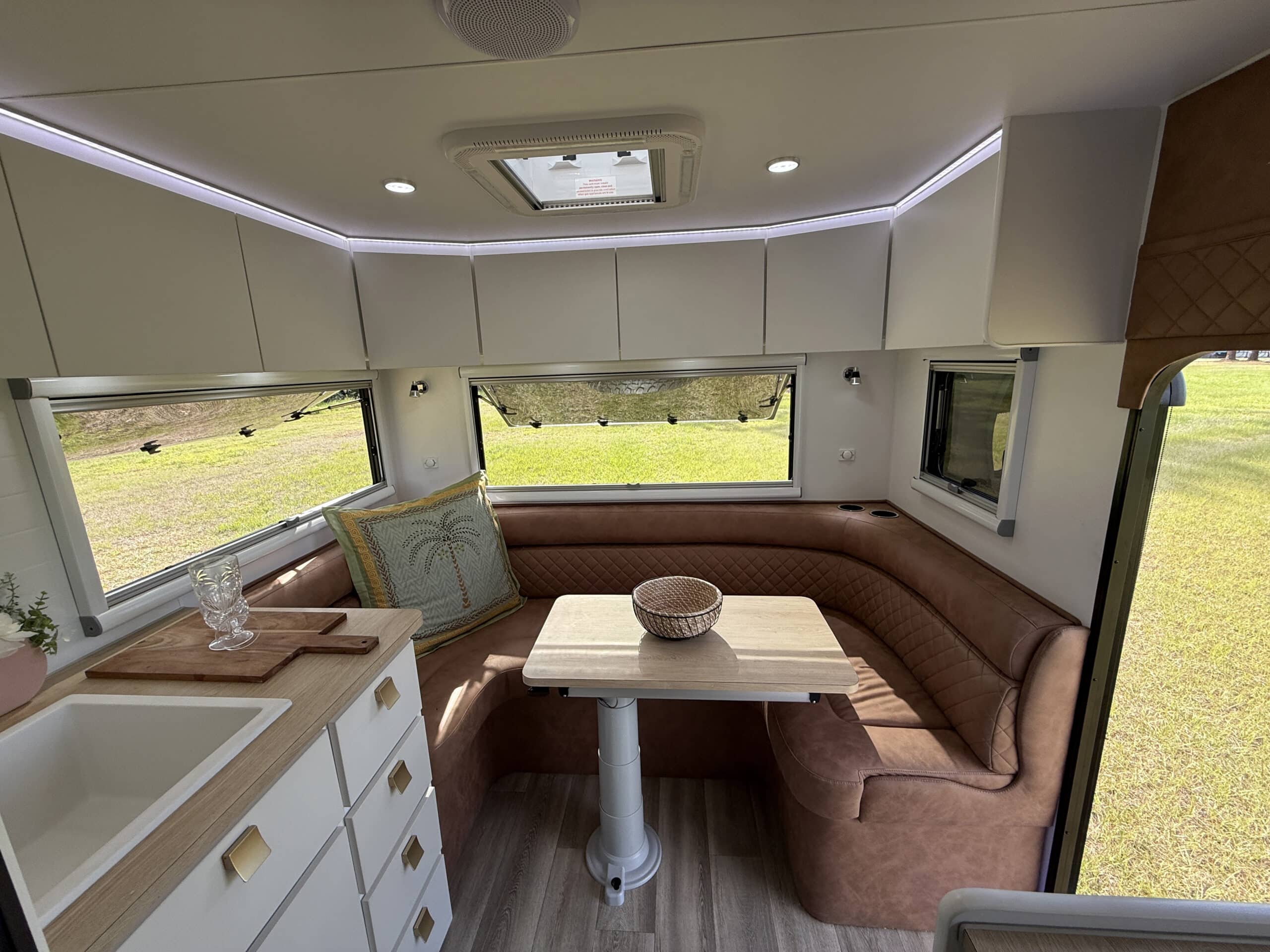

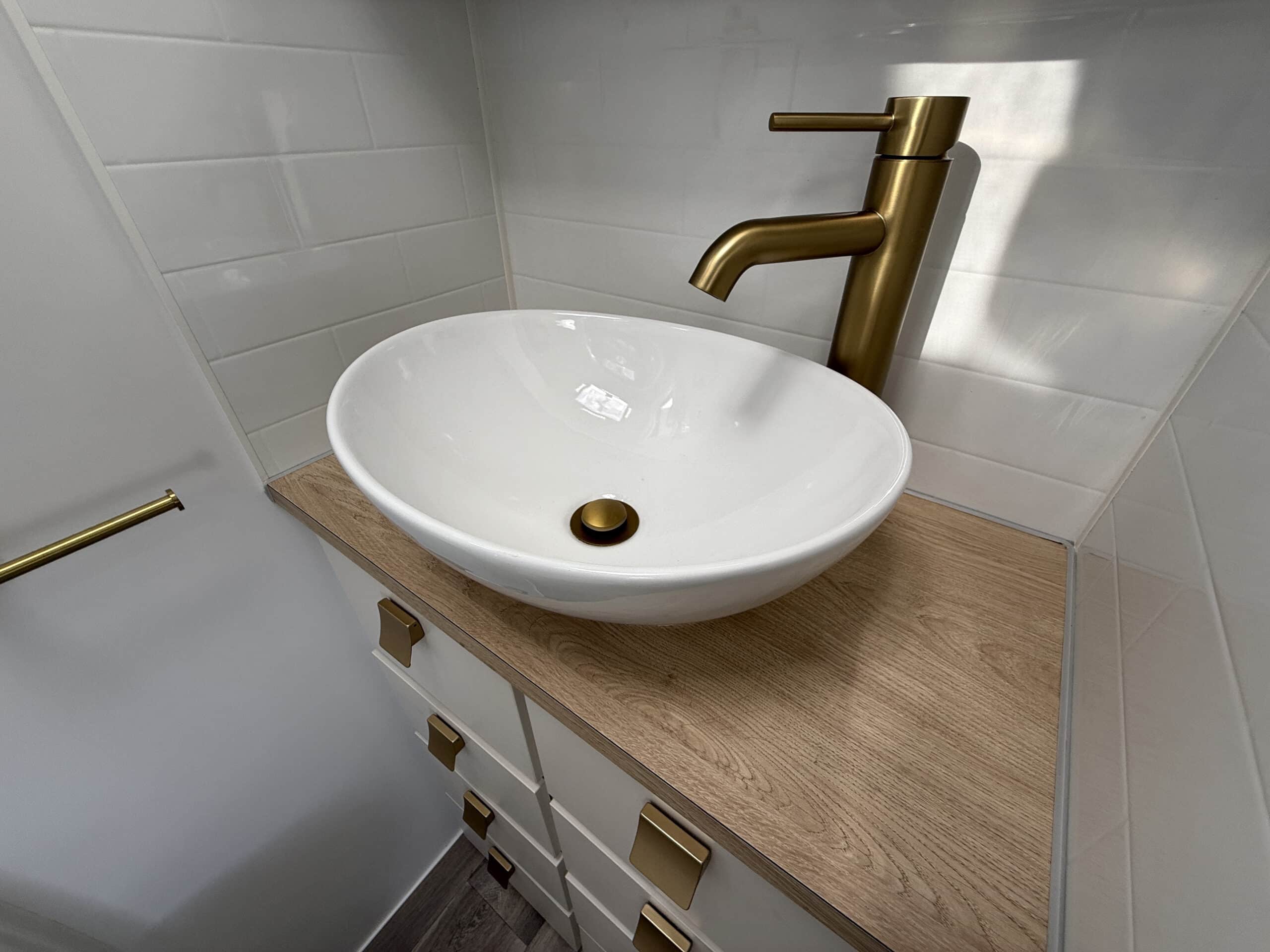

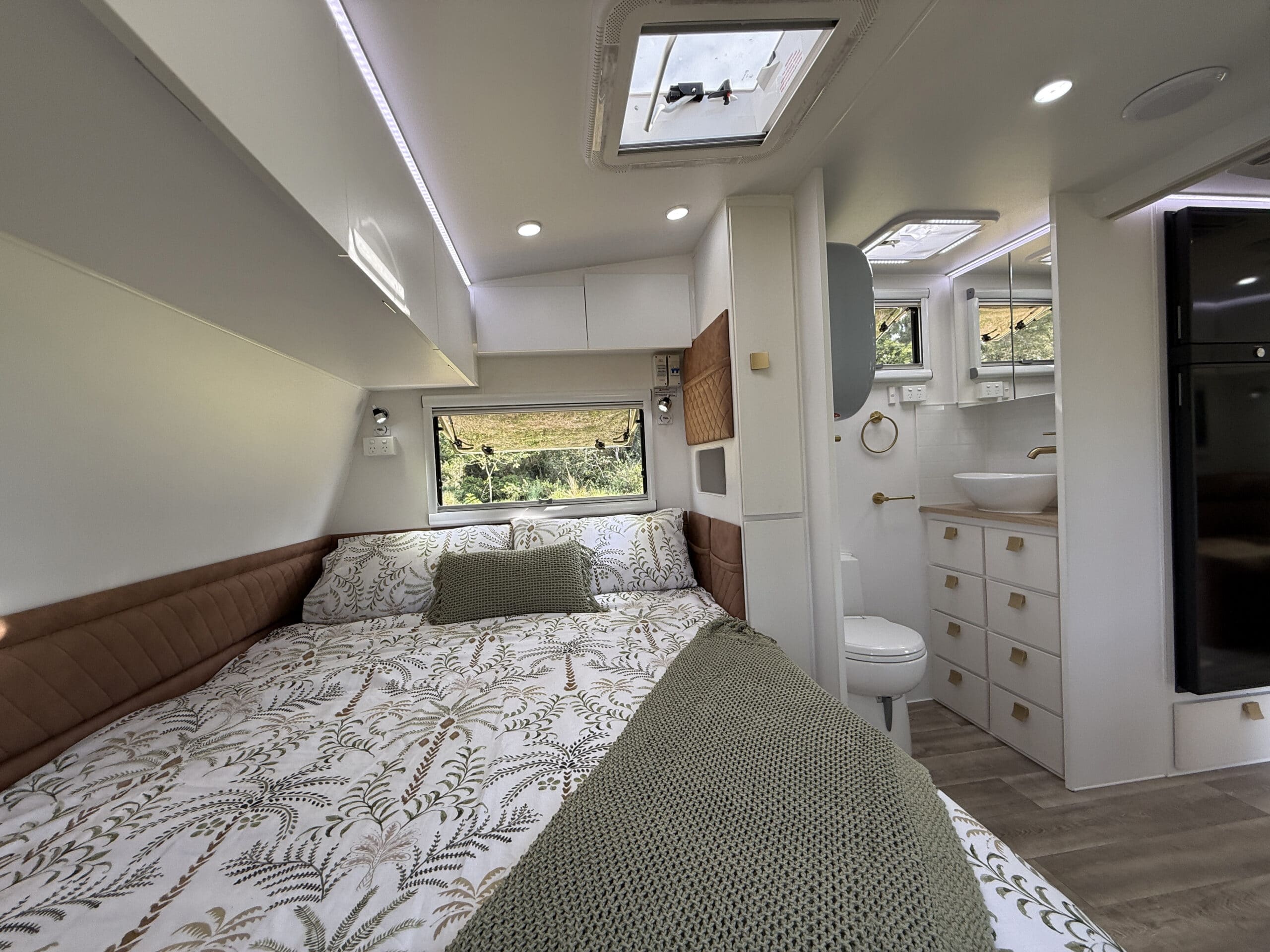

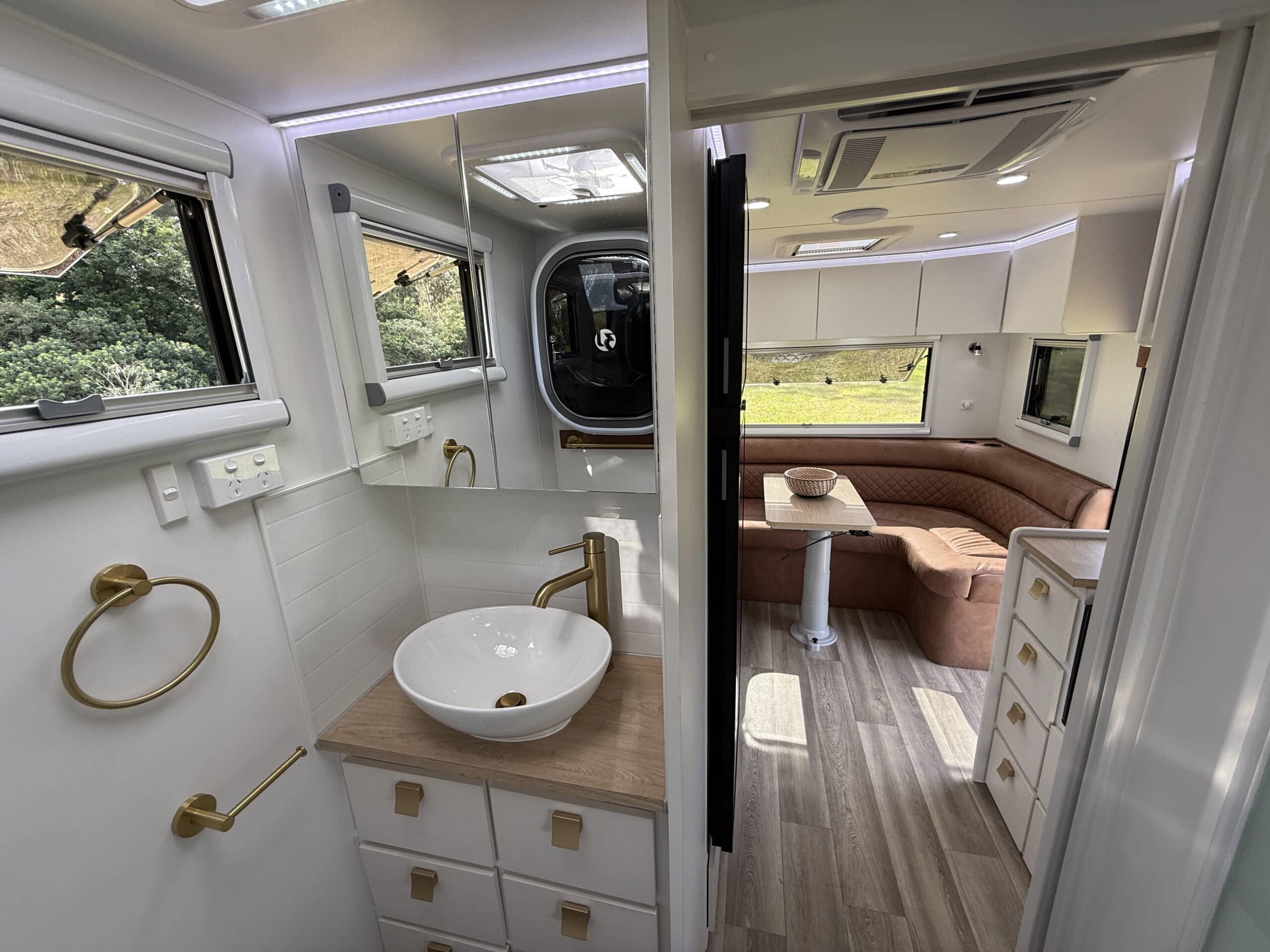

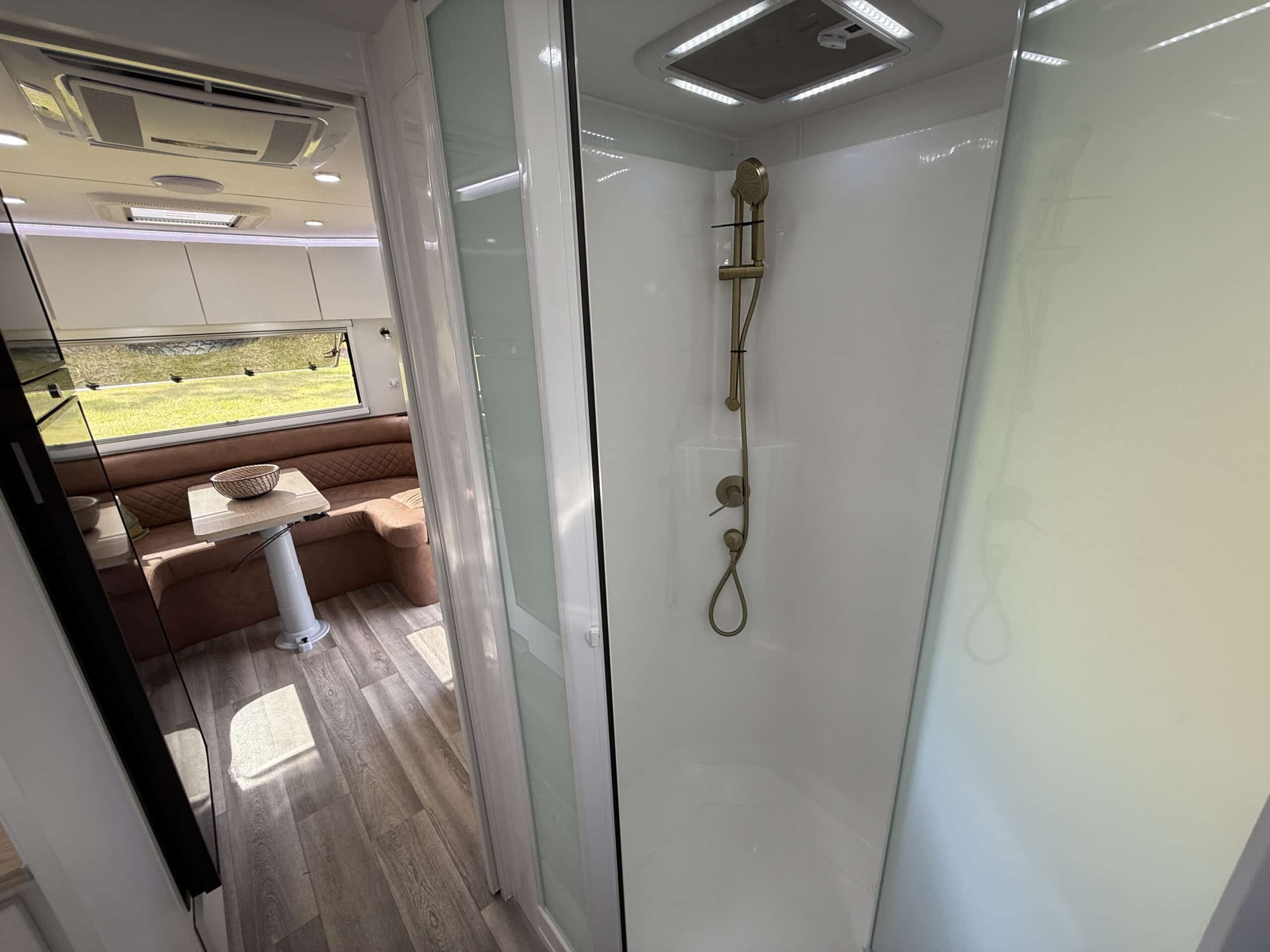

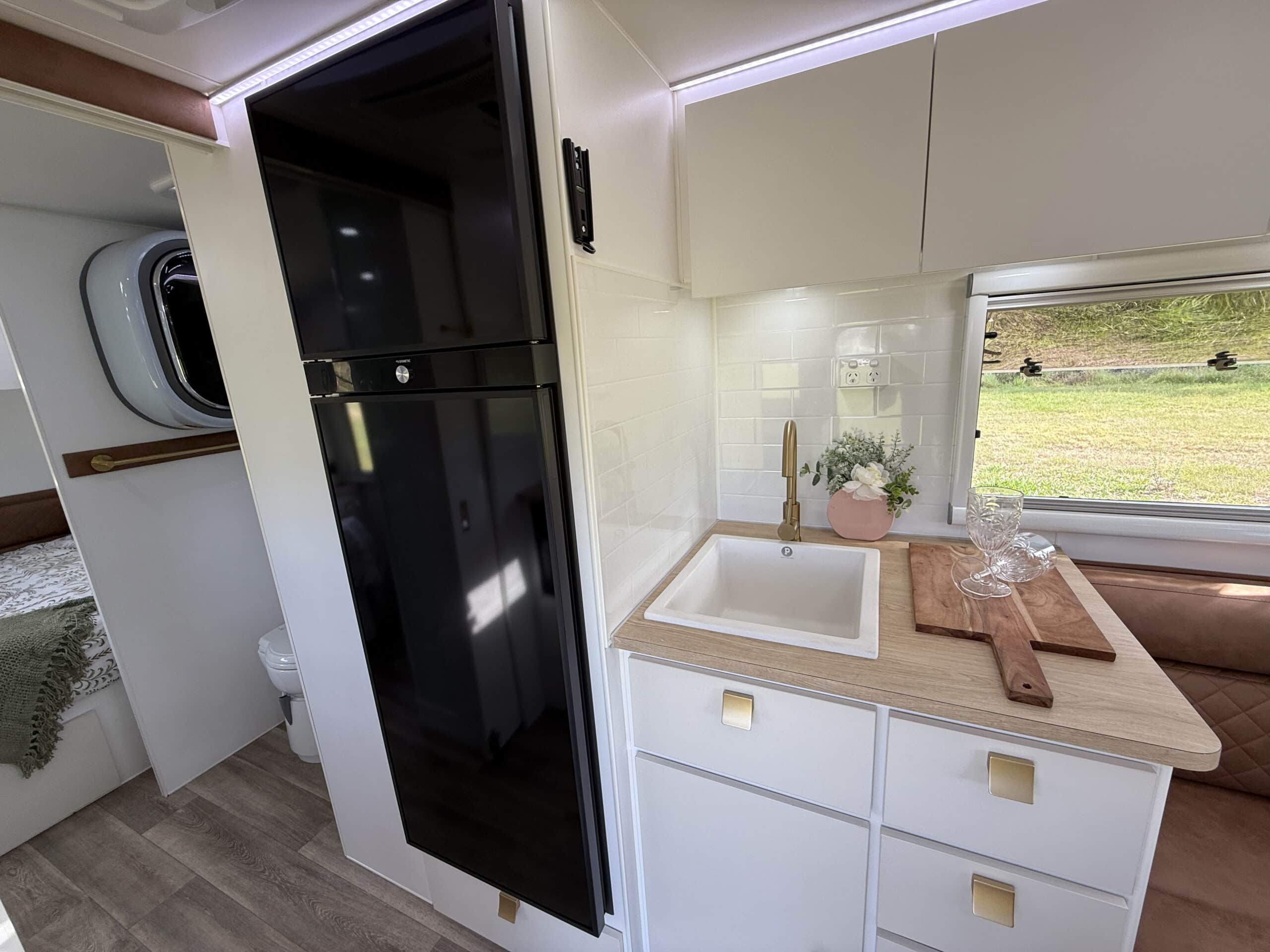

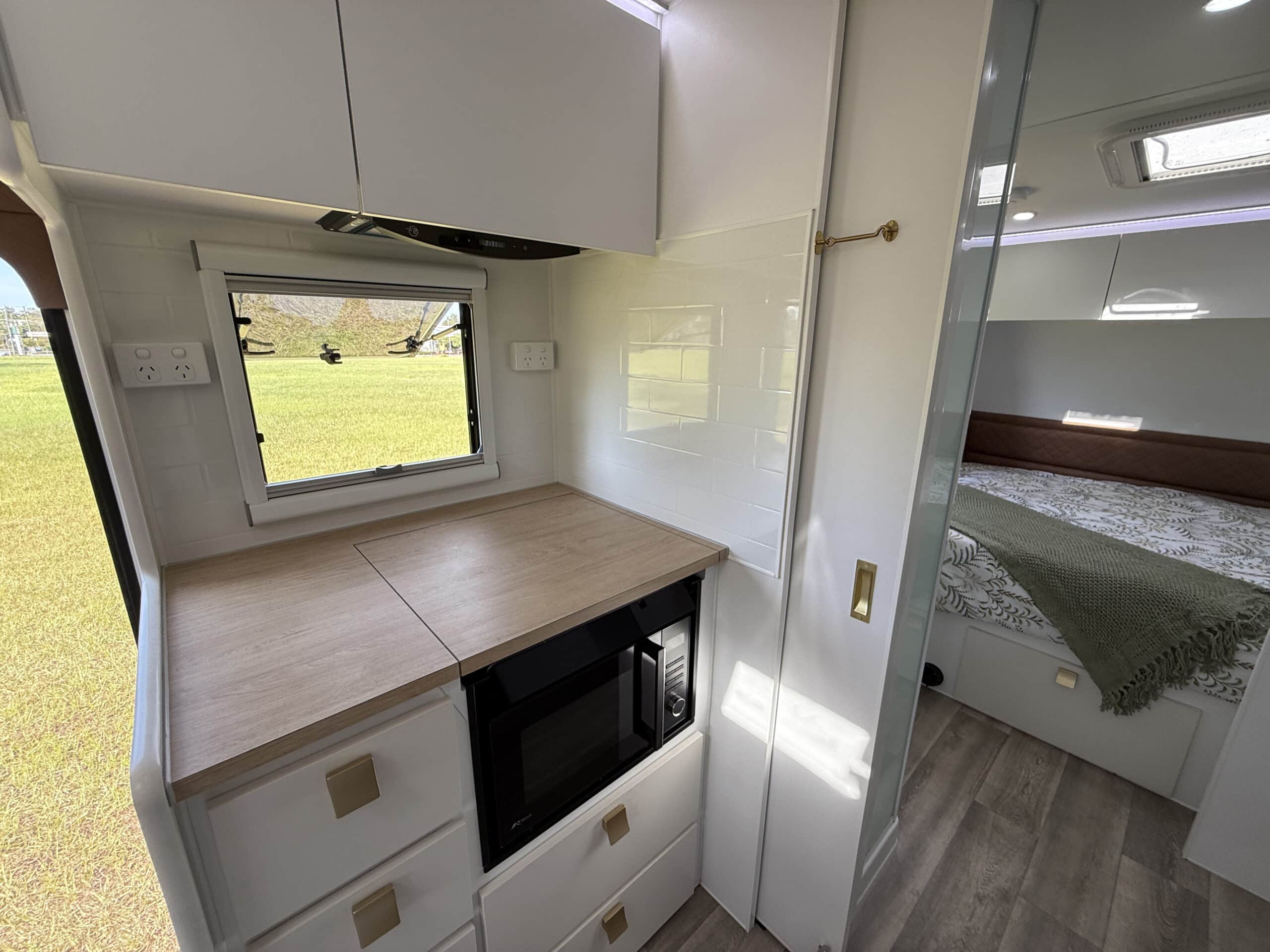

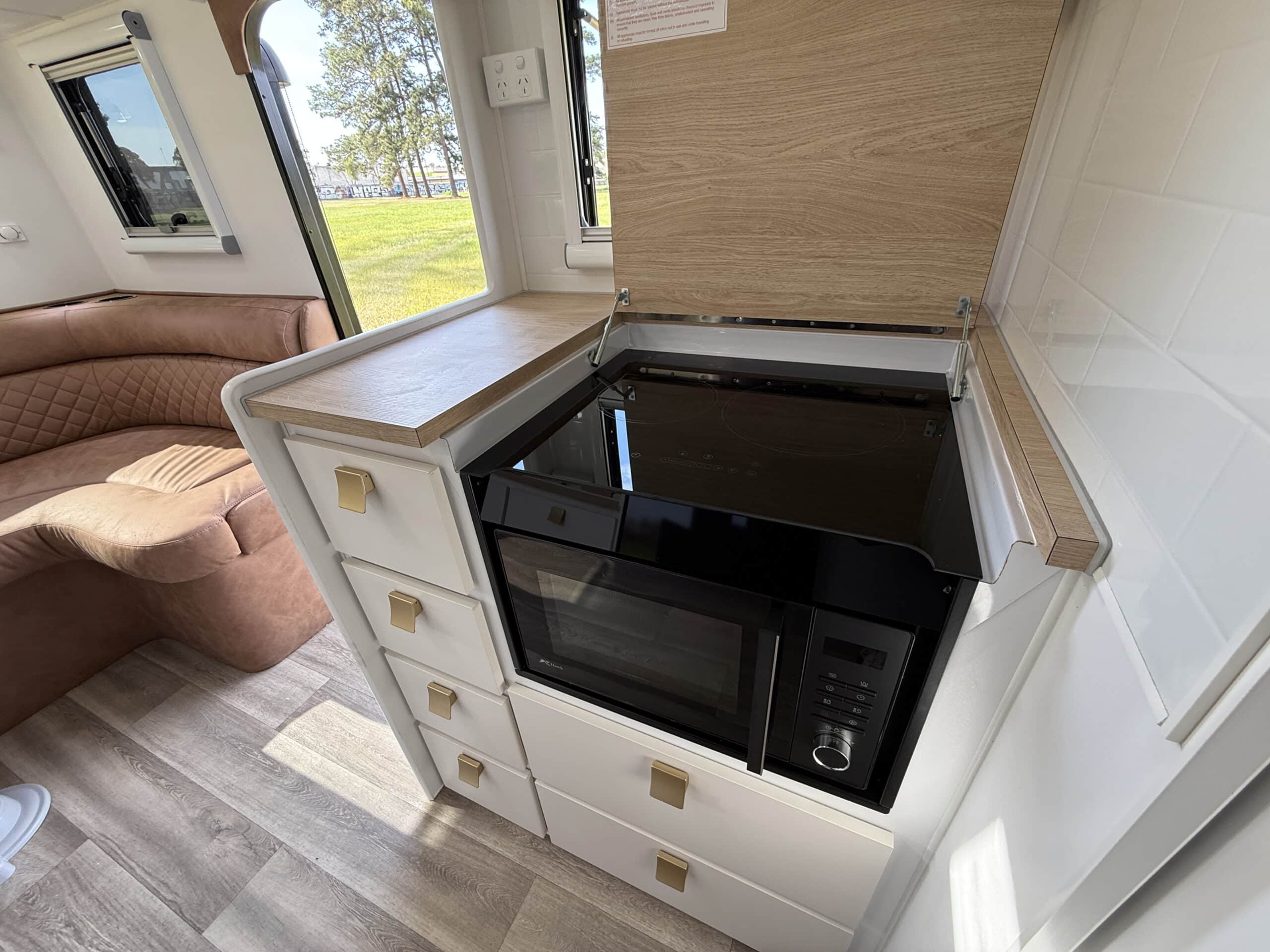

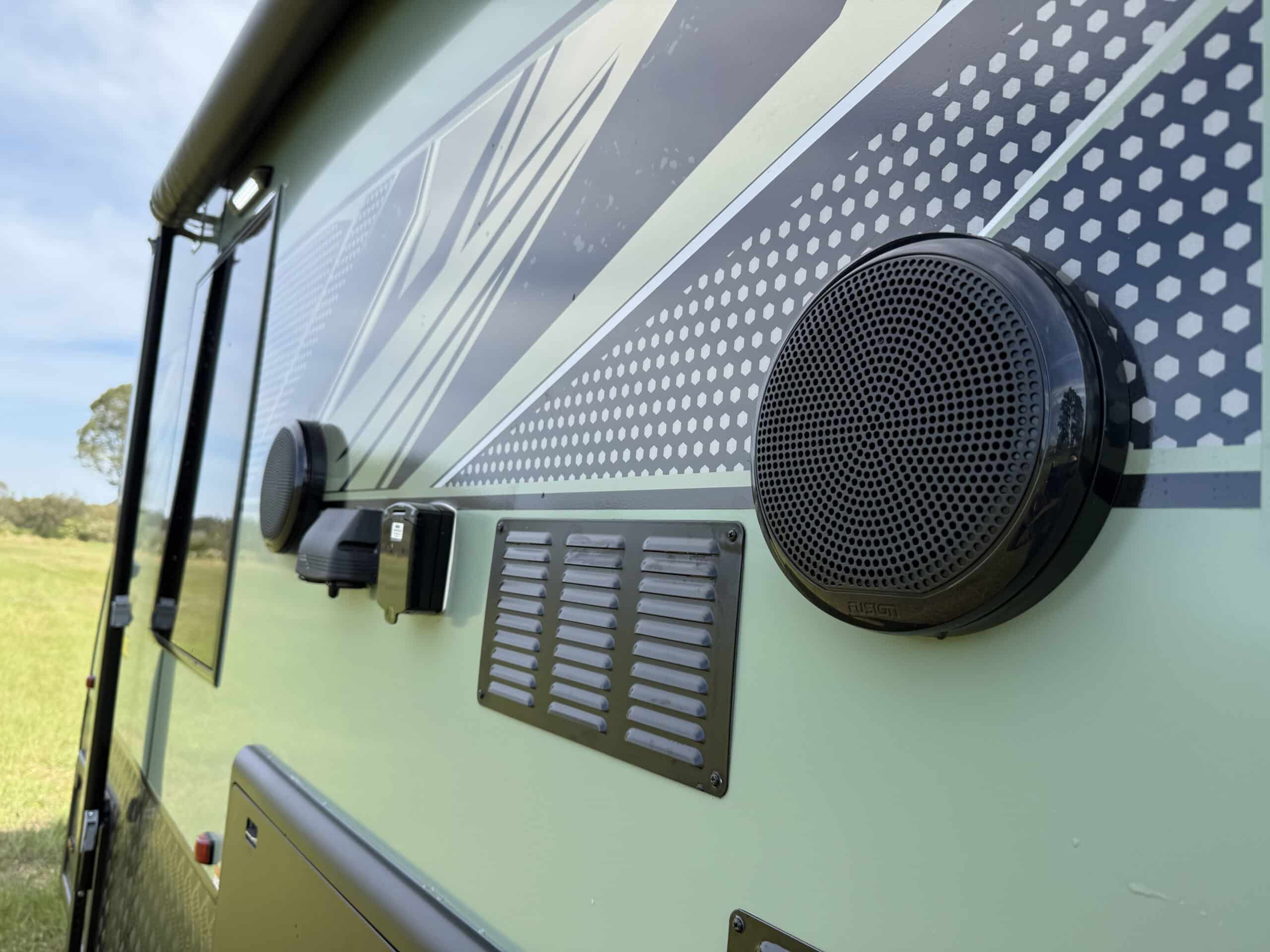

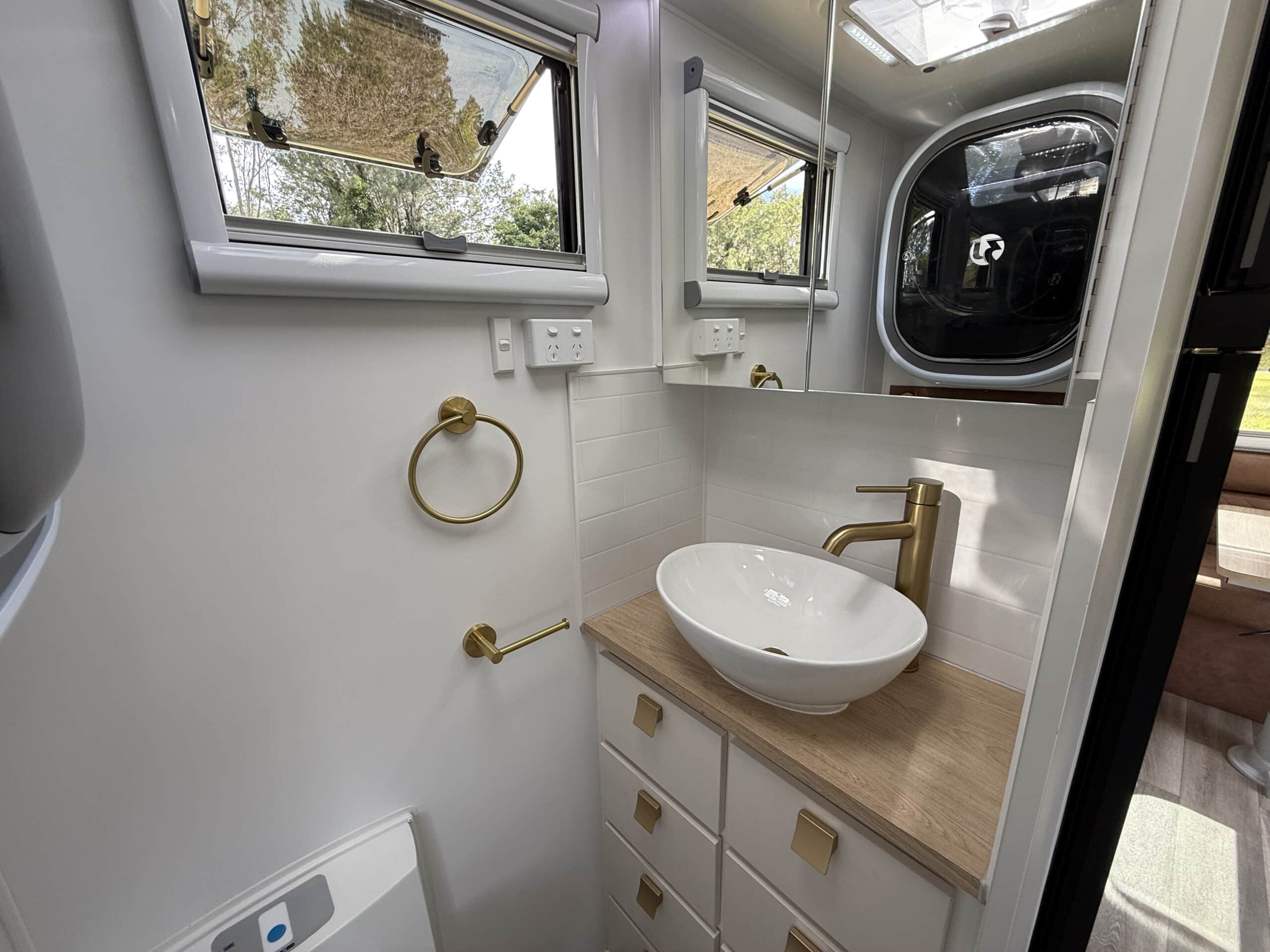

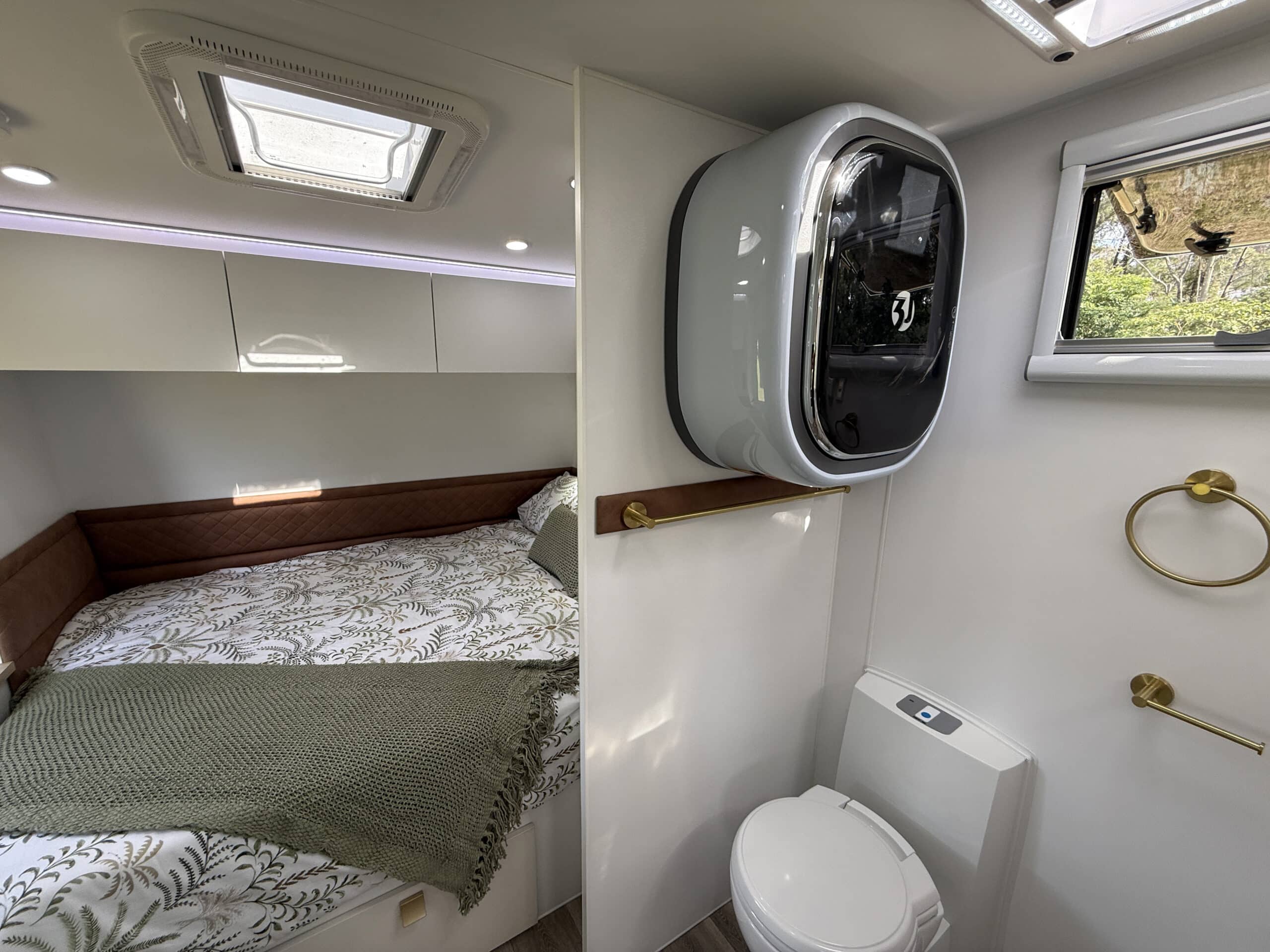

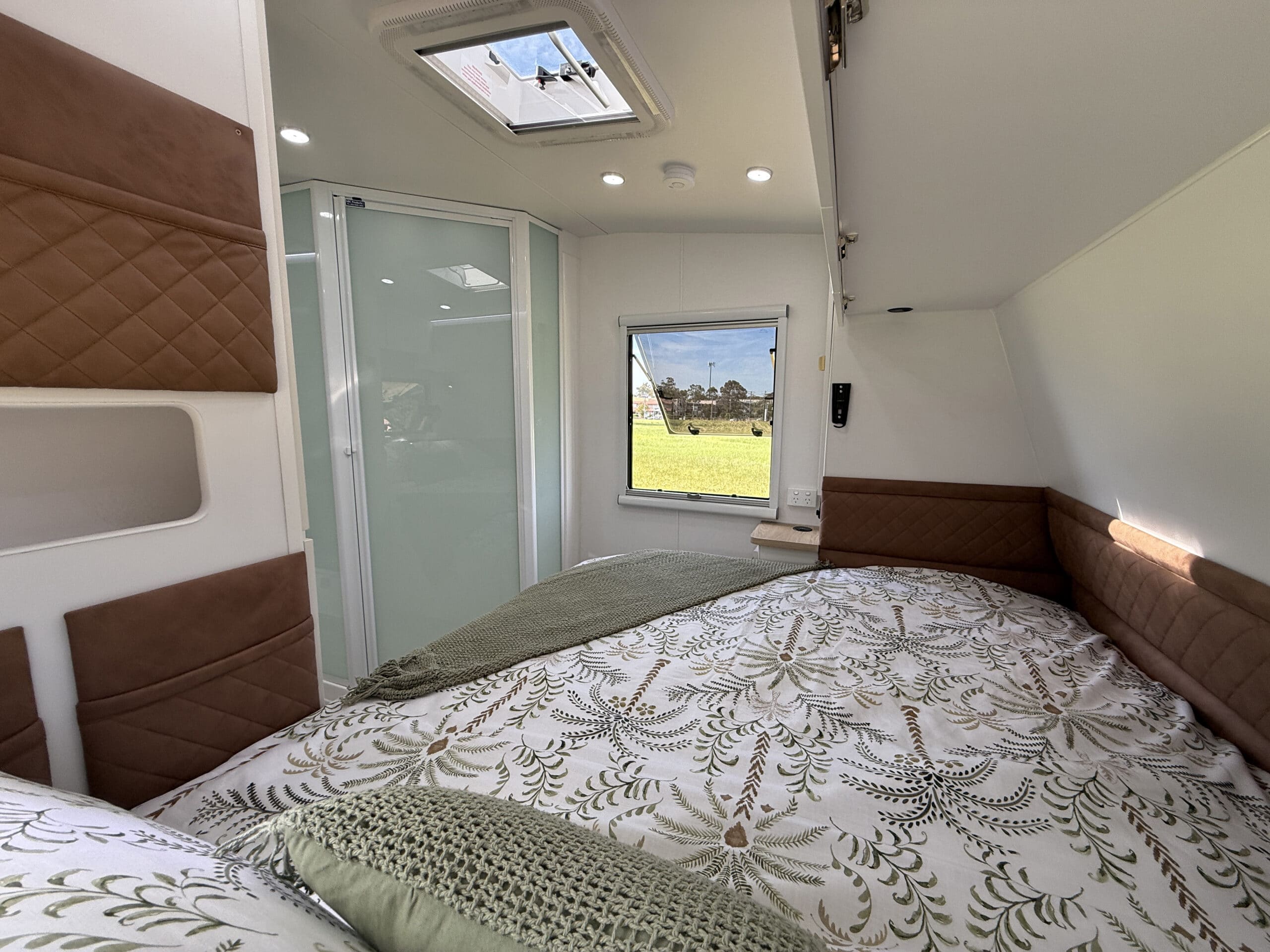

| Internal Features | Central kitchen with Swift fan forced oven and 4 burner cooktop 199L 3 Way fridge / freezer Rear Club Lounge with Nuovo Mapa Table that converts to bed Hawk microwave Queen size East West walk around bed with pillow top mattress Storage drawer under bed Mid caravan ensuite with separate shower and toilet Toilet with Thetford china bowl toilet and vanity One piece moulded shower 3.5Kg front loader washing machine Abundant overhead cabinets with concealed latches 24inch TV with DVD head unit Bluetooth stereo system with internal and external speakers 2 x roof hatches with fans and LED lighting SJRV Flat tinted windows Dometic FreshJet 7 Series Pro A/C 2 x Sirocco fans 12V Dust Reduction System (Choice of Gusto or Carafan Sahara) Feature bulk heads with LED down lights for each overhead cupboard LED Strip lighting internal and on entry step |

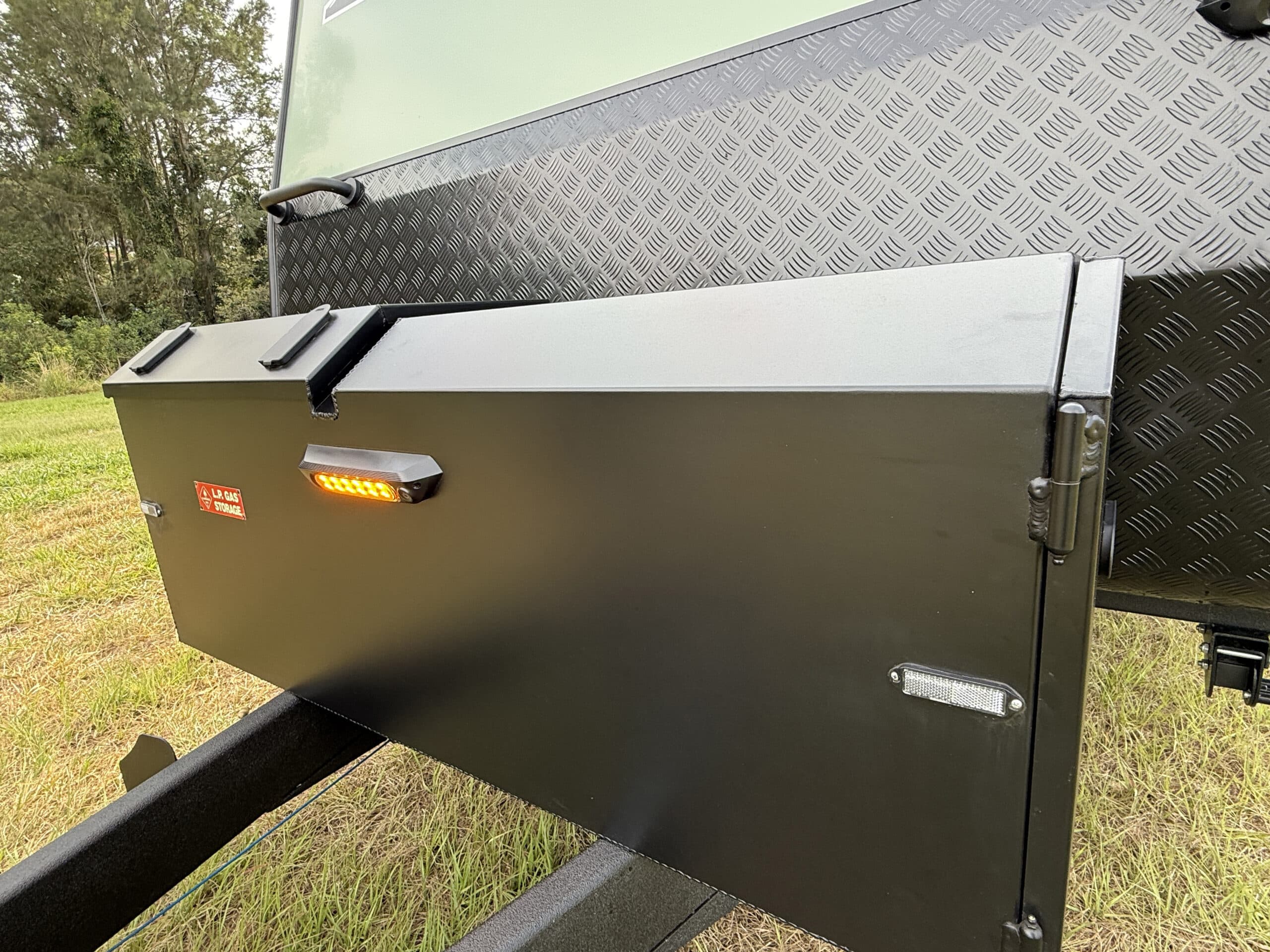

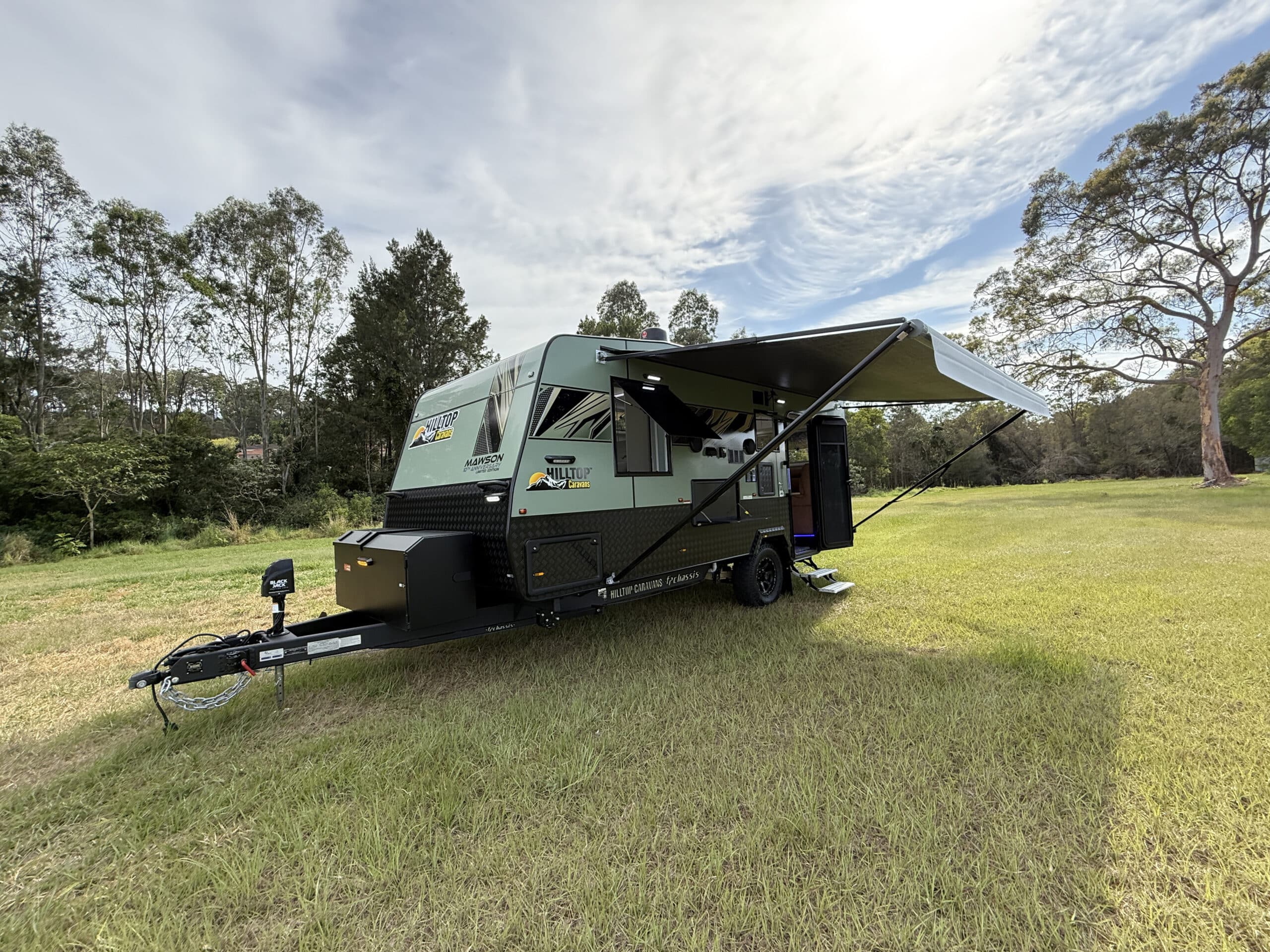

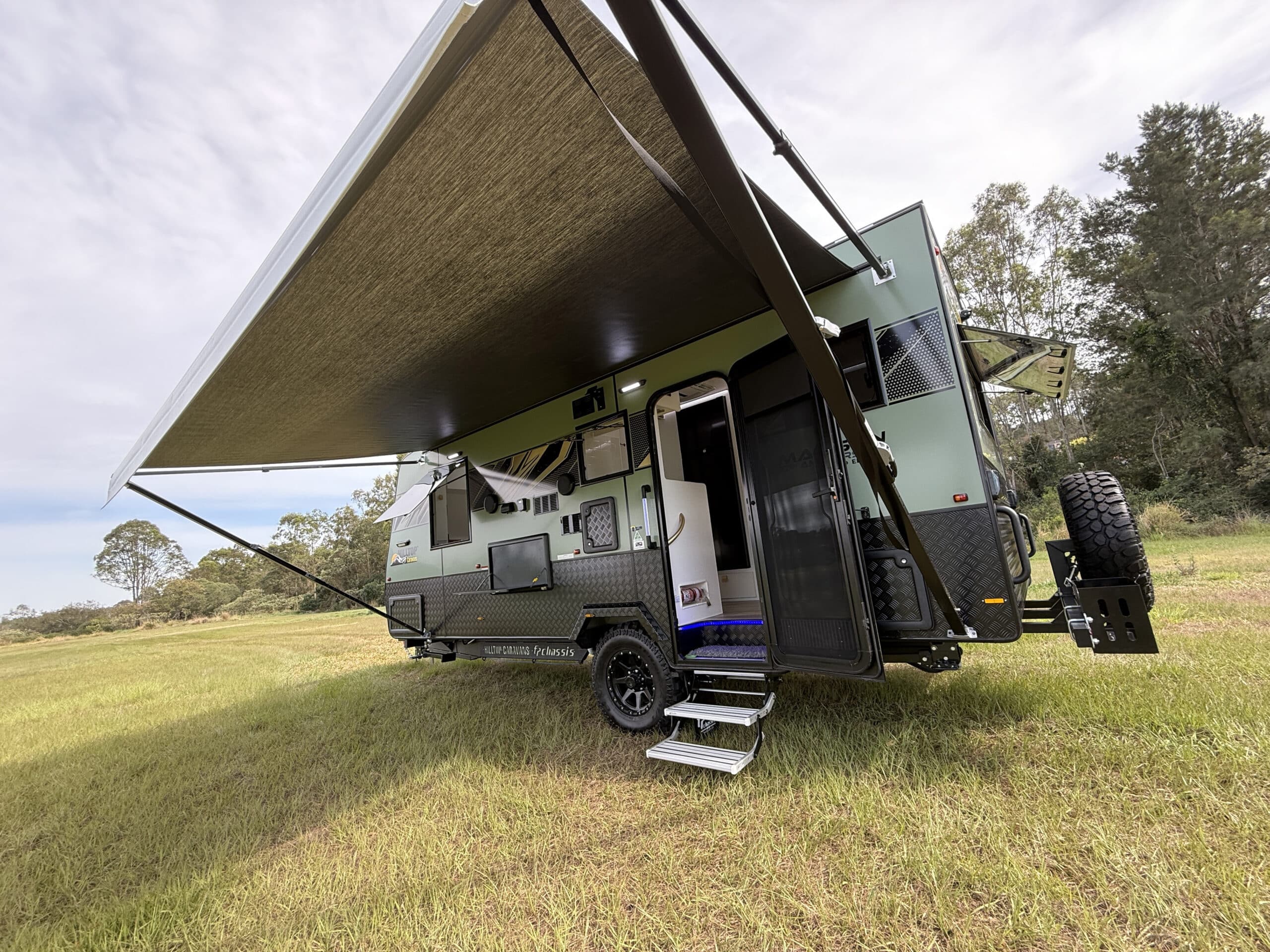

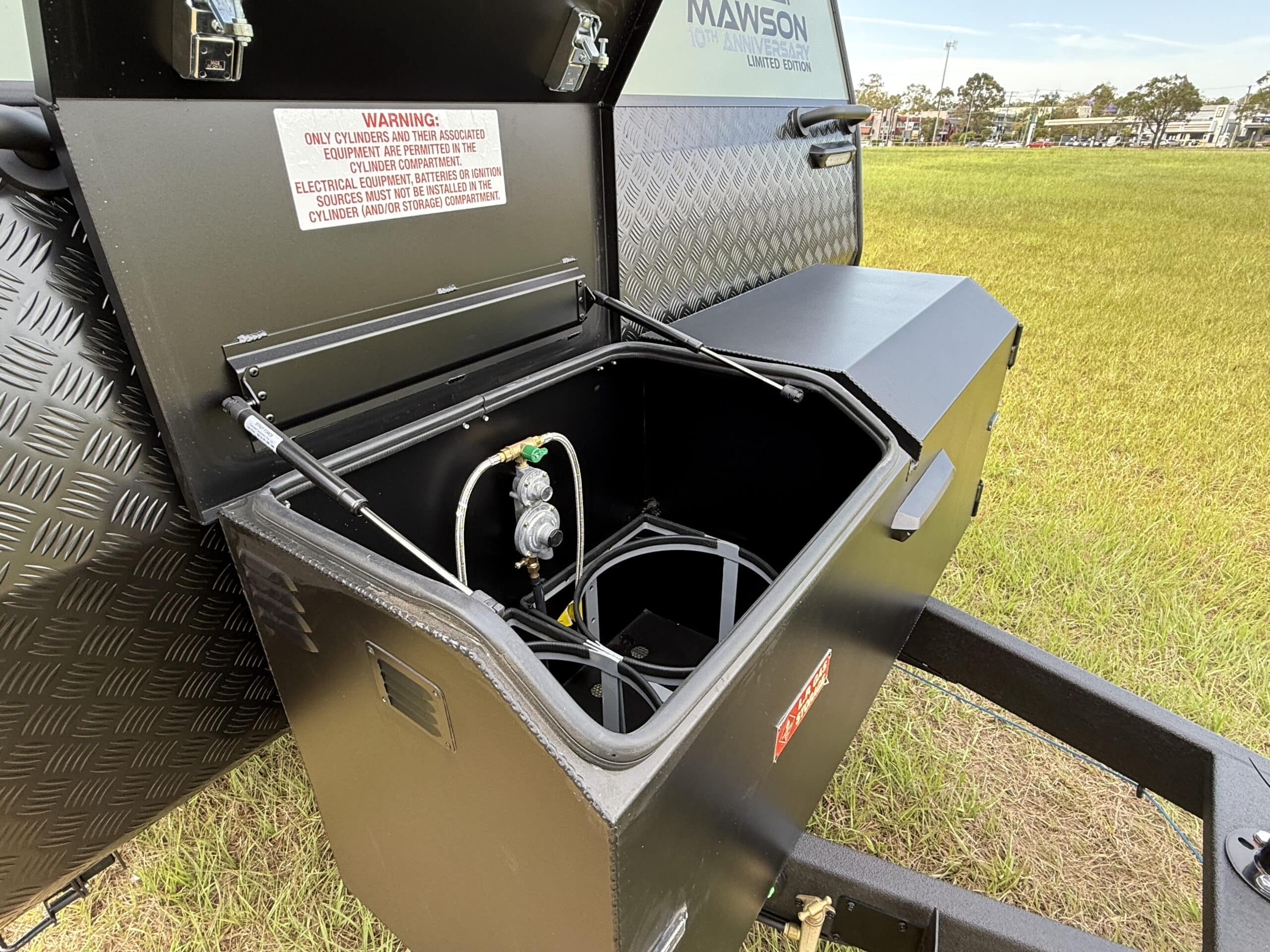

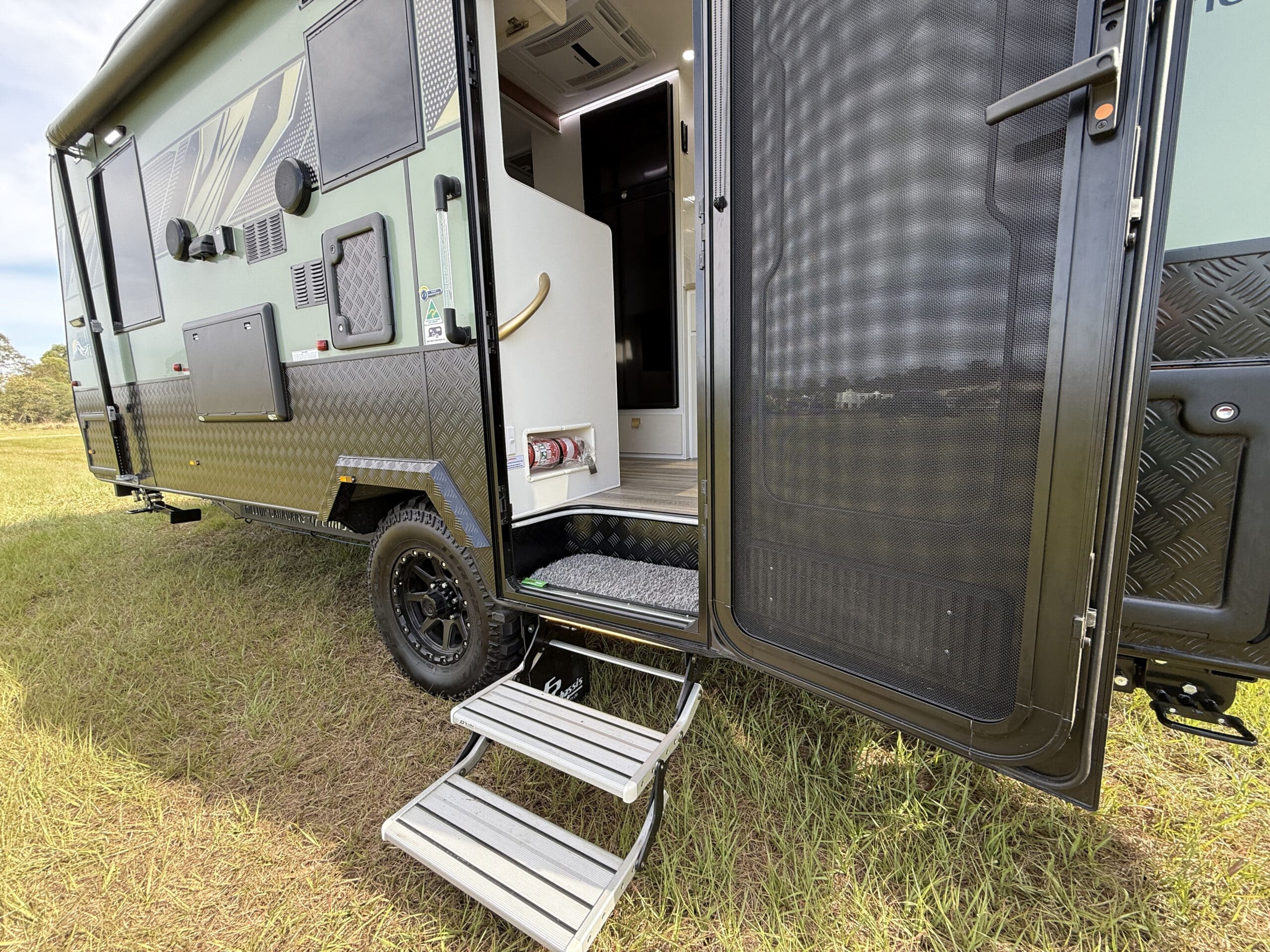

| External Features | Meranti Frame Construction Single piece roof Composite finish with your choice of colours TB13 – Black matte custom toolbox Dometic manual roll out awning Double manual step Extended checker plate on side and front of van Amber / White Annex lights Single spare wheel External TV Hatch Galvanised tunnel boot with internal lighting Safety Dave reversing camera with monitor for your vehicle Gas Bayonet connection |
| On-Roads and Warranty | 12 Months Queensland registration Comprehensive handover at our showroom 5 year structural warranty |
| After Sales Service | We encourage you to explore Hilltop Caravans and Set Up Camp RV Centre online. Both brands are backed by a long-standing reputation for exceptional after-sales service — a commitment reflected in our outstanding Google rating. We would love to have you join the Set Up Camp and Hilltop Caravan family. |
