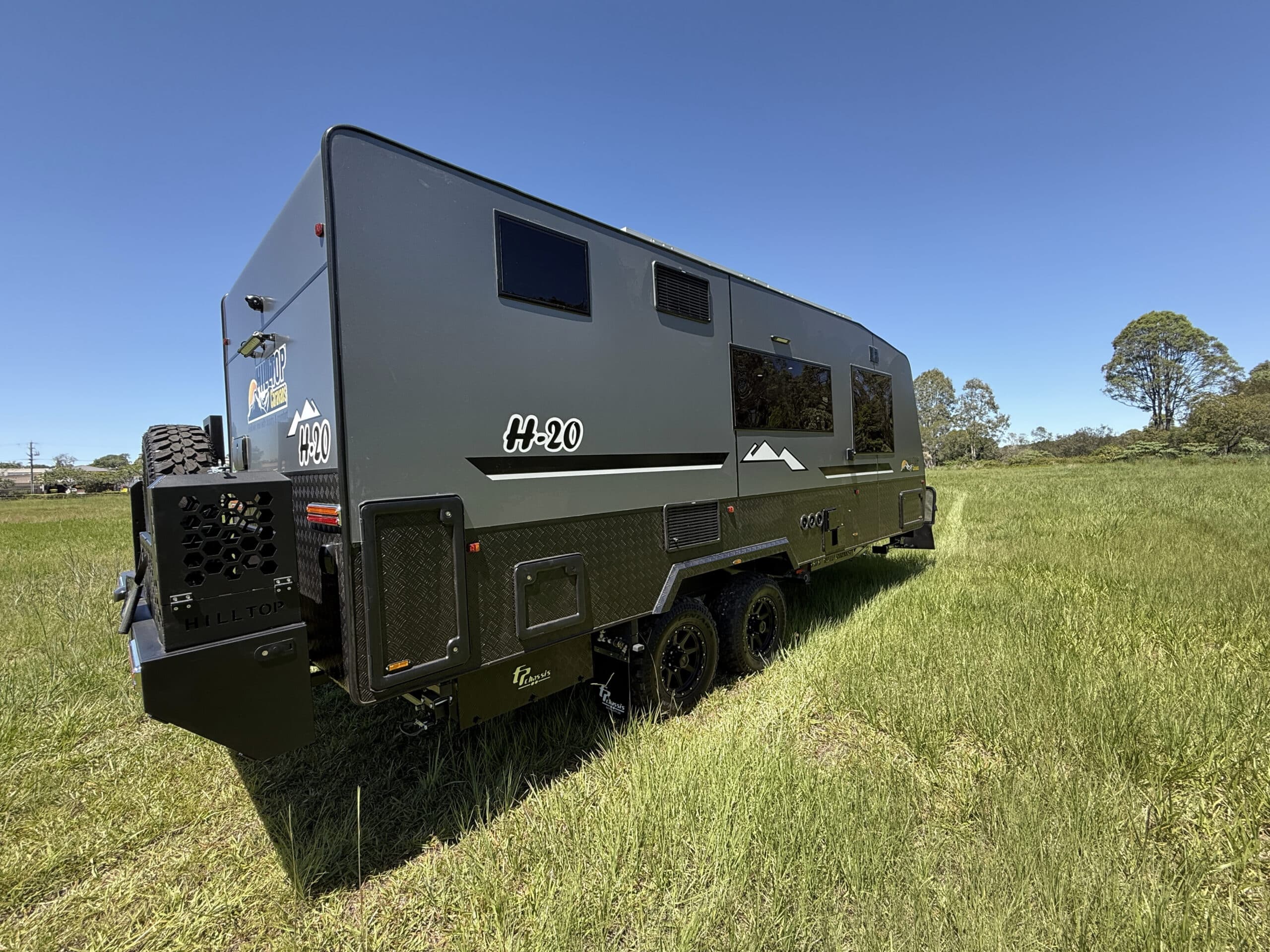

HILLTOP H20
20’6 MID DOOR ALL TERRAIN Caravan
BECauSE THE BEST PLACES AREN’T ALWAYS ACCESSIBLE BY SEALED ROADS
Based on the Hotham Peak, the H20 is a true off road and off grid ready beast
2026 SPEC NOW RELEASED
Standard Inclusions:
600W Solar
314Ah Lithium Battery
2600W Inverter
Battery management system
12V Dust reduction system
Compressor Fridge / Freezer

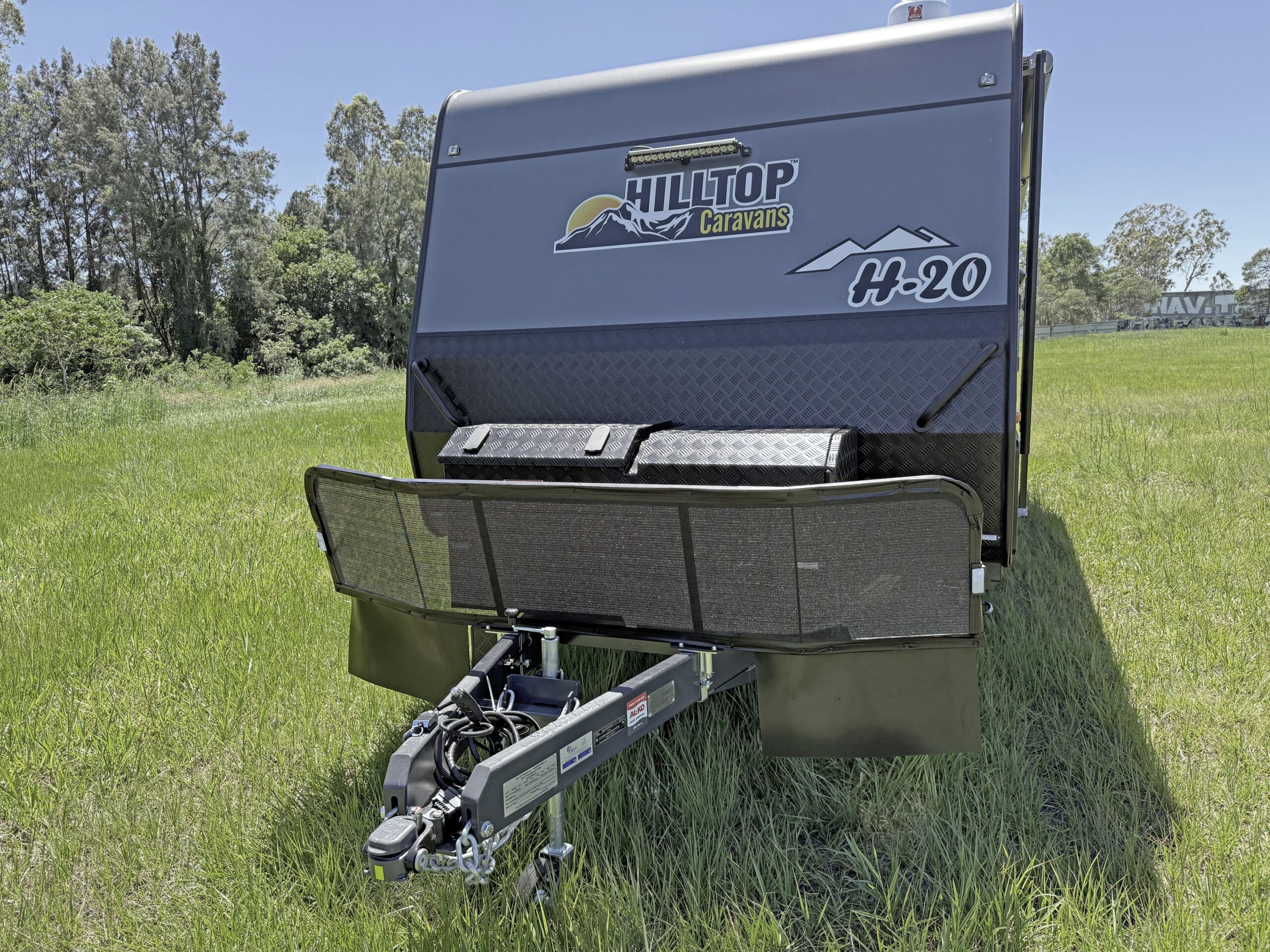

Extended A frame

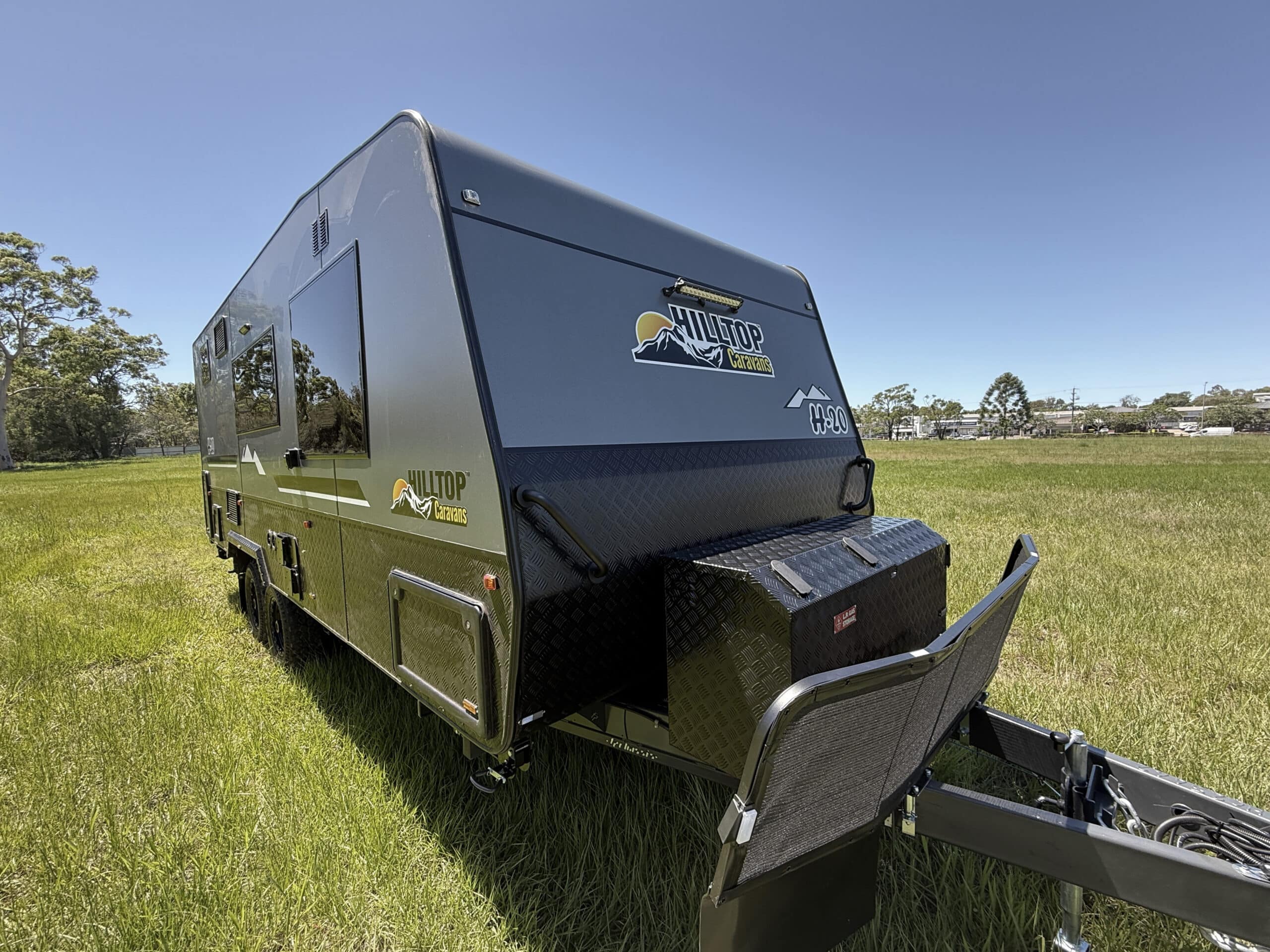

Large front Toolbox
Rear toolbox with storage
Checker plate pipe protection
Flat tinted windows
+ much more…
WANT TO EXPLORE IN PERSON?
Book a private demo with our team in person to see it for yourself.
NOTE: IMAGES SHOWN MAY INCLUDE UPGRADES THAT VARY FROM DESCRIPTION
Specifications & Features
2026 Specs
| Dimensions | Body Length: 20’6 Overall Length: 8800mm Width: 2400mm Height: 3200mm TARE: 2900Kg ATM: 3500Kg Ball: 240Kg *All weights and dimensions are approximate only |

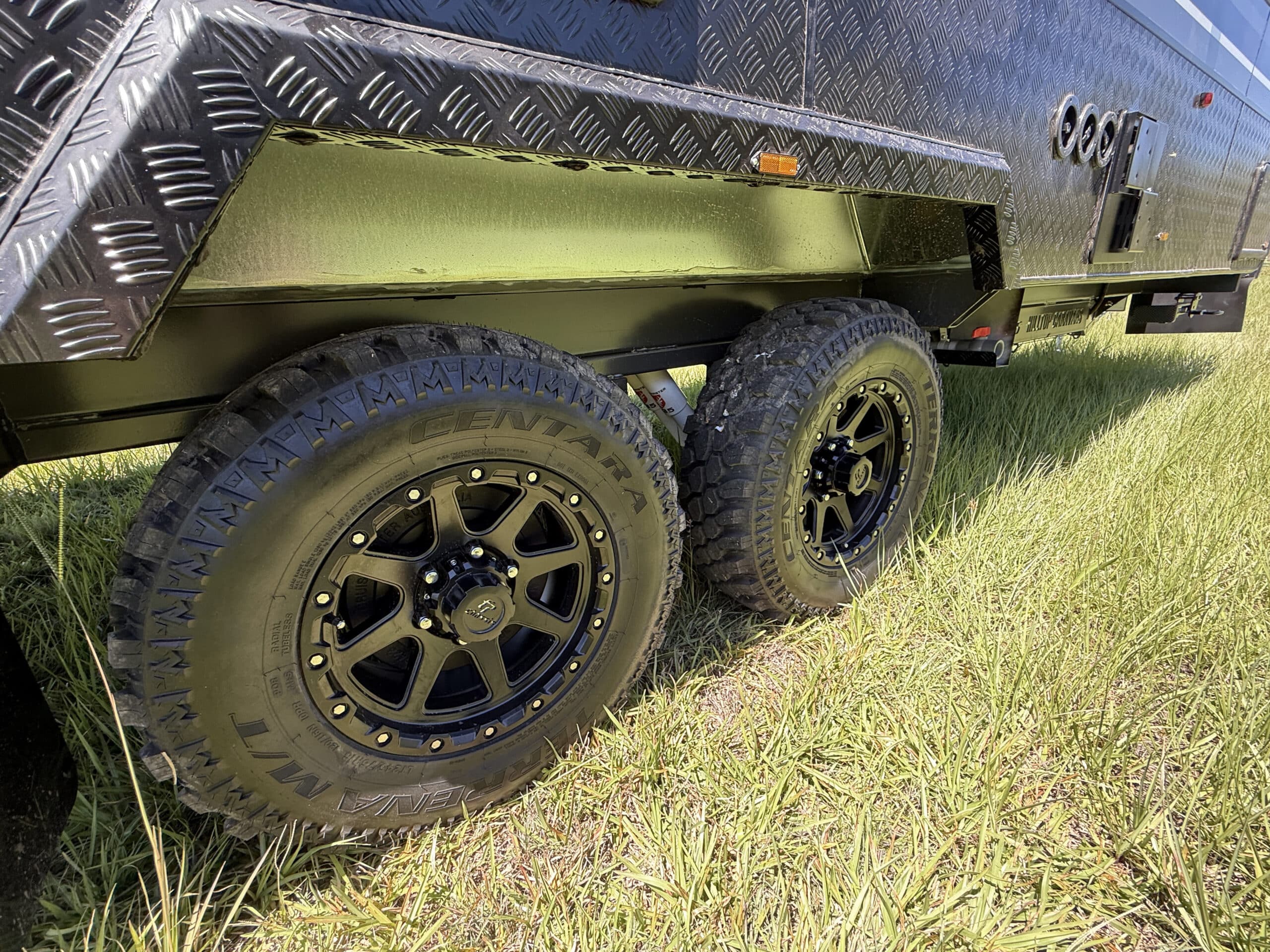

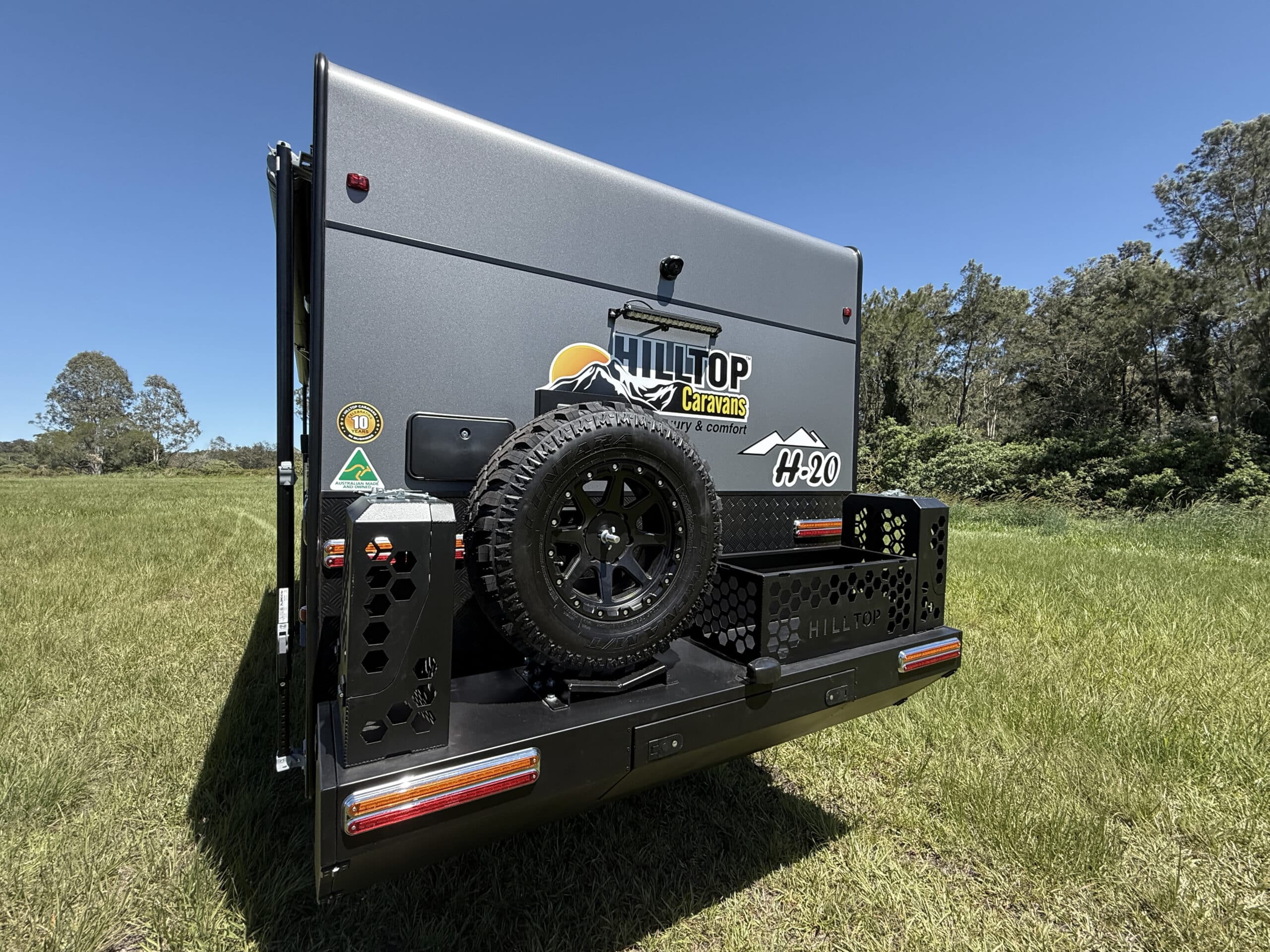

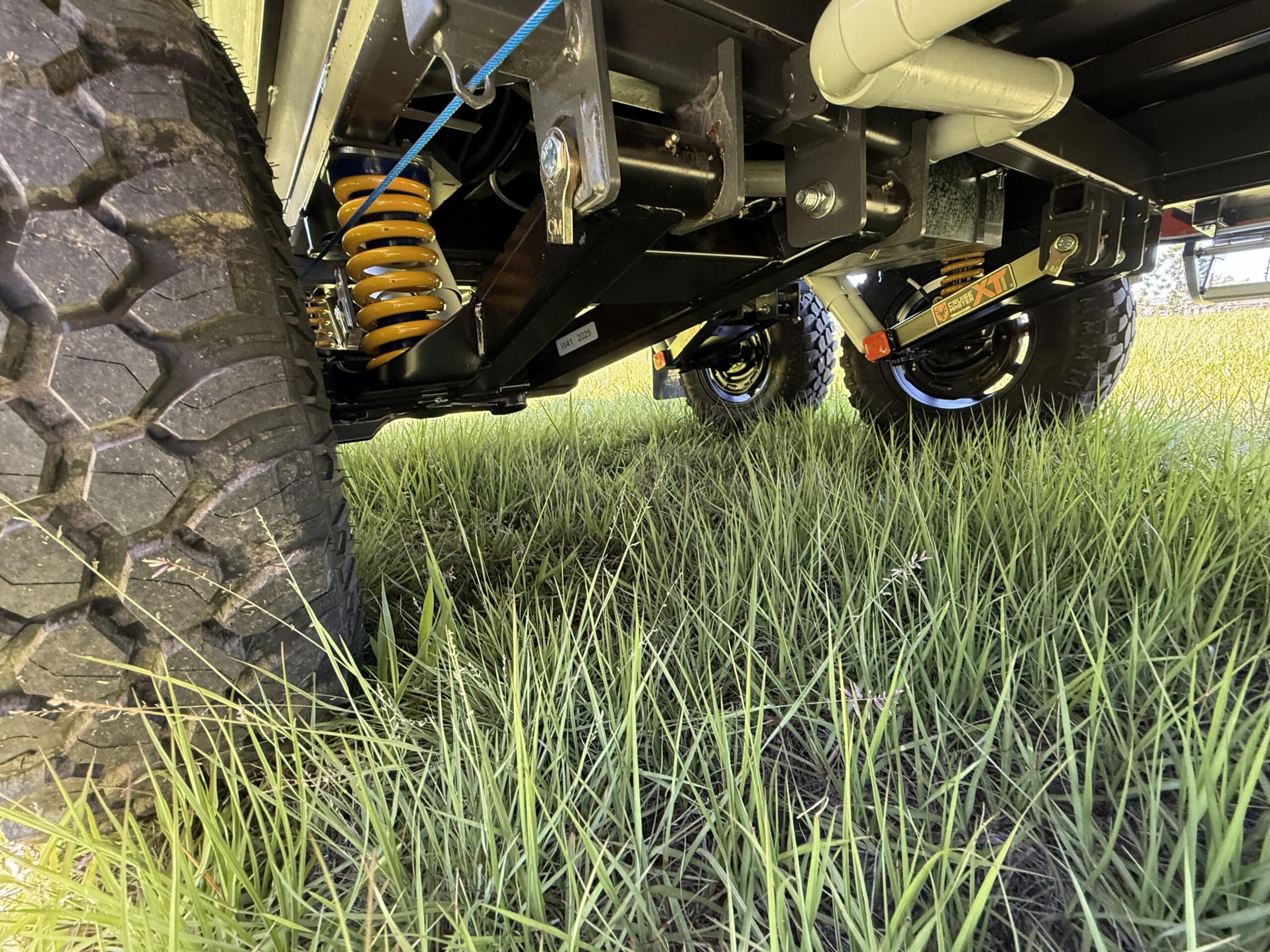

| Chassis and Suspension | 6″Australian steel chassis Cruisemaster XT 3.5 Tonne Independent Suspension Extended A Frame Alko Sway Control (Dexter) Cruisemaster DO35 Hitch 16″ Wheels with BLACK BEAR Mud Tyres Checker plate protection for pipes under van 2 Arm bumper with 1 spare wheel and jerry can holder |

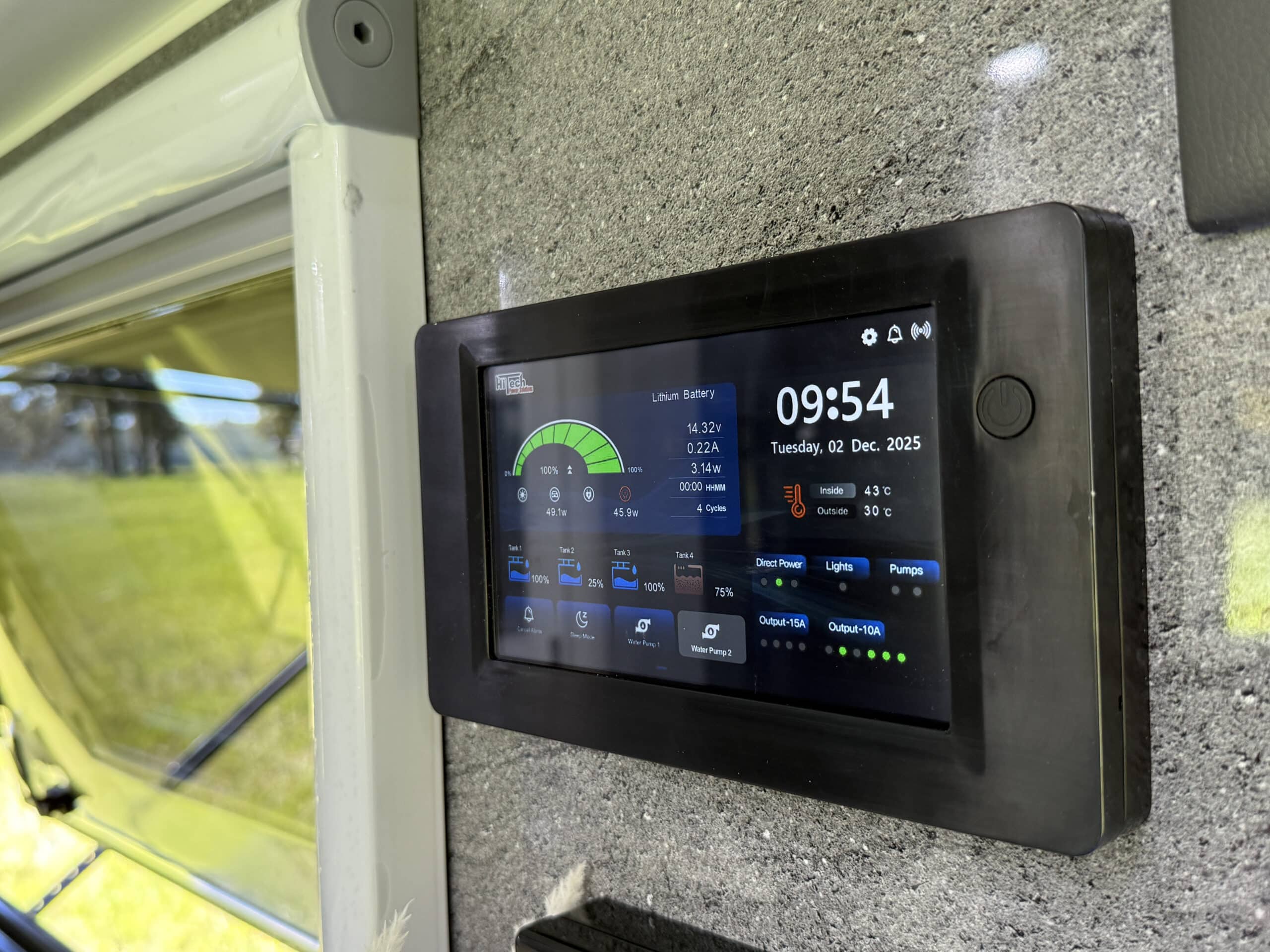

| Electrical | Hi-Tech battery management with touch screen 600W of solar (3 x 200W solar panels) 1 x 314Amp Lithium battery with additional battery box for future expansion 2600W inverter wired to all points 3 in One Charger – Includes DCDC Charger, MPPT Controller and ACDC Charger |
| Water | 1 x 110ltr fresh water tank plus 2 x 60L water tanks (total 230L) 110L Grey water tank All in one water filter (Installed under kitchen sink) 3 x separate fill points for water tanks 28ltr Swift hot water service Grey water hose |

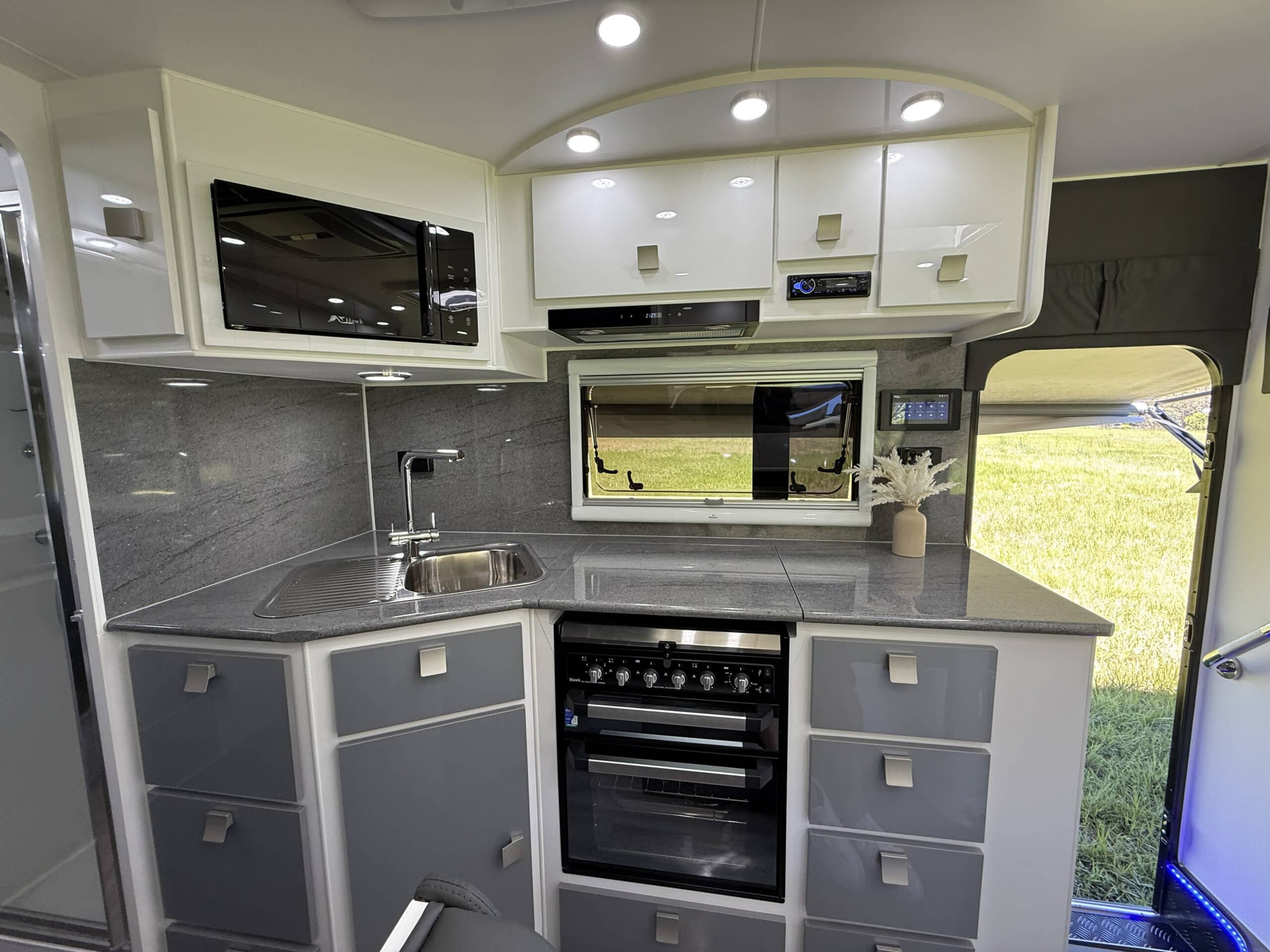

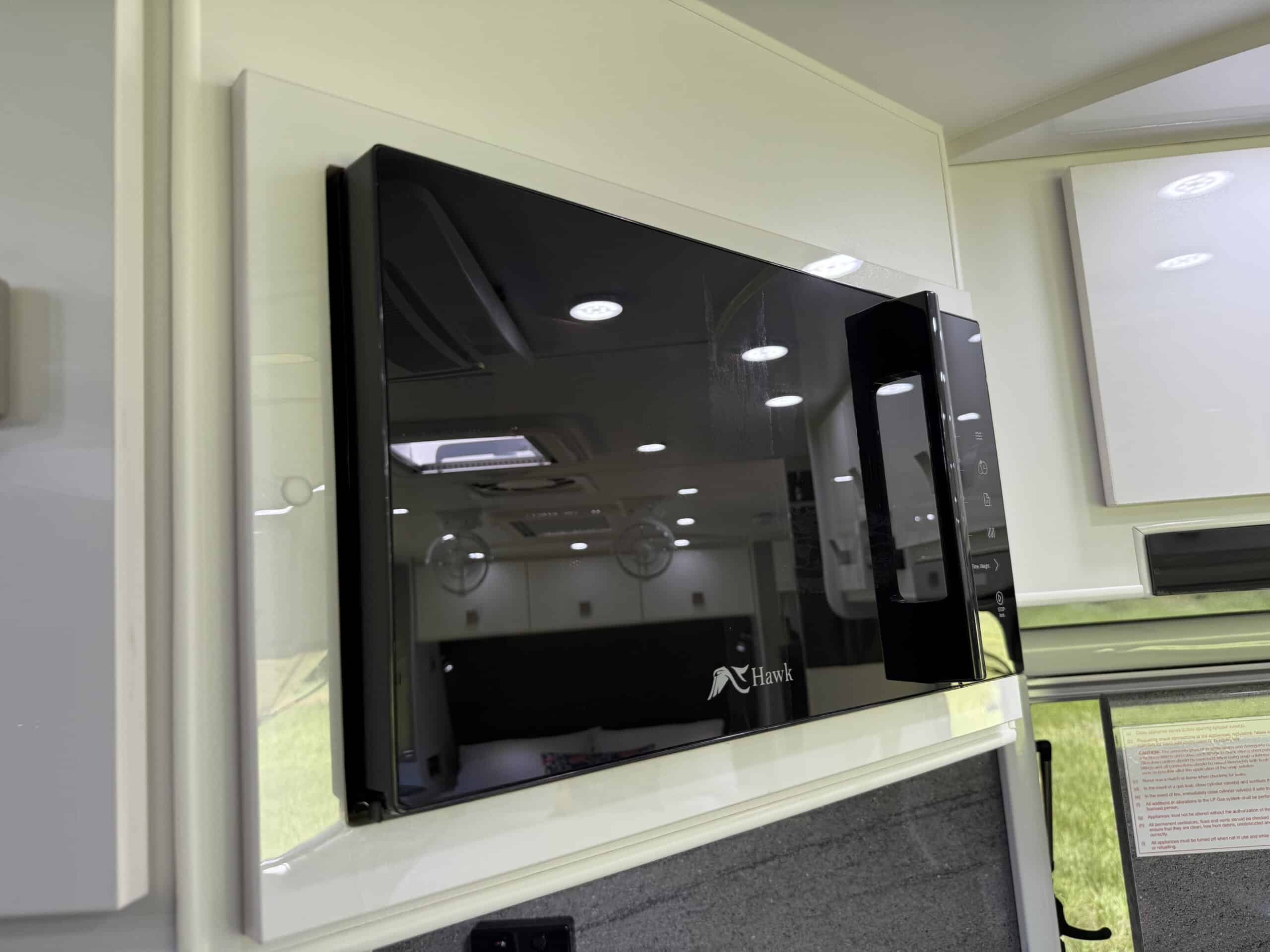

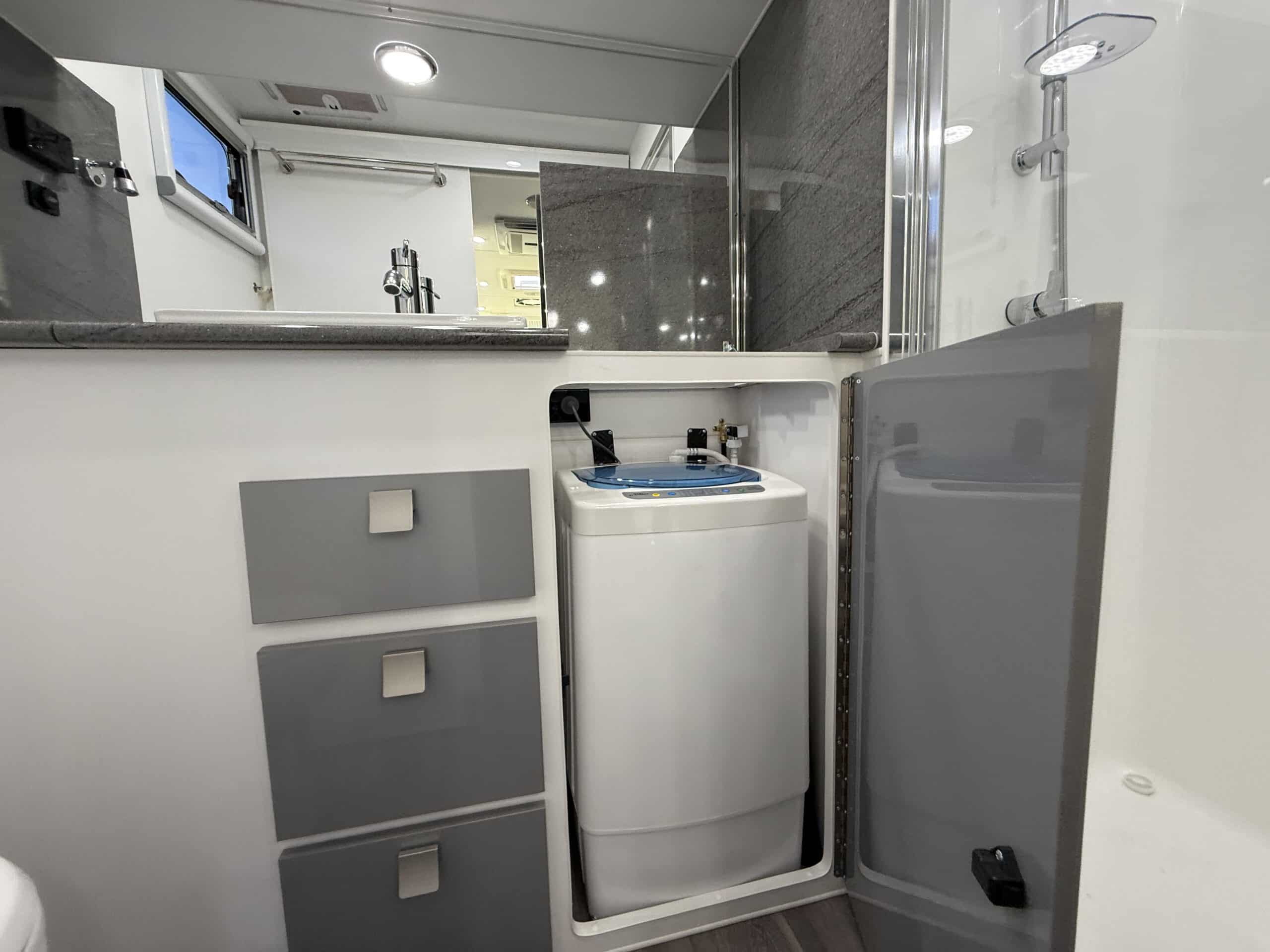

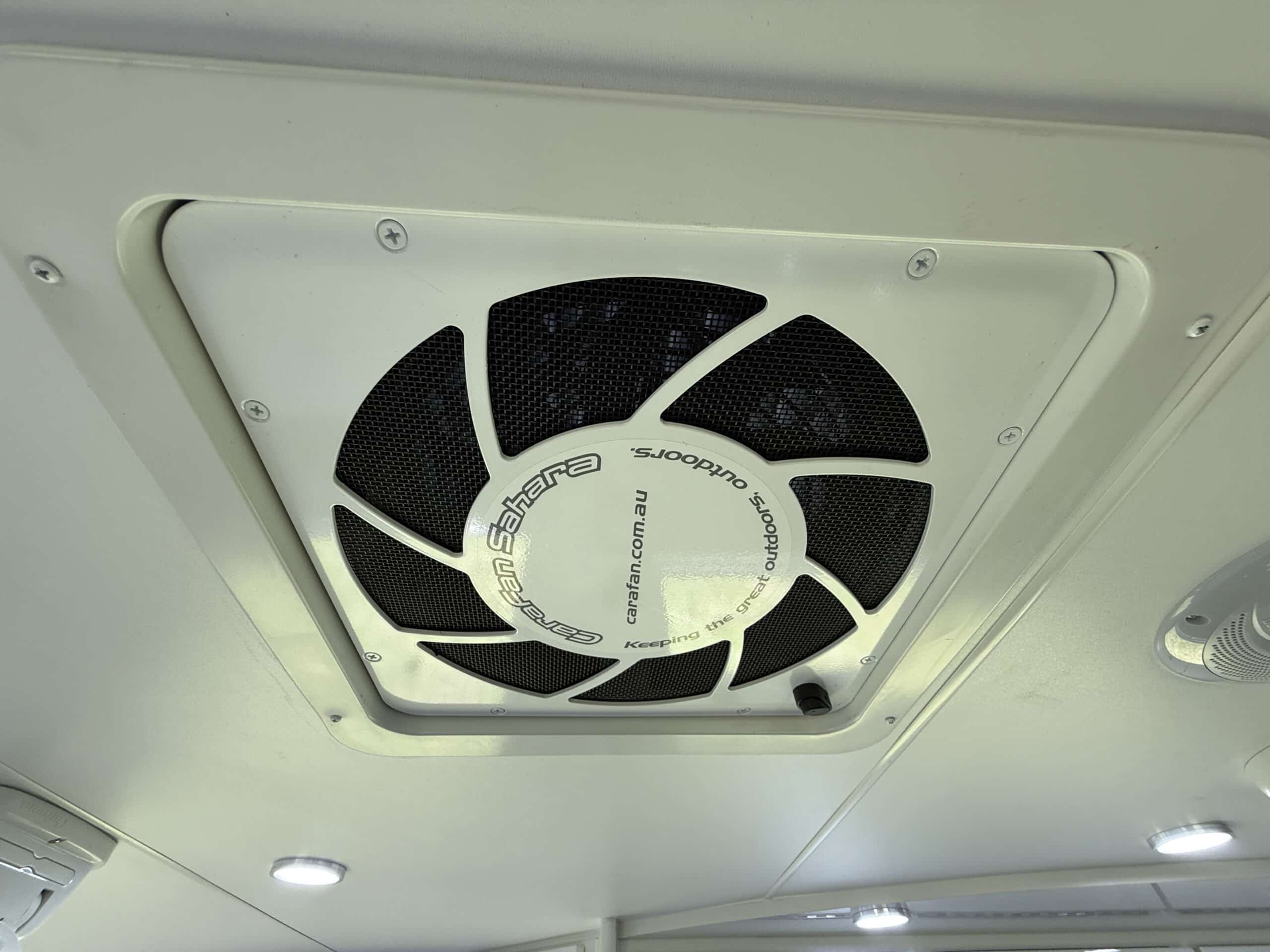

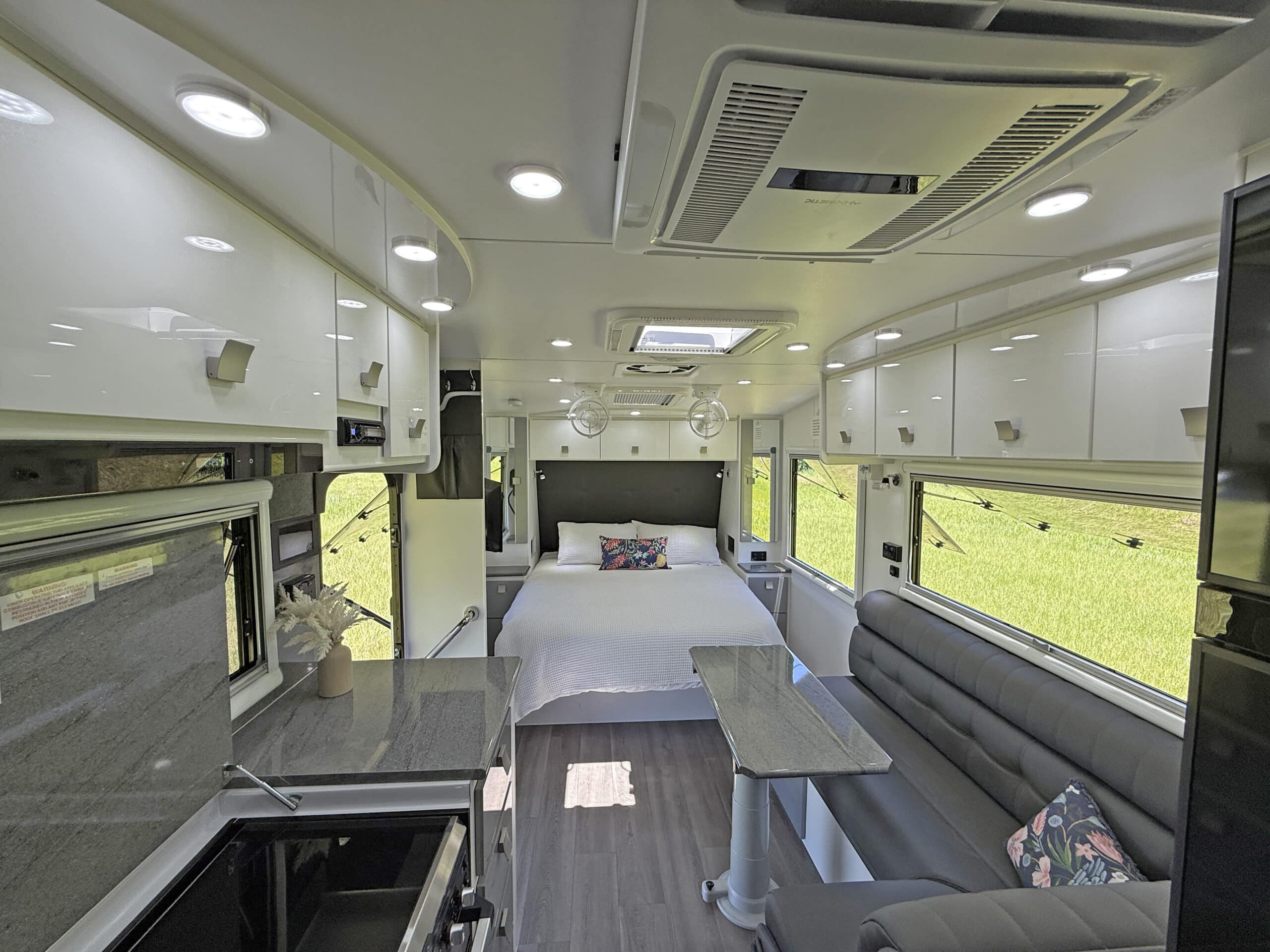

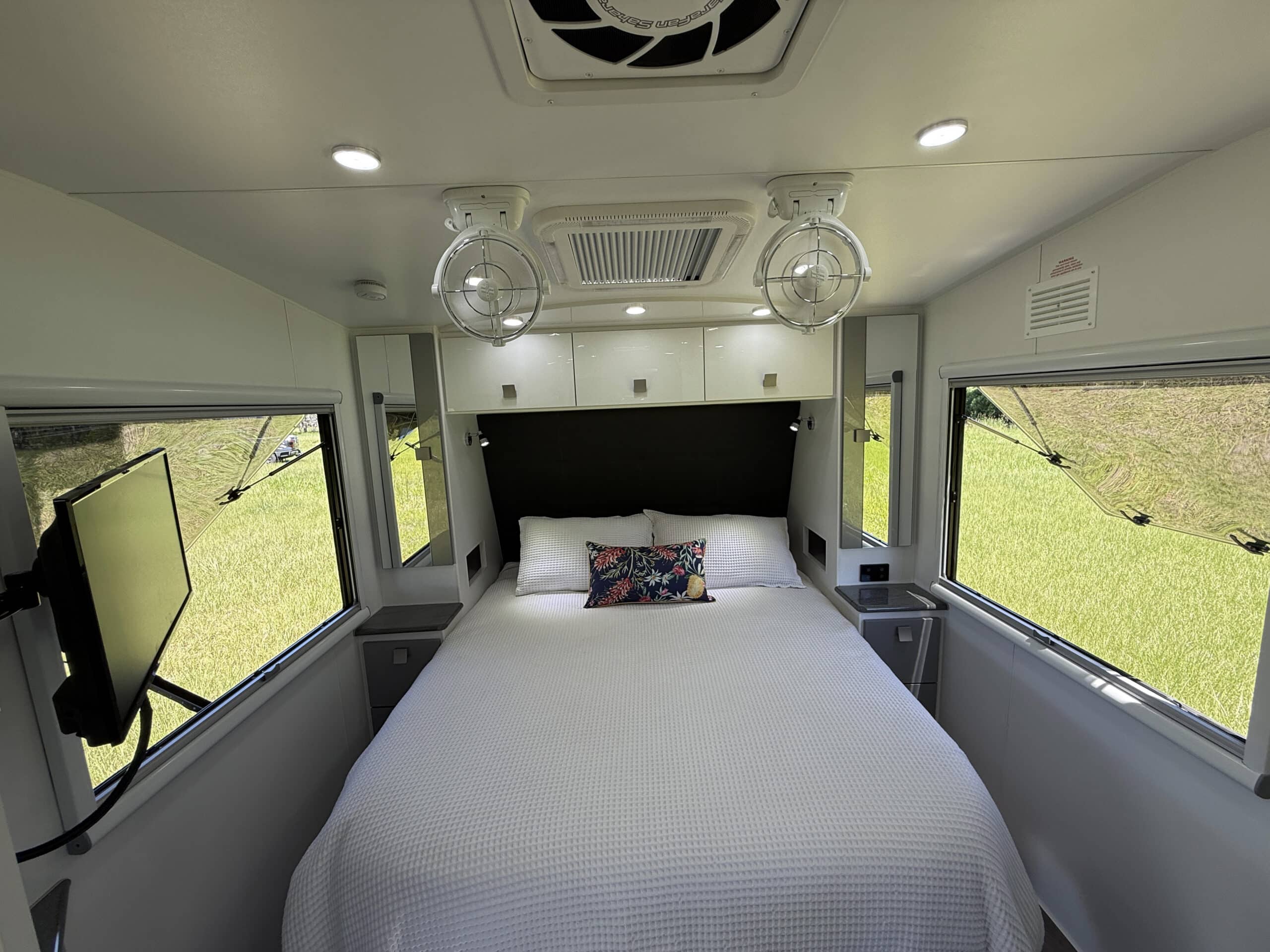

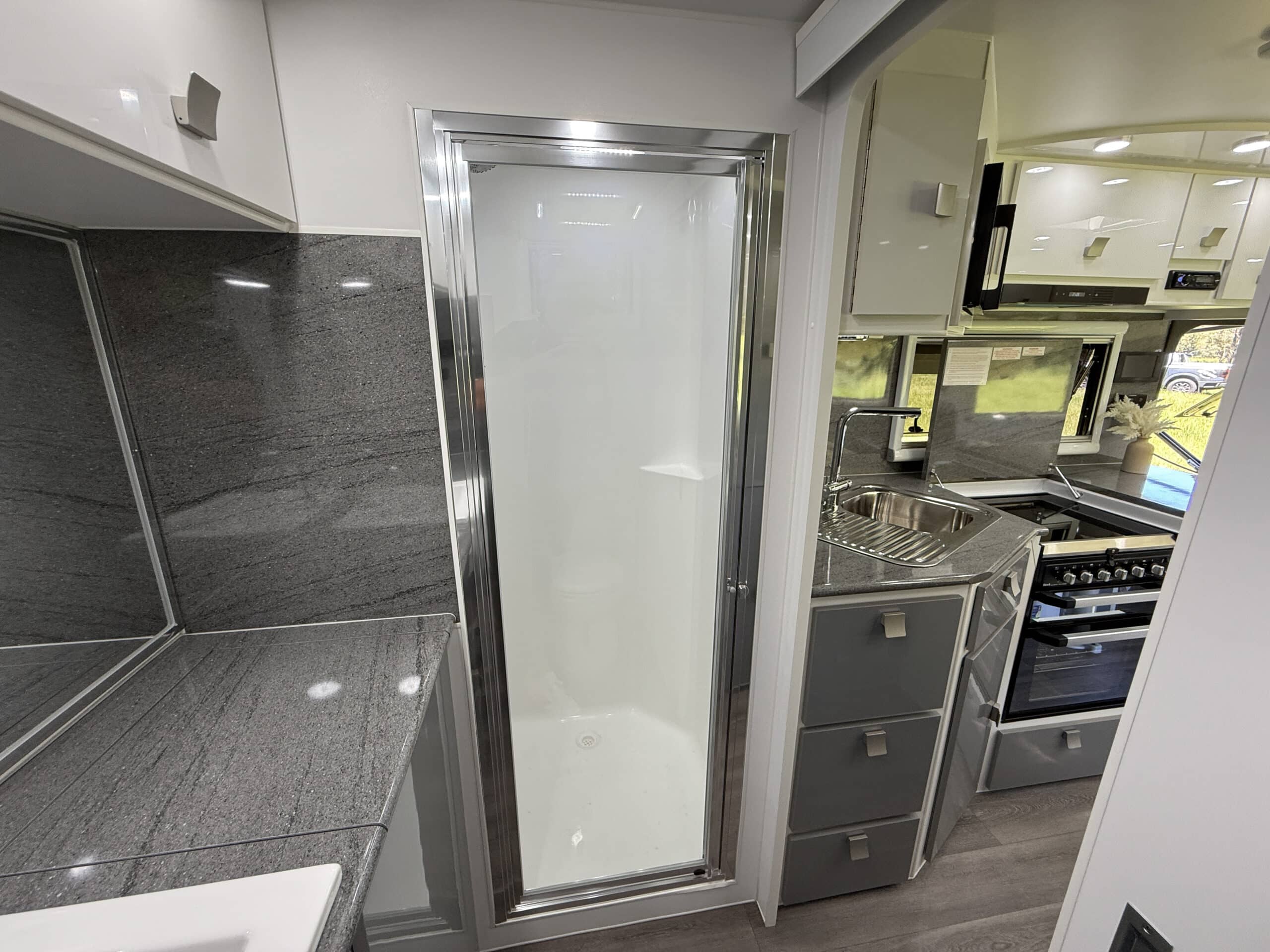

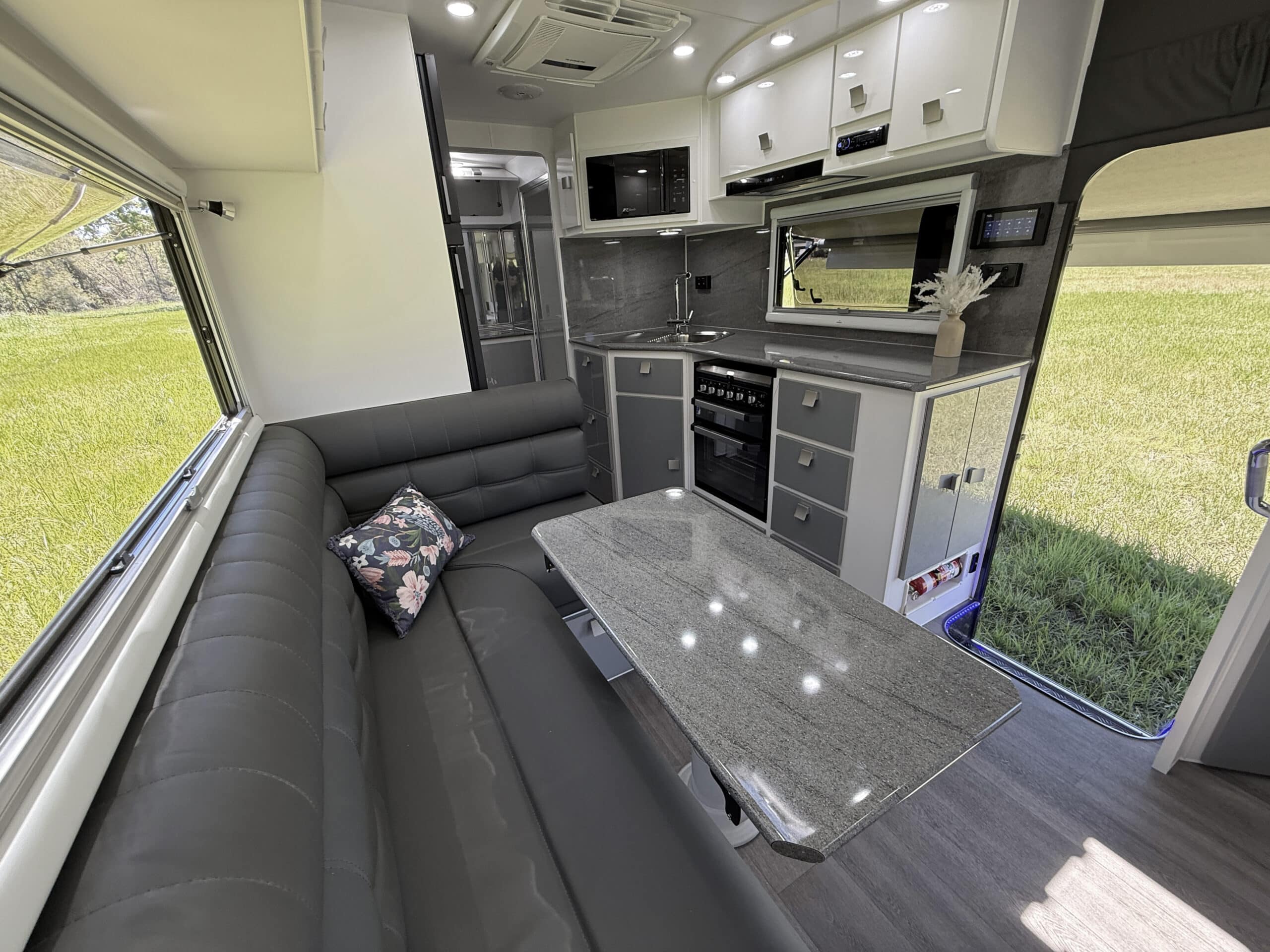

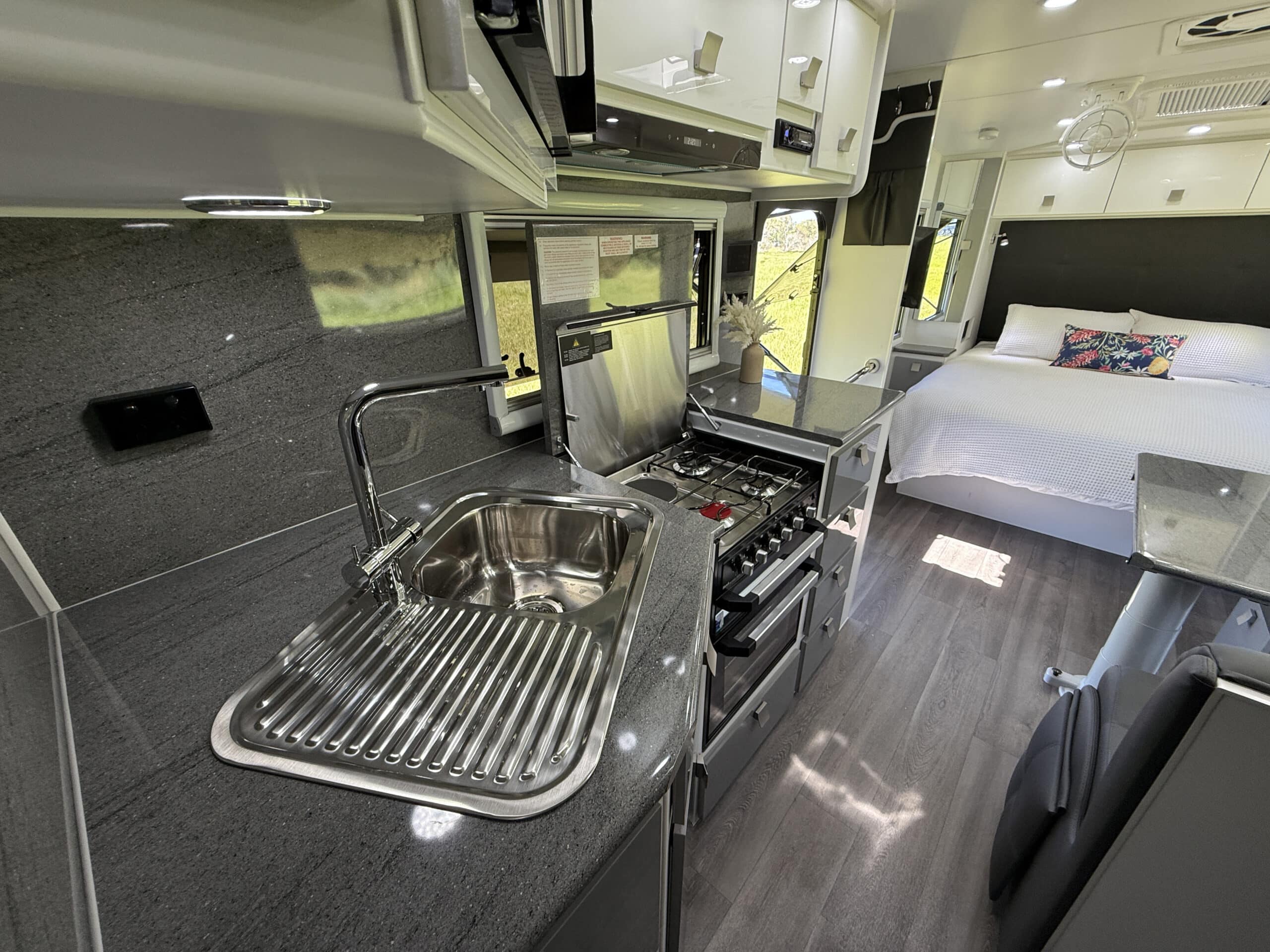

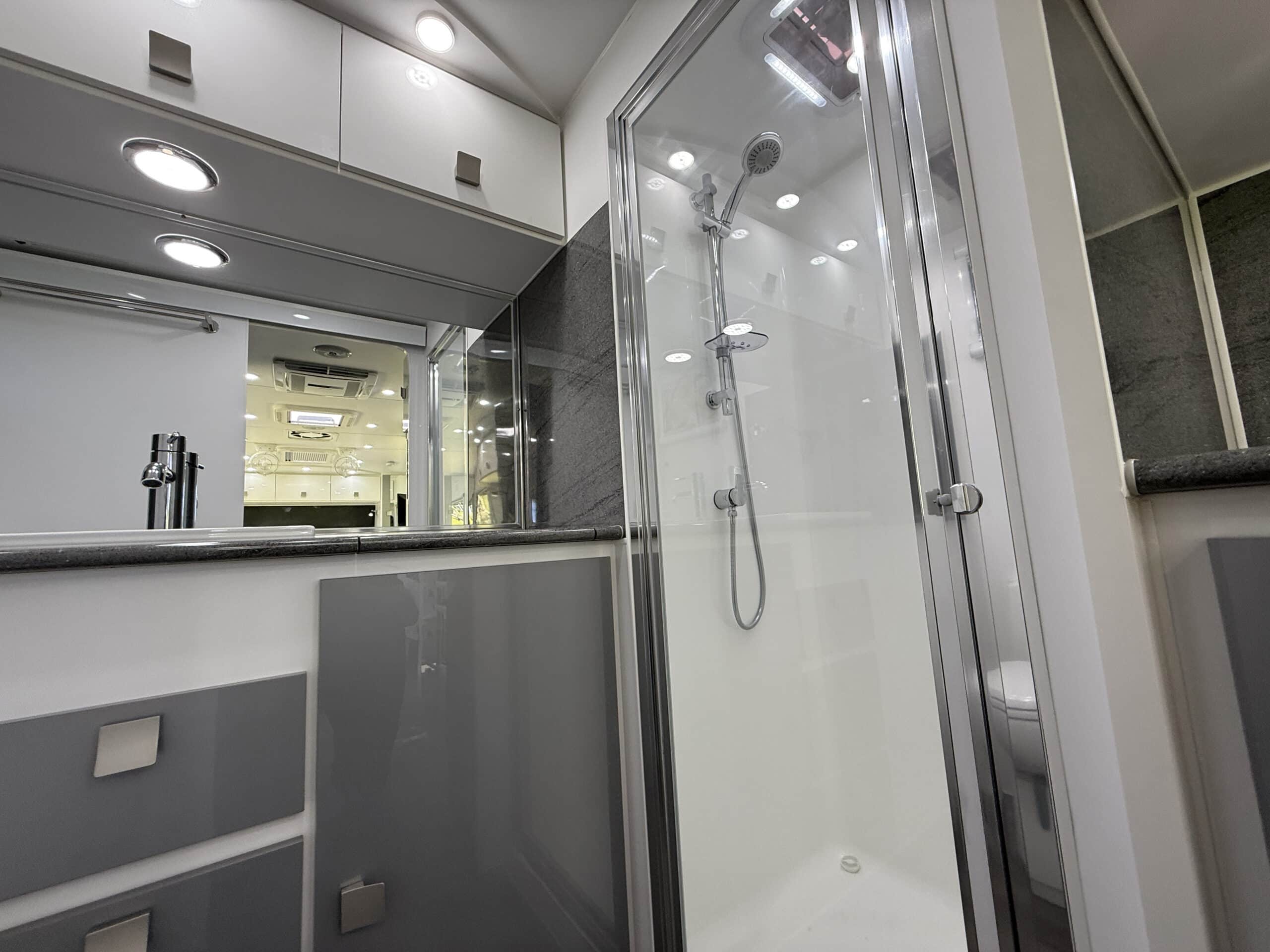

| Internal Features | Full kitchen including Swift fan forced oven and 4 burner cooktop 199L Compressor fridge / freezer Full height pantry with slide out wire shelves ‘L’ shape lounge or cafe seating Hawk multi-function microwave / convection oven, air fryer and grill All in one water filter Queen size island bed with pillow top mattress Storage under bed Dual hanging robes with Mirrored doors plus overhead cabinets over bed 24inch Smart TV Bluetooth stereo system with internal and external speakers Full width rear bathroom with Thetford china bowl toilet One piece moulded shower 3.5Kg top loader washing machine Overhead cabinets 2 x roof hatches with fans and LED lighting Concealed latches on upper cabinets Euro style flat tinted windows Dometic FreshJet 7 Series Pro A/C 12V Dust Reduction System – Choice of Gusto or Carafan 2 x Sirocco fans Feature bulk heads with LED down lights for each overhead cupboard LED Strip lighting internal and on entry step |

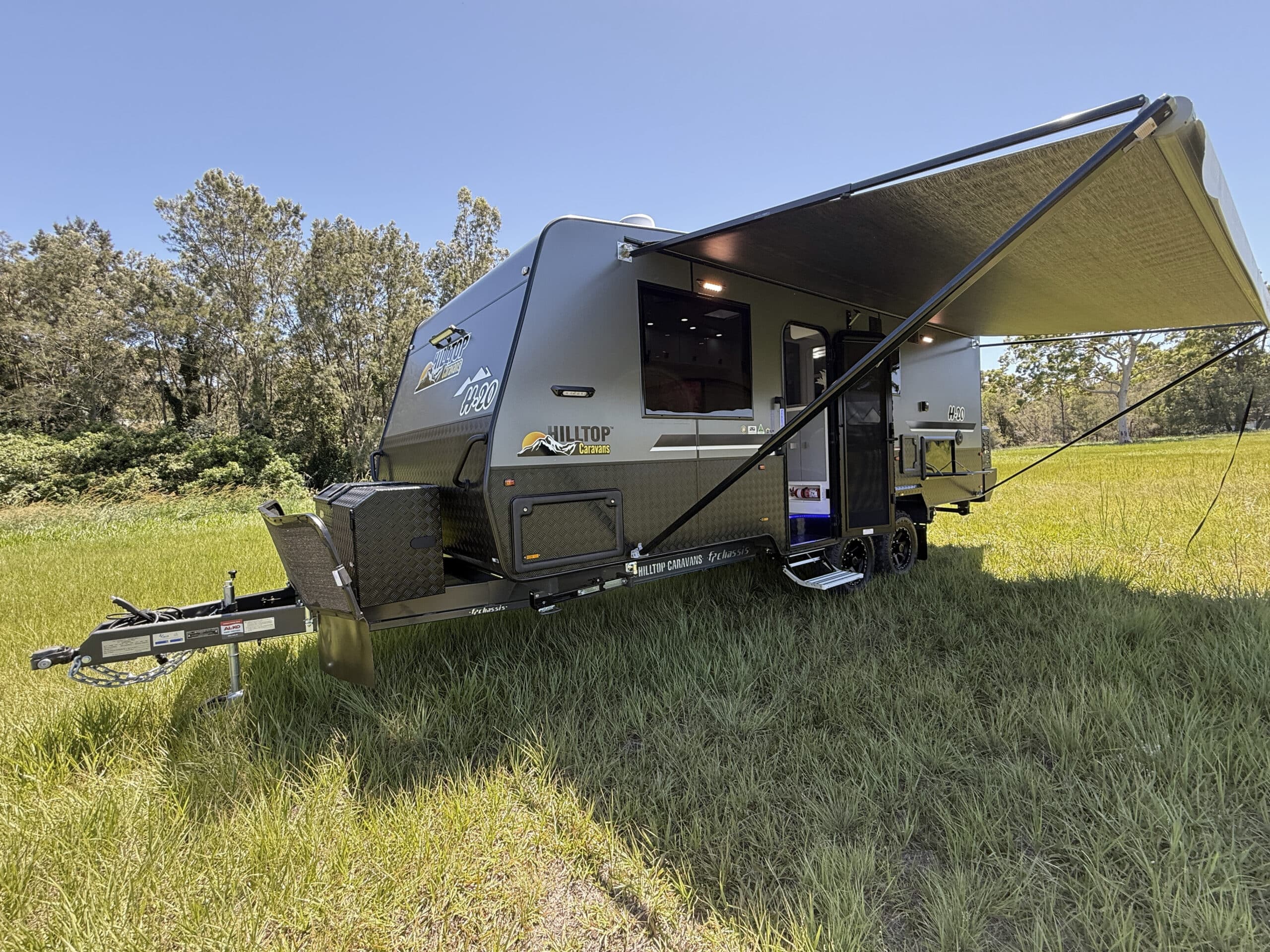

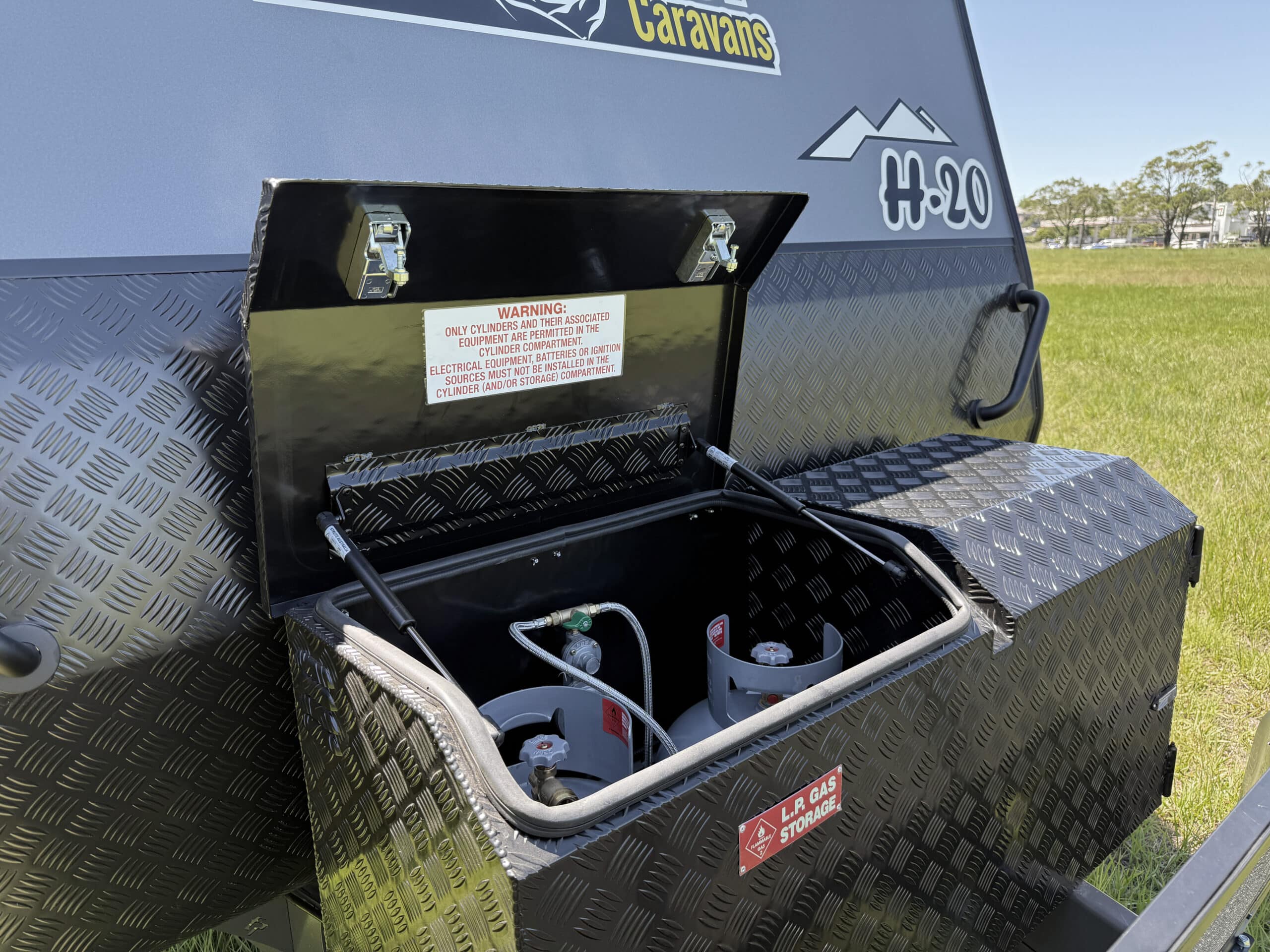

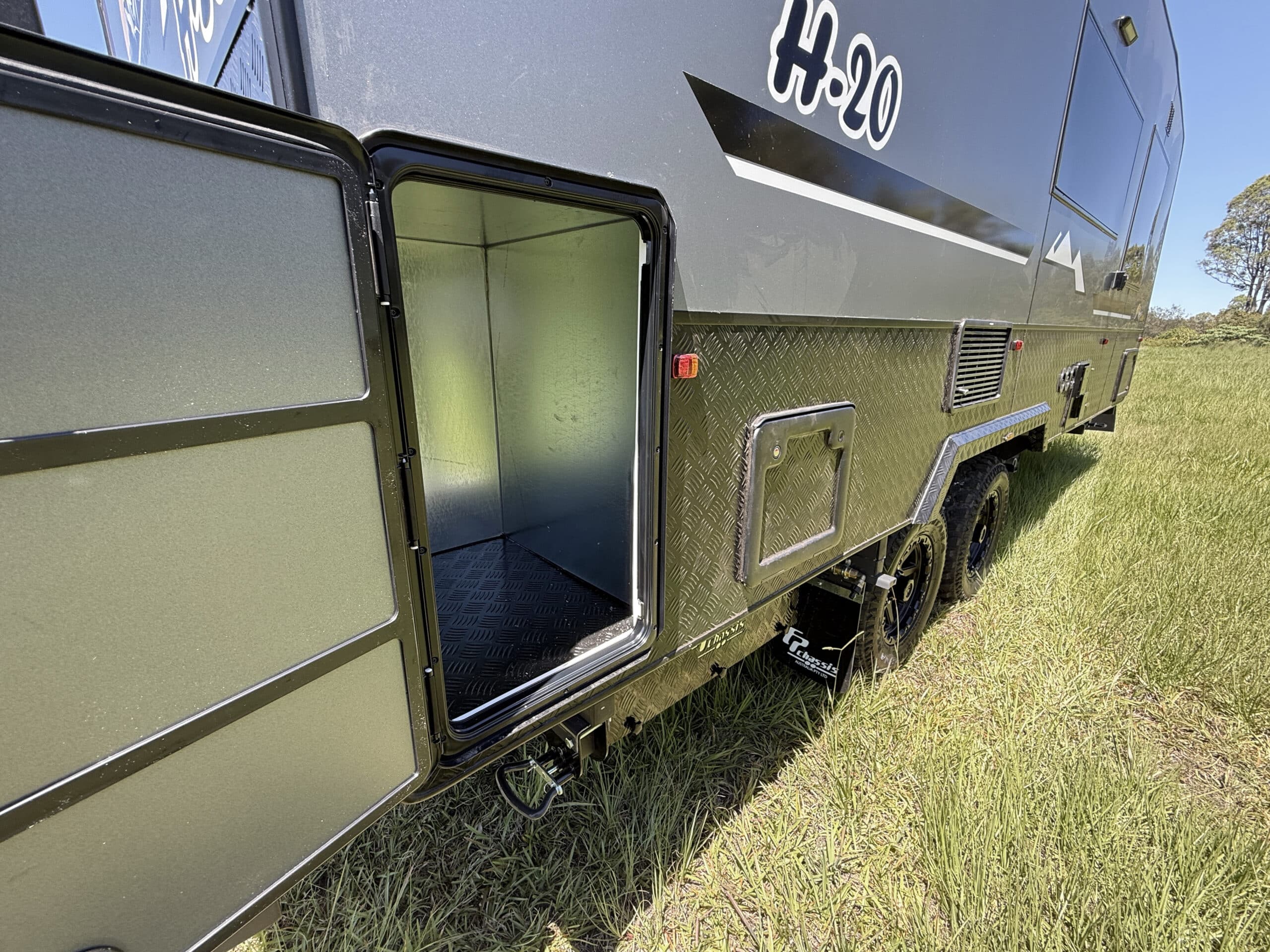

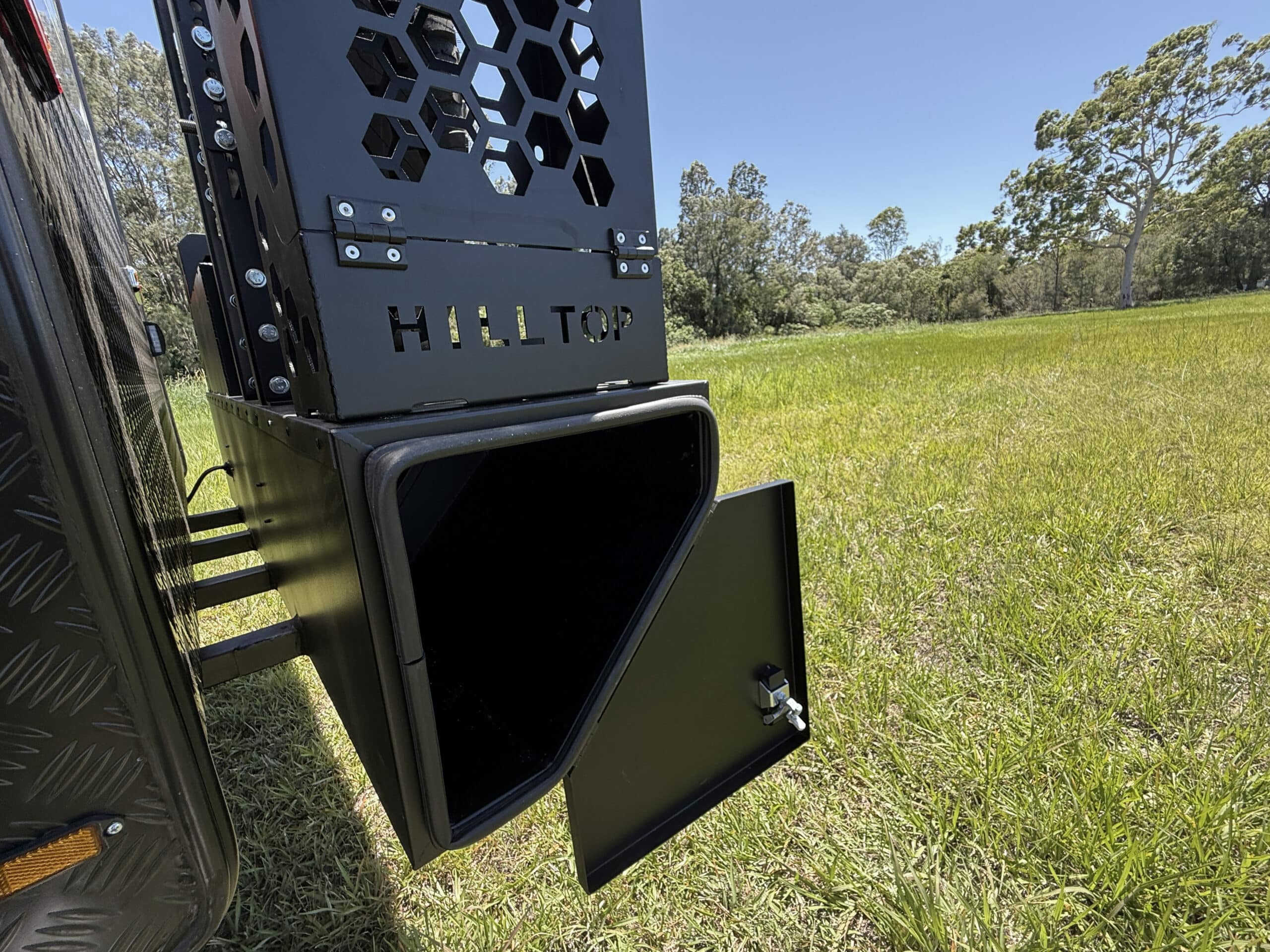

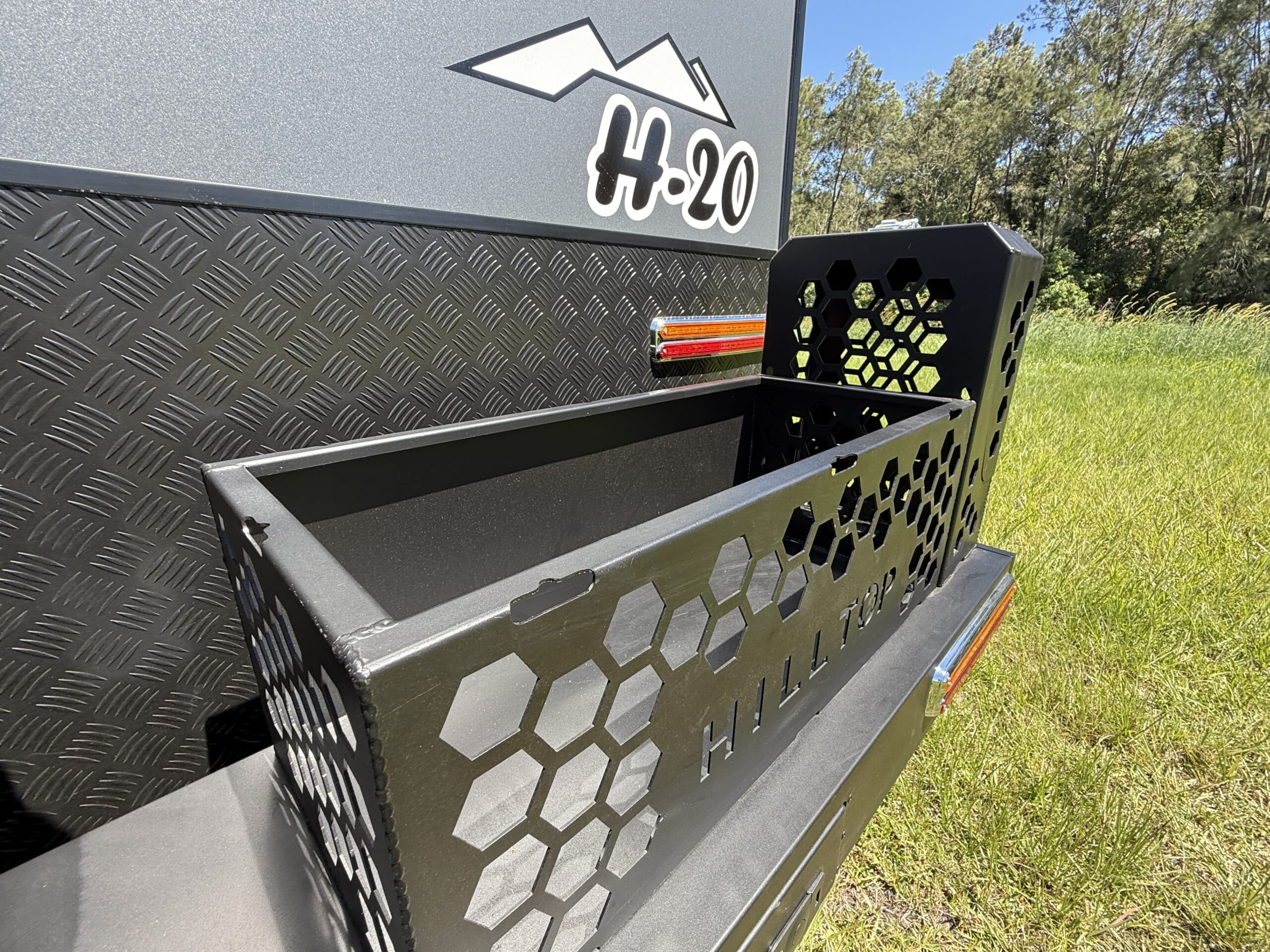

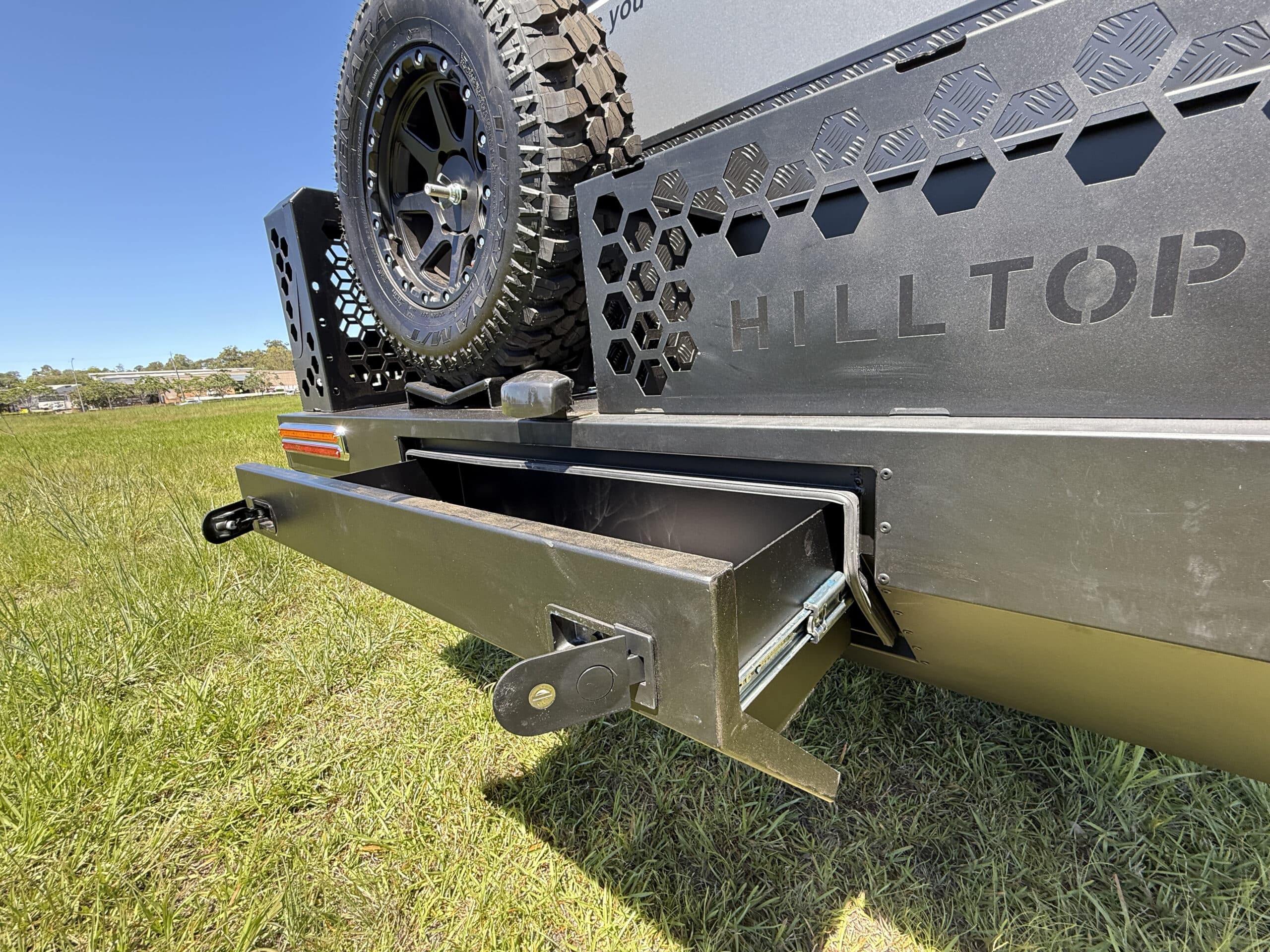

| External Feeatures | Meranti Frame Construction Single piece roof Composite finish with your choice of colours HT-TB08 – Small Toolbox, 2 x 9Kg enclosed gas bottles, bbq slide HT-TB06 – Large rear toolbox with storage, spare wheel and 2 x lockable jerry can holders Dometic manual roll out awning – 5000mm length (Suits 17Ft Screen) Extended checker plate on side and front of van Rear generator hatch Amber / White Annex lights Single spare wheel Galvanised tunnel boot with internal lighting Safety Dave reversing camera with monitor for your vehicle Gas Bayonet connection |
| On-Roads and Warranty | 12 Months Queensland registration Comprehensive handover at our showroom 5 year structural warranty |
Download the Manufacturer’s Brochure
