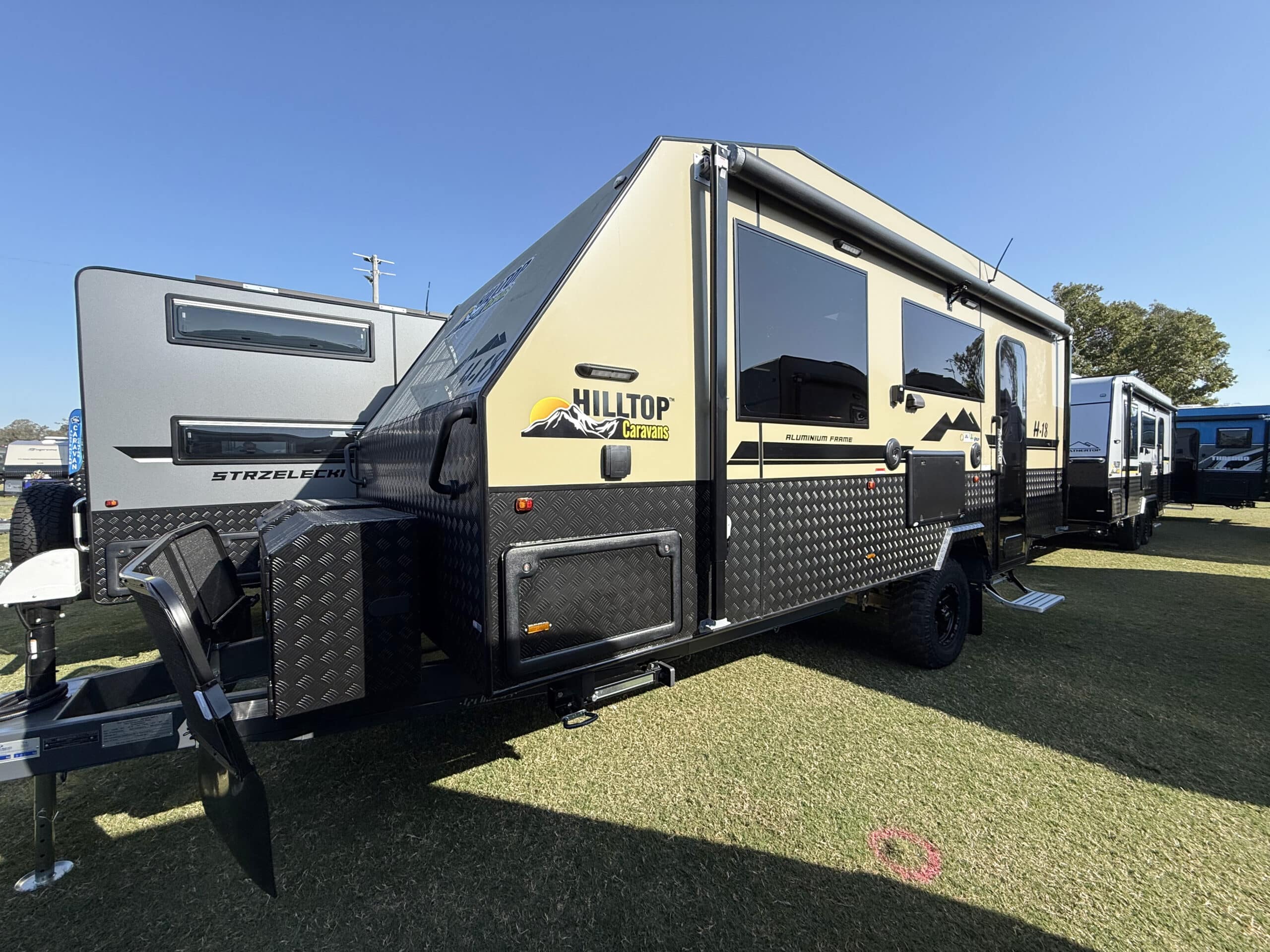

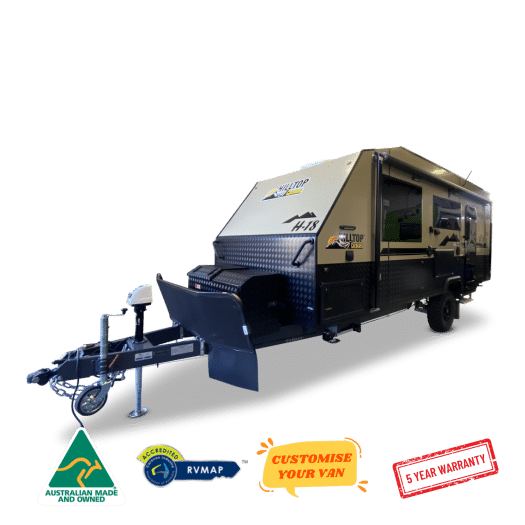

HILLTOP H18 ALLY FRAME
18′ Single AxlE ALUMINIUM FRAME All Terrain Caravan
SINGLE AXLE – MAXIMUM SPACE
Go big without going dual axle — this caravan delivers maximum size and strength with its aluminium frame
2026 SPEC NOW RELEASED
Standard Inclusions:
600W Solar
314Ah Lithium Battery
2600W Inverter
Battery management system
Dometic Dust reduction system
Compressor Fridge / Freezer
Small Toolbox / enclosed gas bottles
Checker plate pipe protection
Flat tinted windows
+ much more…
WANT TO EXPLORE IN PERSON?
Book a private demo with our team in person to see it for yourself.
Specifications & Features
Specs
| Dimensions | Body Length: 18′ Overall Length: 7900mm Width: 2400mm Height: 3100mm TARE: 2420Kg ATM: 3000Kg Ball: 220Kg *All weights and dimensions are approximate only |

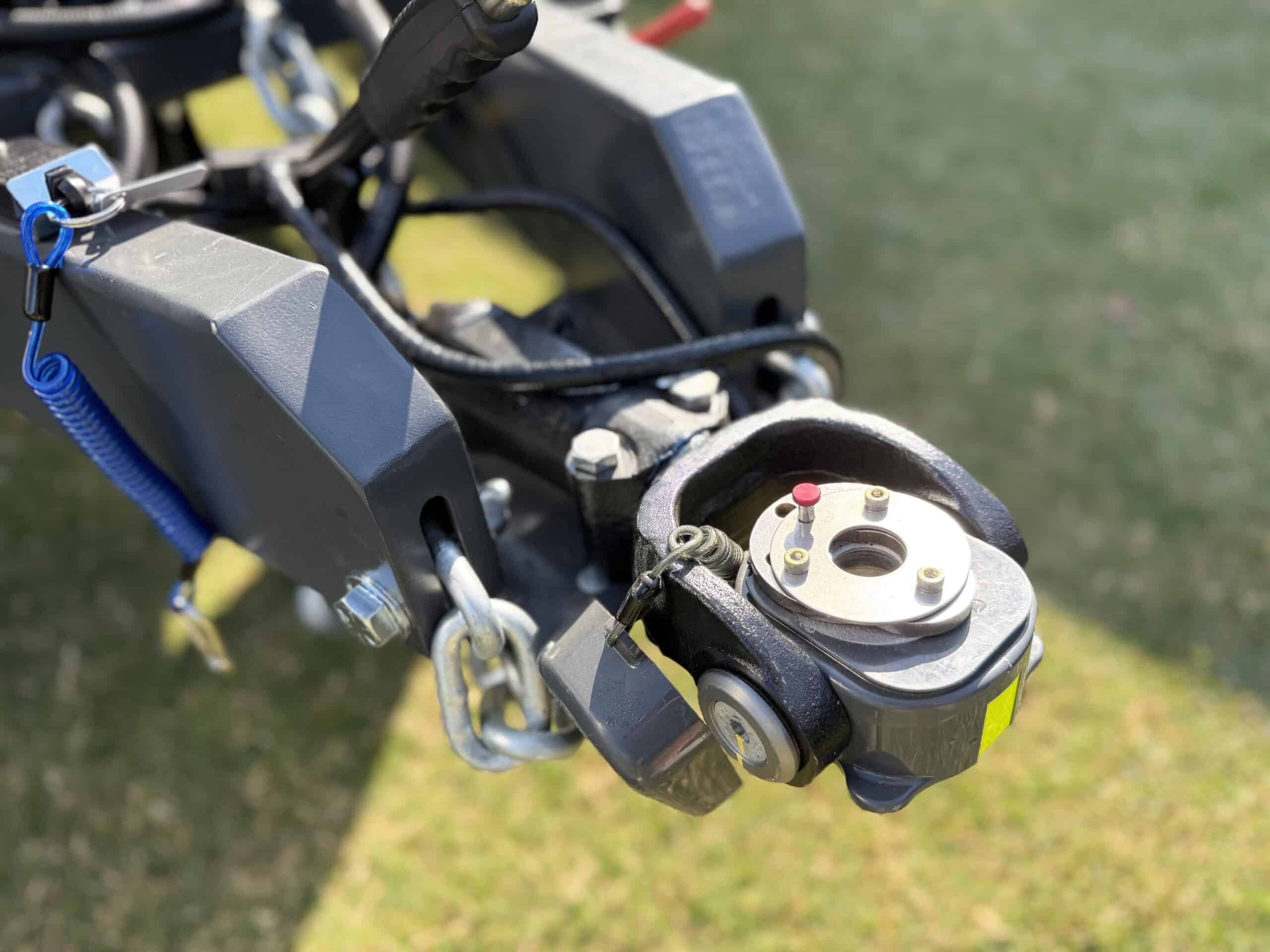

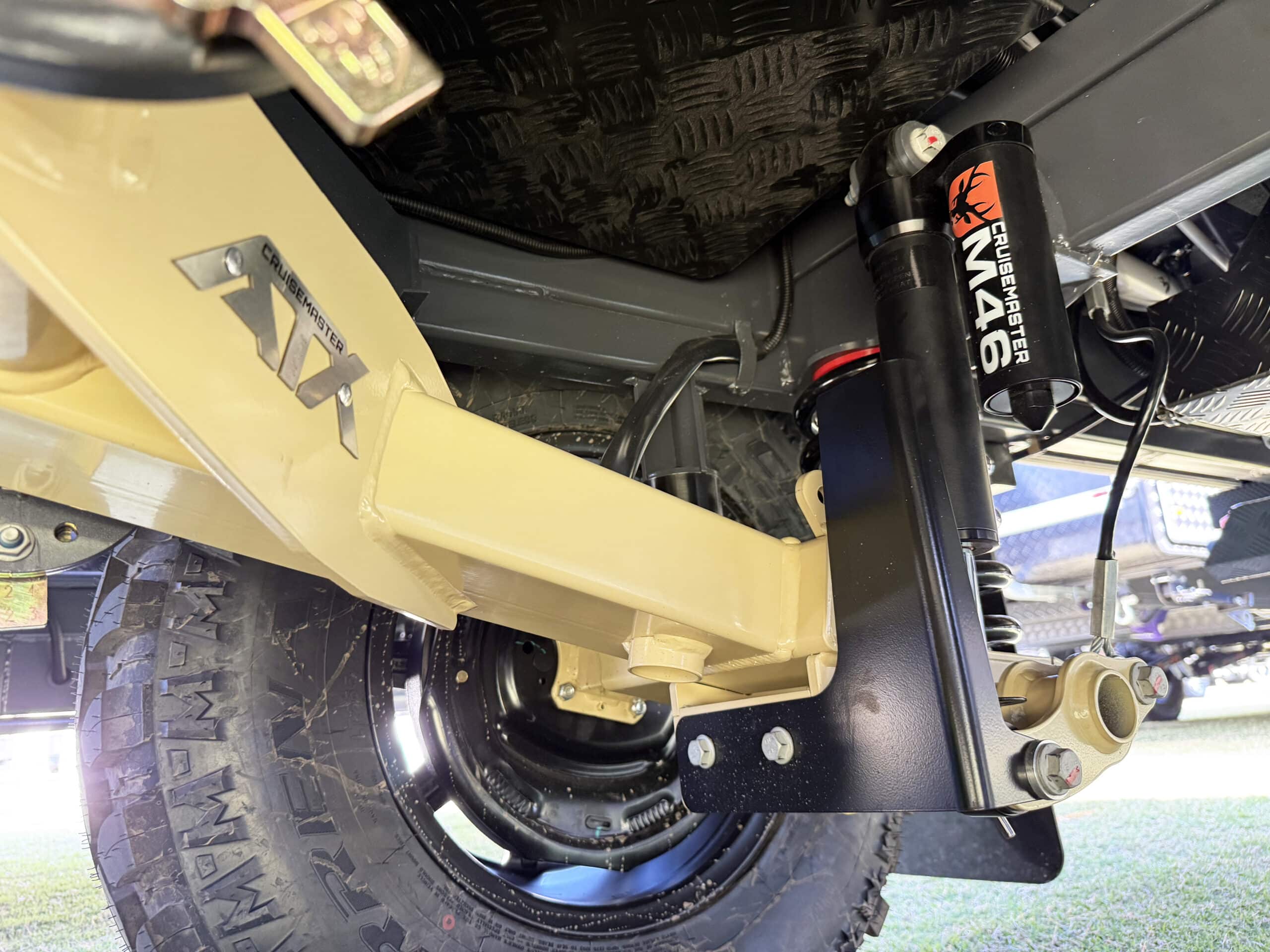

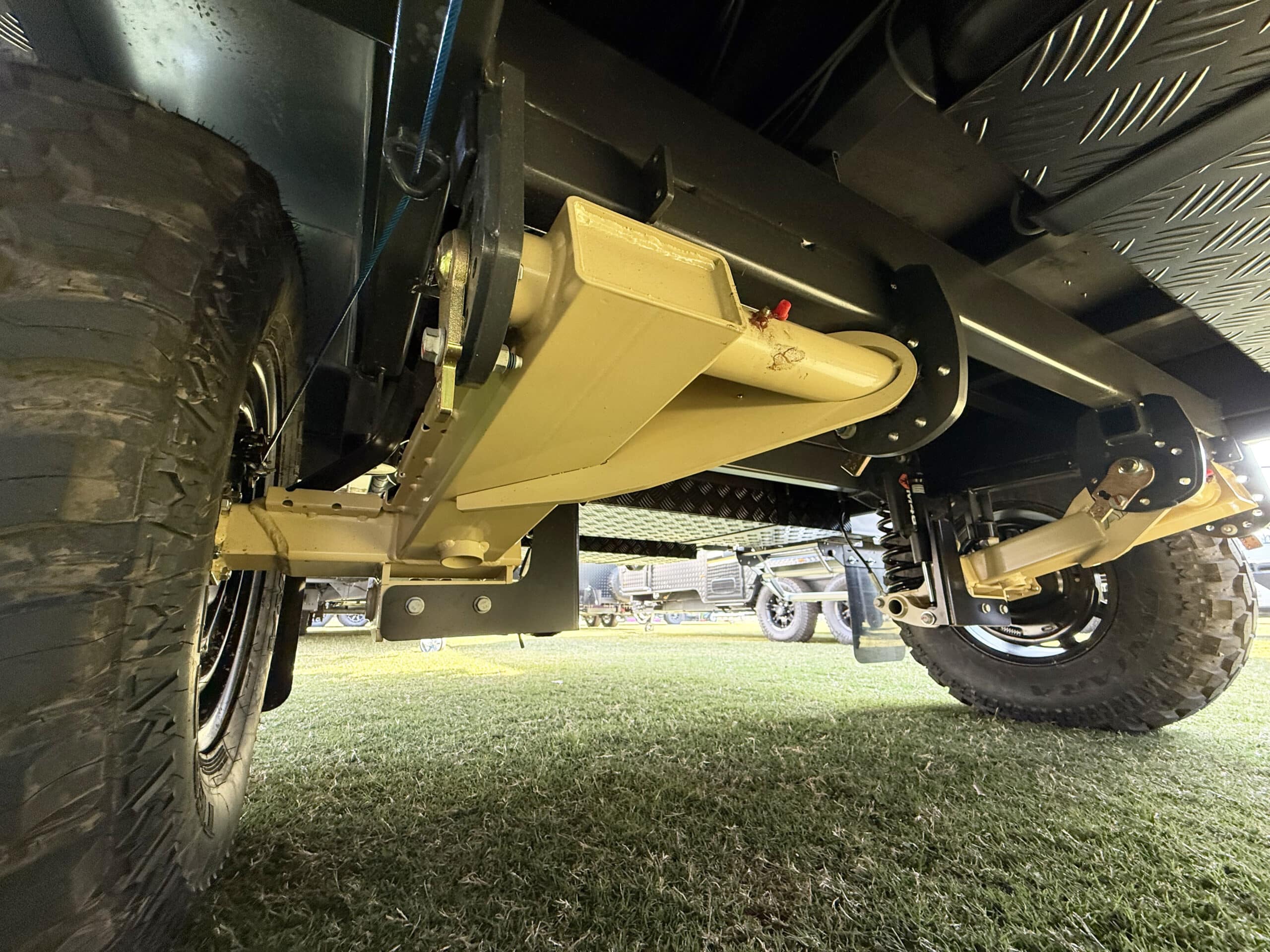

| Chassis and Suspension | 6″Australian steel chassis Cruisemaster ATX 3T Single Axle Independent Suspension Cruisemaster DO35 Hitch 16″ Wheels with BLACK BEAR Mud Tyres Checker plate protection for pipes under van 2 Arm bumper with 1 spare wheel and jerry can holder |
| Electrical | Hi-Tech battery management with touch screen 600W of solar (3 x 200W solar panels) 1 x 314Amp Lithium battery with additional battery box for future expansion 2600W inverter wired to all points 3 in One Charger – Includes DCDC Charger, MPPT Controller and ACDC Charger |
| Water | 2 x 95ltr fresh water tanks 110L Grey water tank All in one water filter (Installed under kitchen sink) Separate fill points for water tanks 28ltr Swift hot water service Grey water hose |

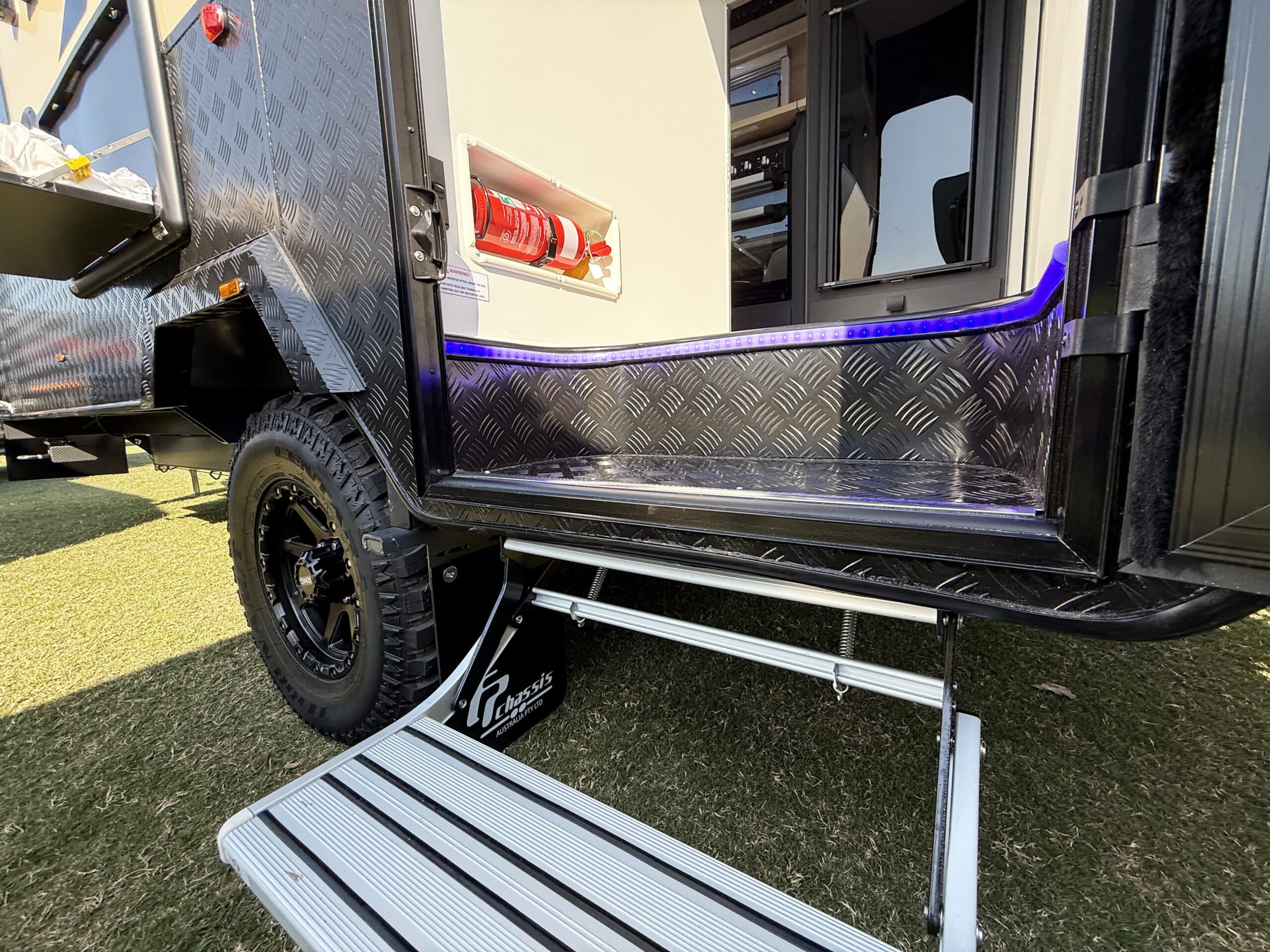

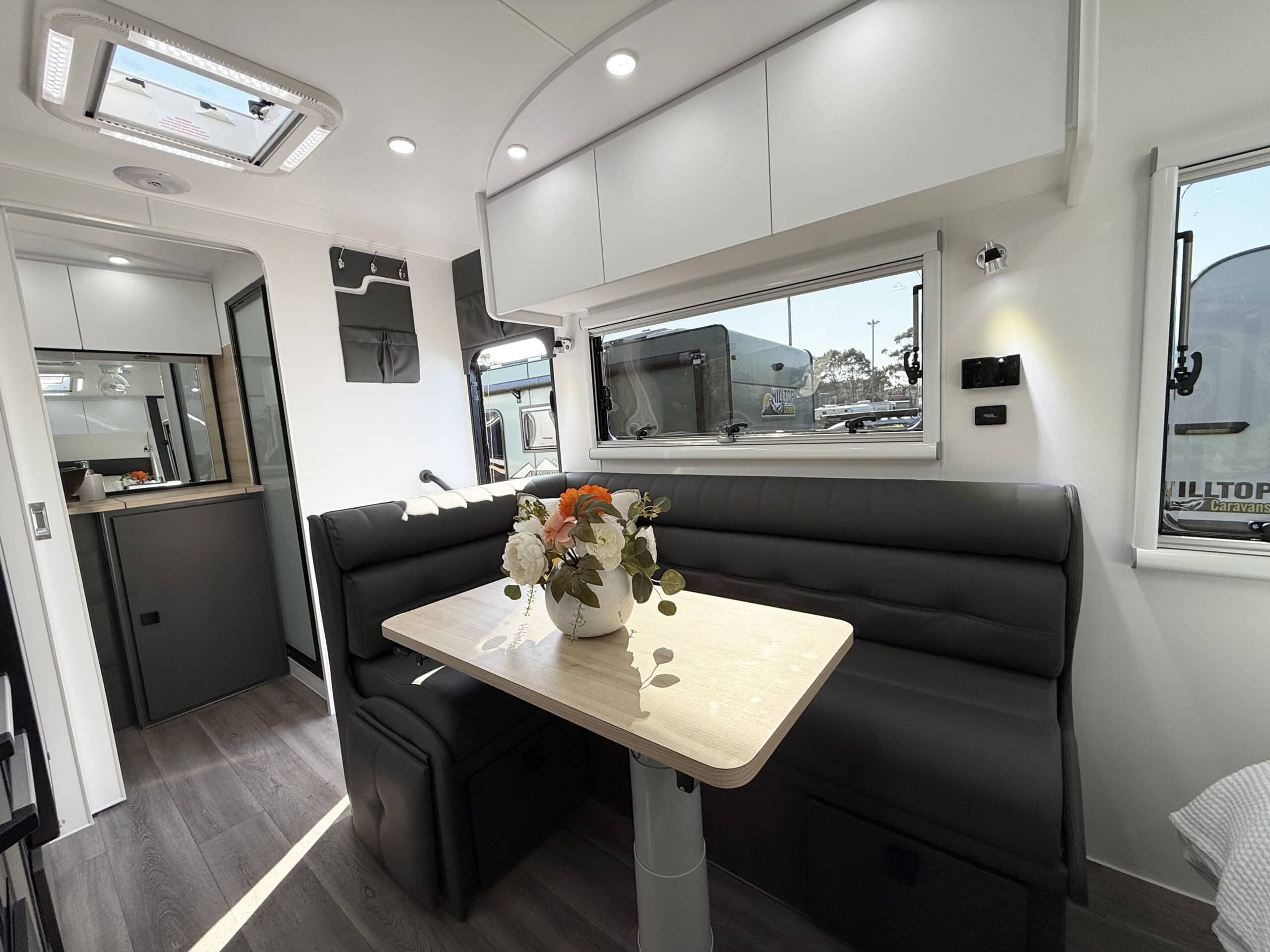

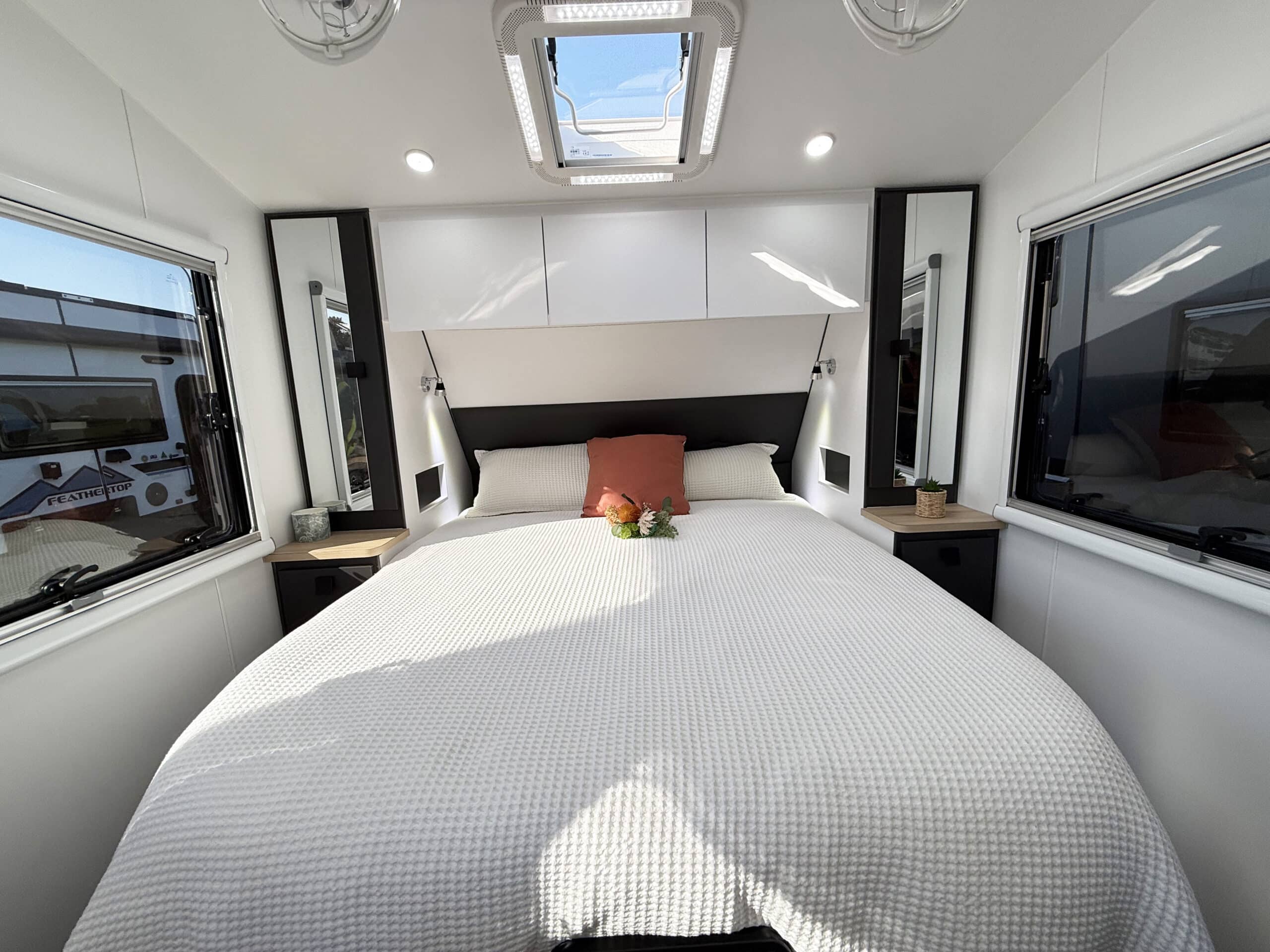

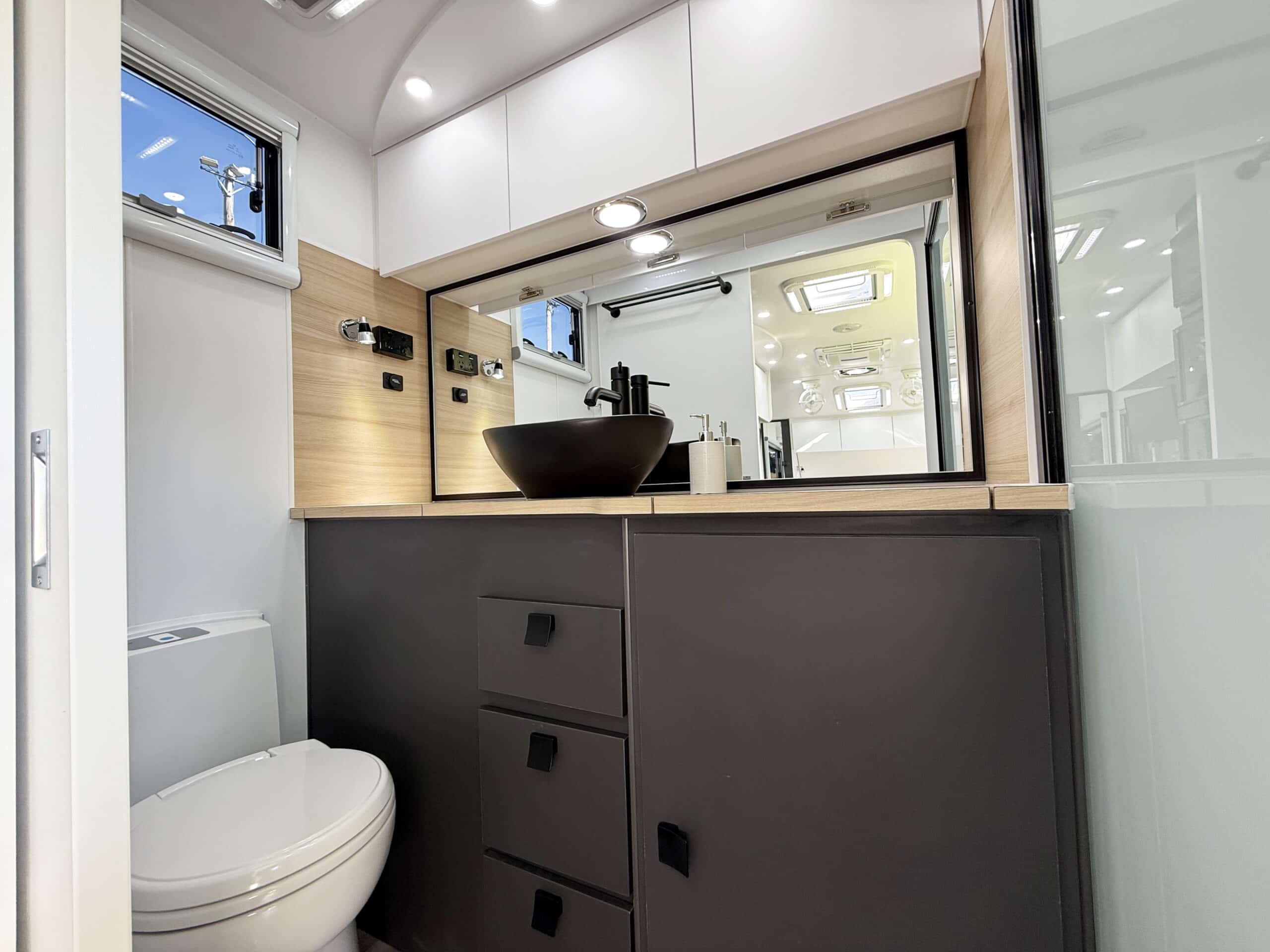

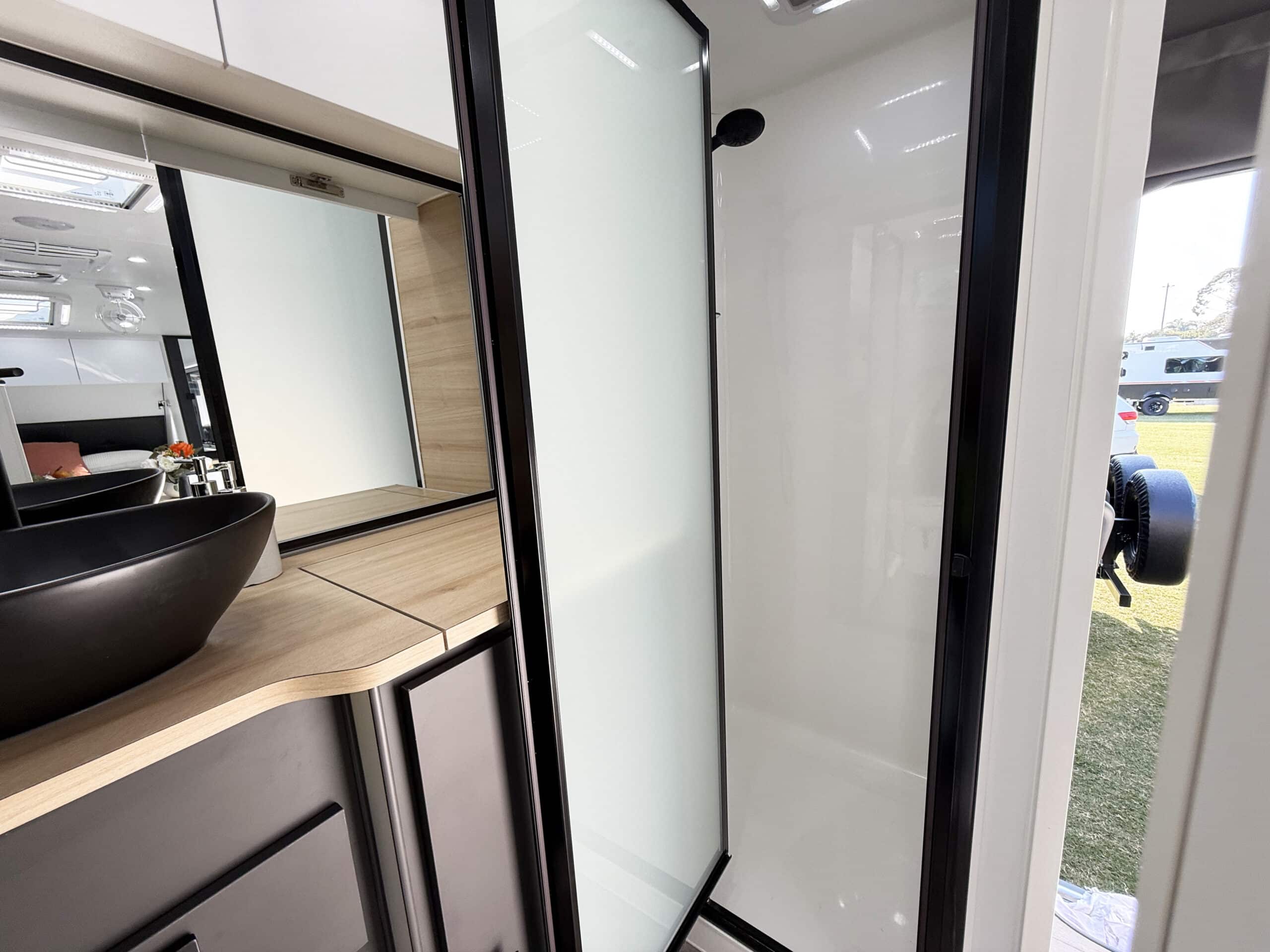

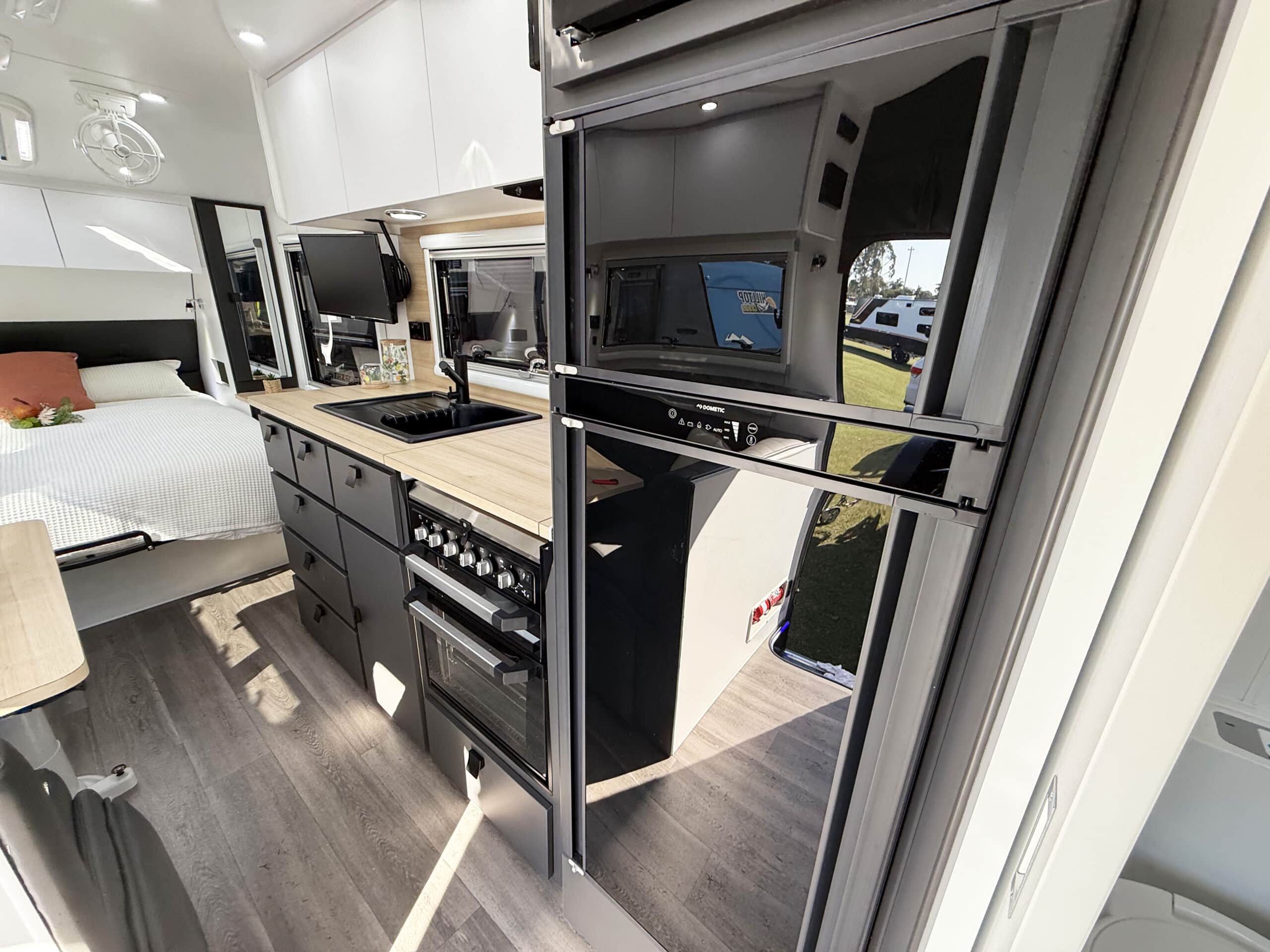

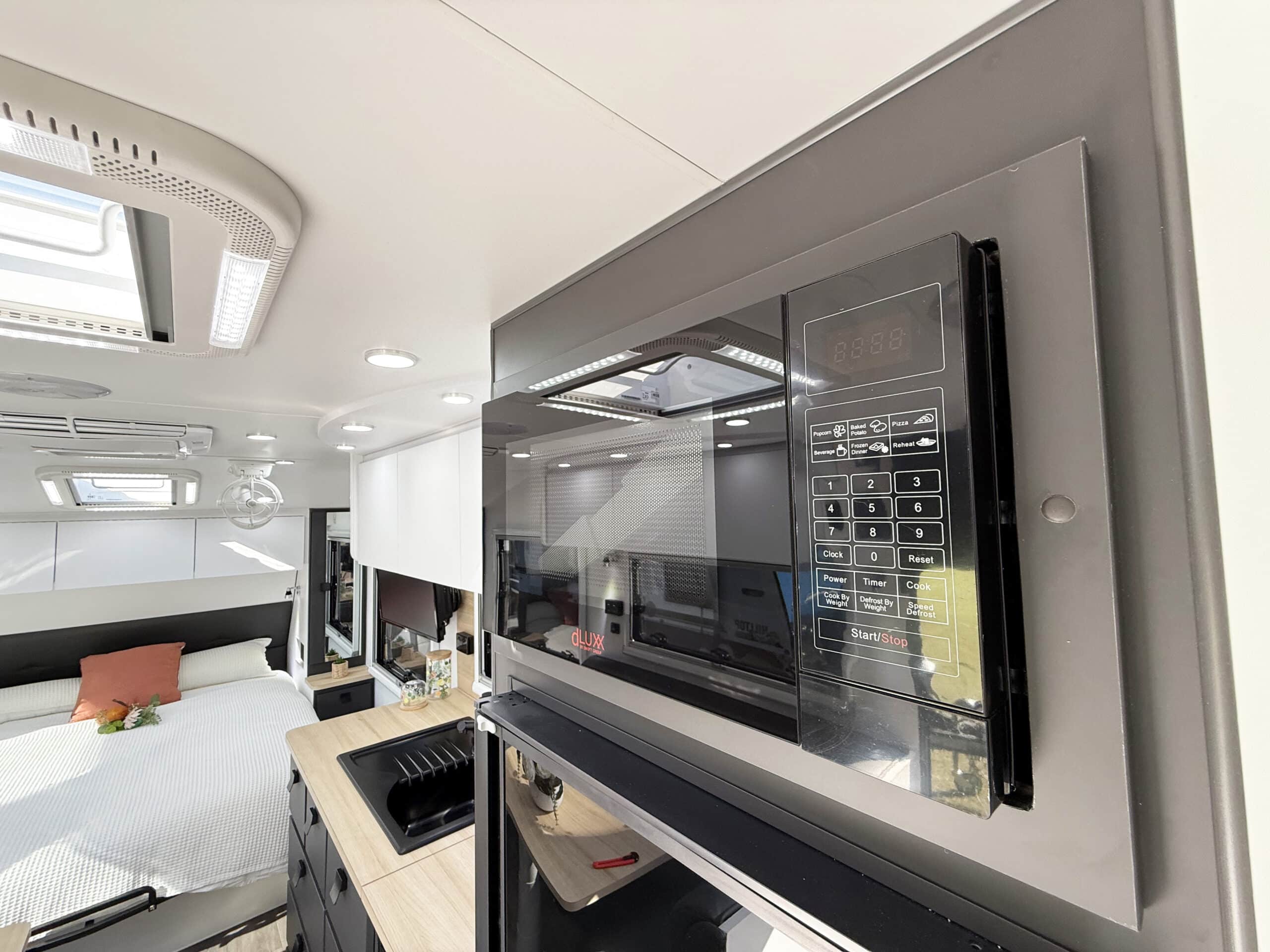

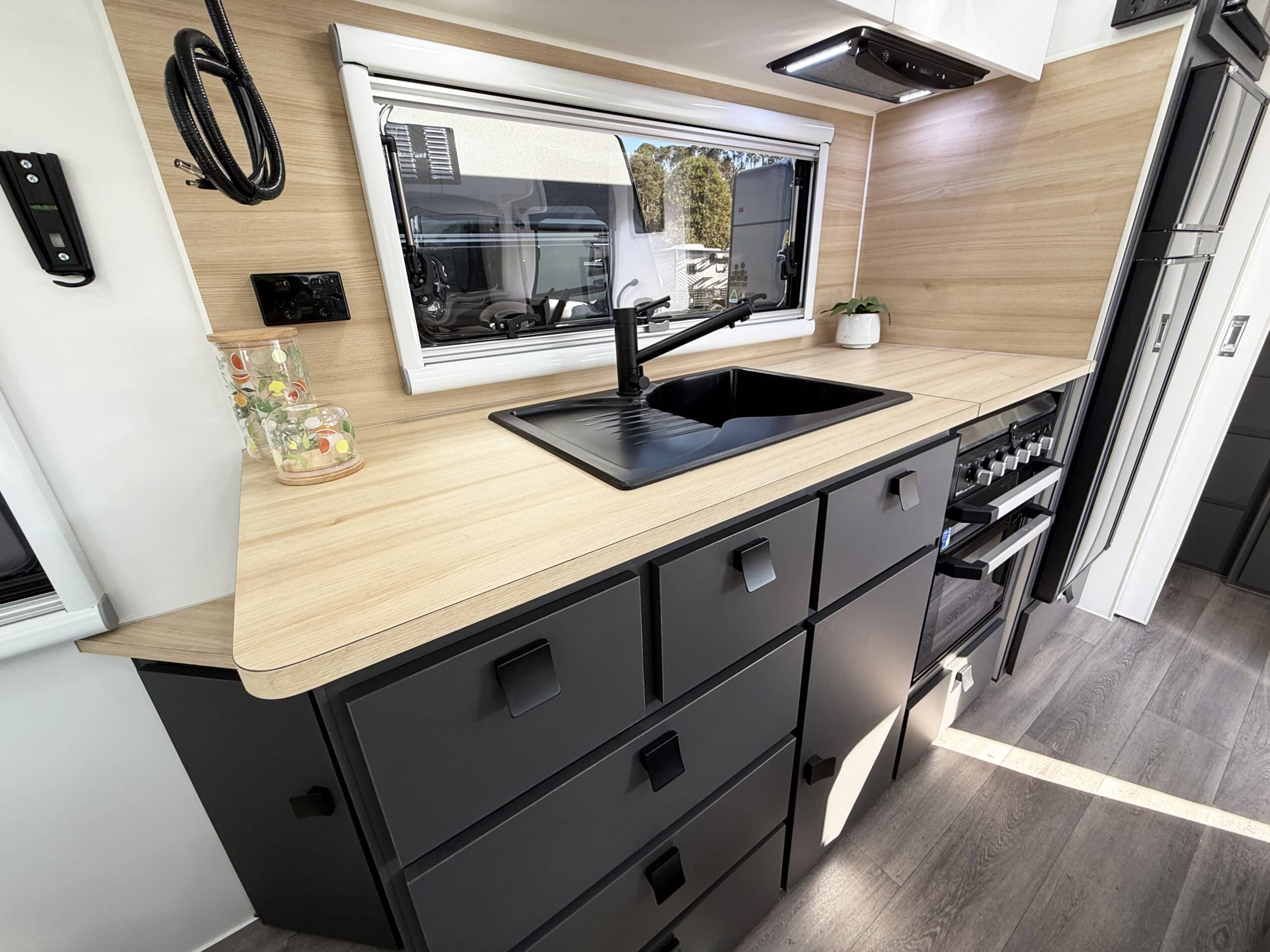

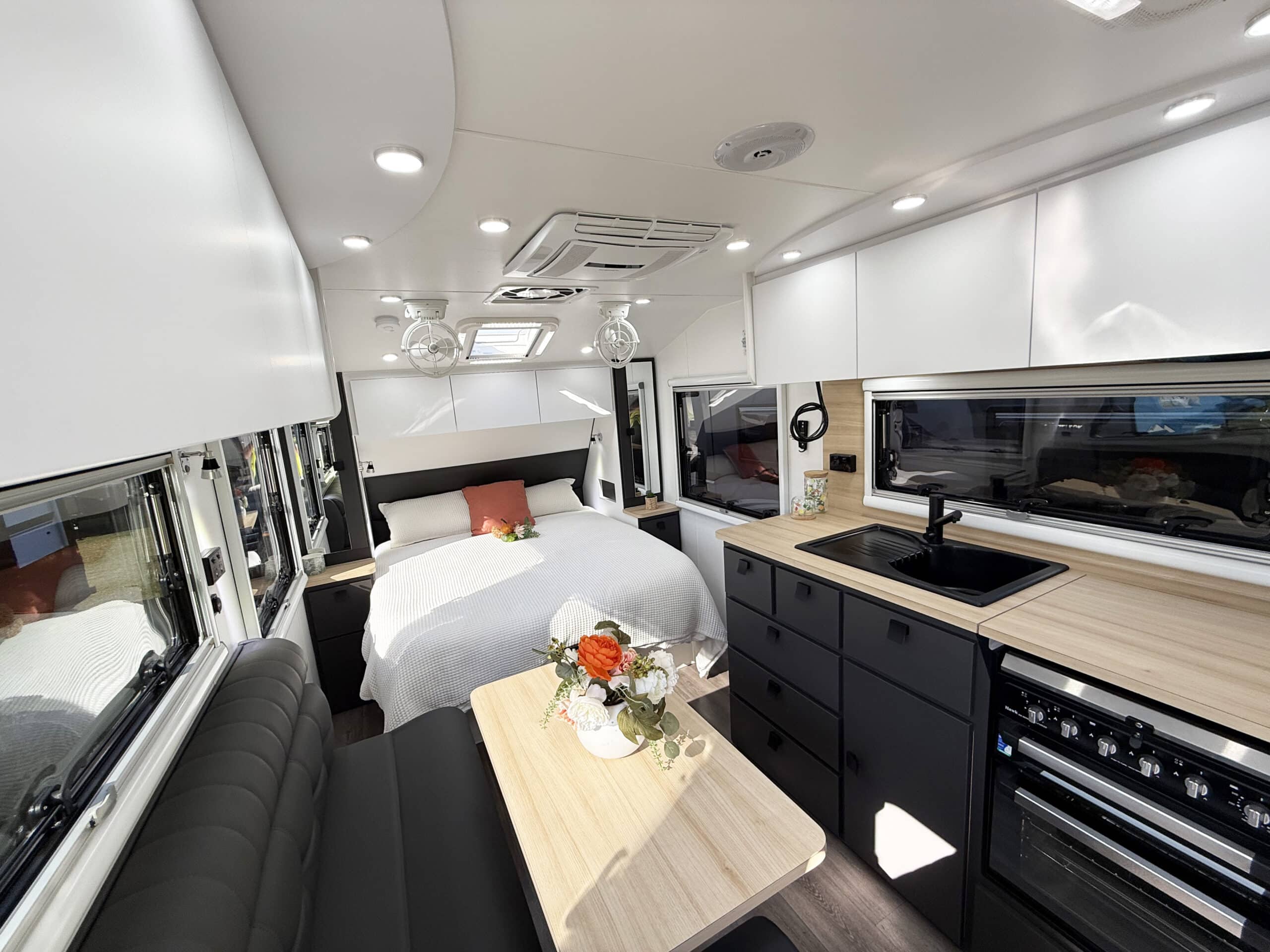

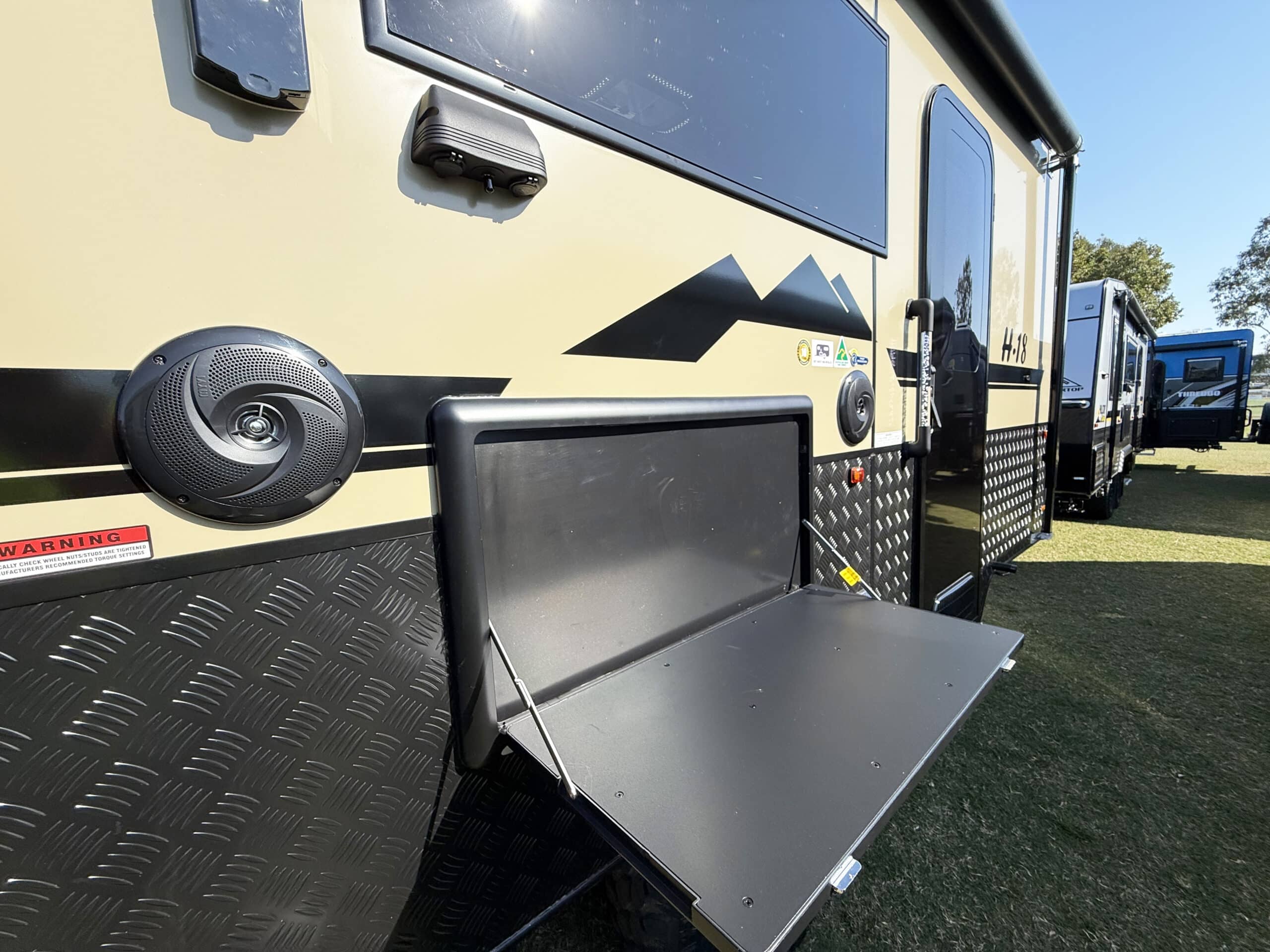

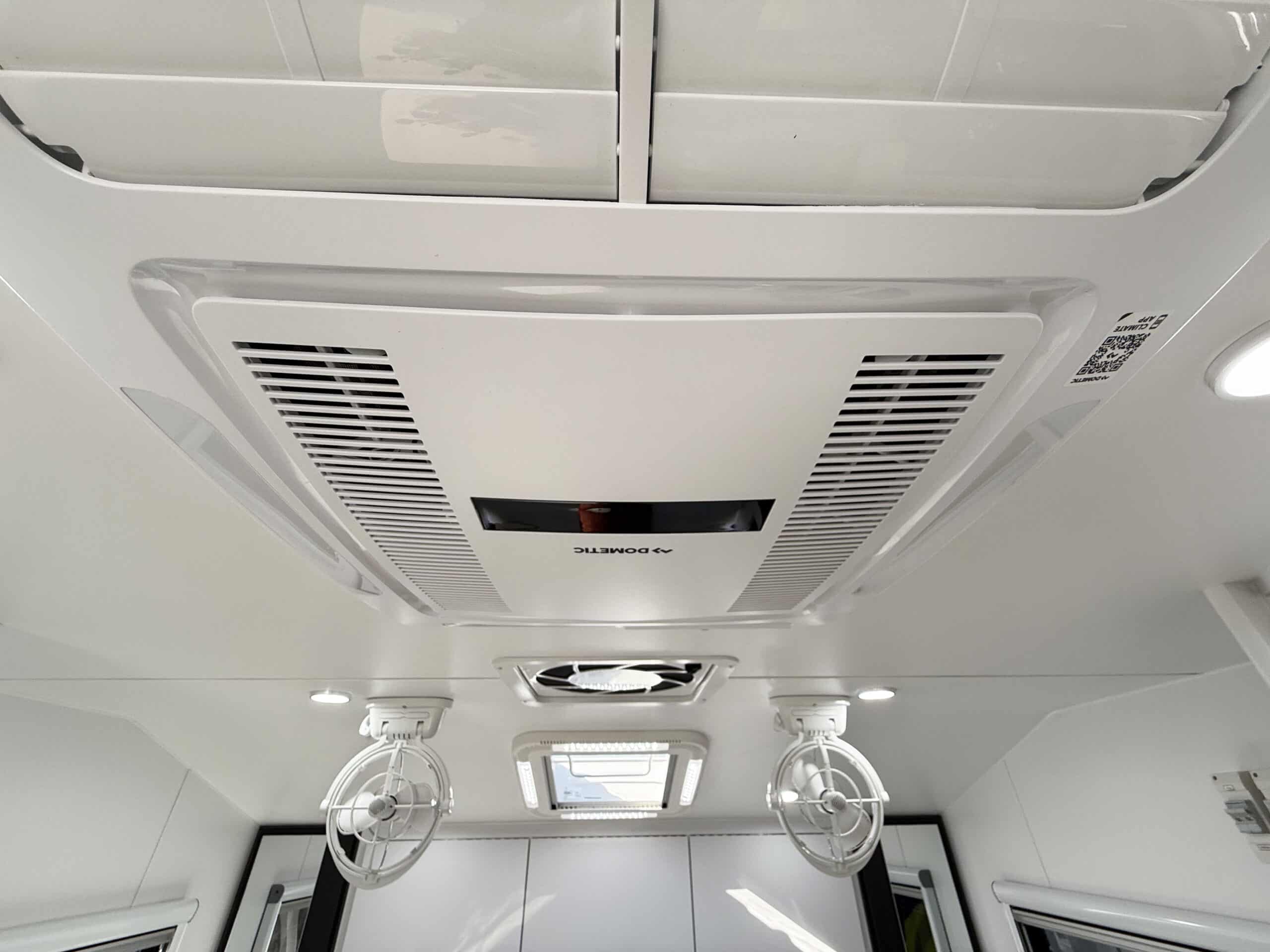

| Internal Features | Full kitchen including Swift fan forced oven and 4 burner cooktop 200L Compressor Fridge / Freezer ‘L’ shape lounge or cafe seating Hawk 4 in one multi-function microwave / convection oven and air fryer and grill All in one water filter Queen size island bed with pillow top mattress Storage under bed Dual hanging robes with mirrored doors plus overhead cabinets over bed 24inch TV with DVD head unit Bluetooth stereo system with internal and external speakers Full width rear bathroom with Thetford china bowl toilet One piece moulded shower 3.5Kg top loader washing machine Overhead cabinets with concealed latches 2 x roof hatches with fans and LED lighting Euro style flat tinted windows Dometic FreshJet 7 Series Pro A/C 12V Dust Reduction System (Choice of either Gusto or Carafan) 2 x Sirocco fans Feature bulk heads with LED down lights for each overhead cupboard LED Strip lighting internal and on entry step |

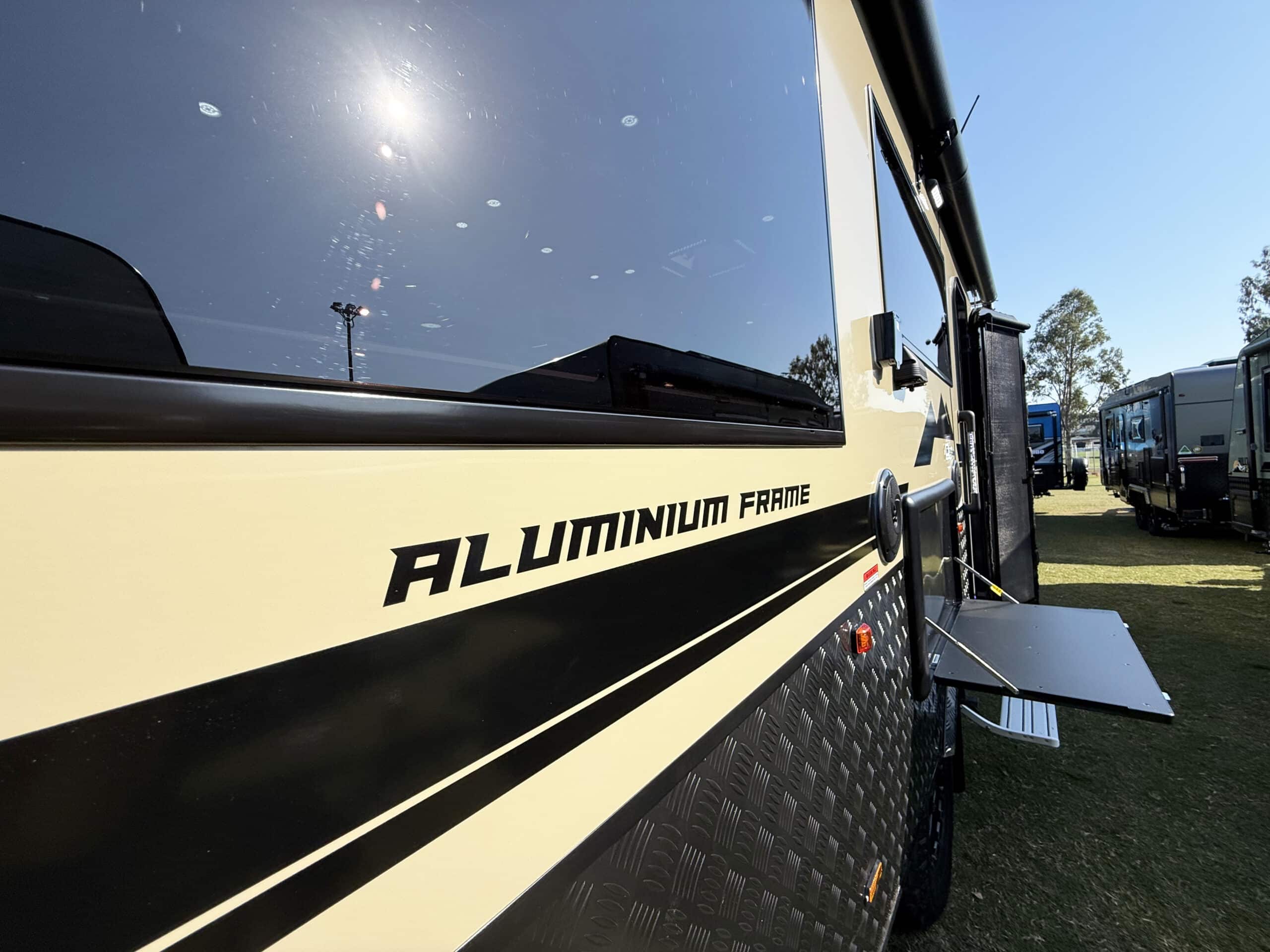

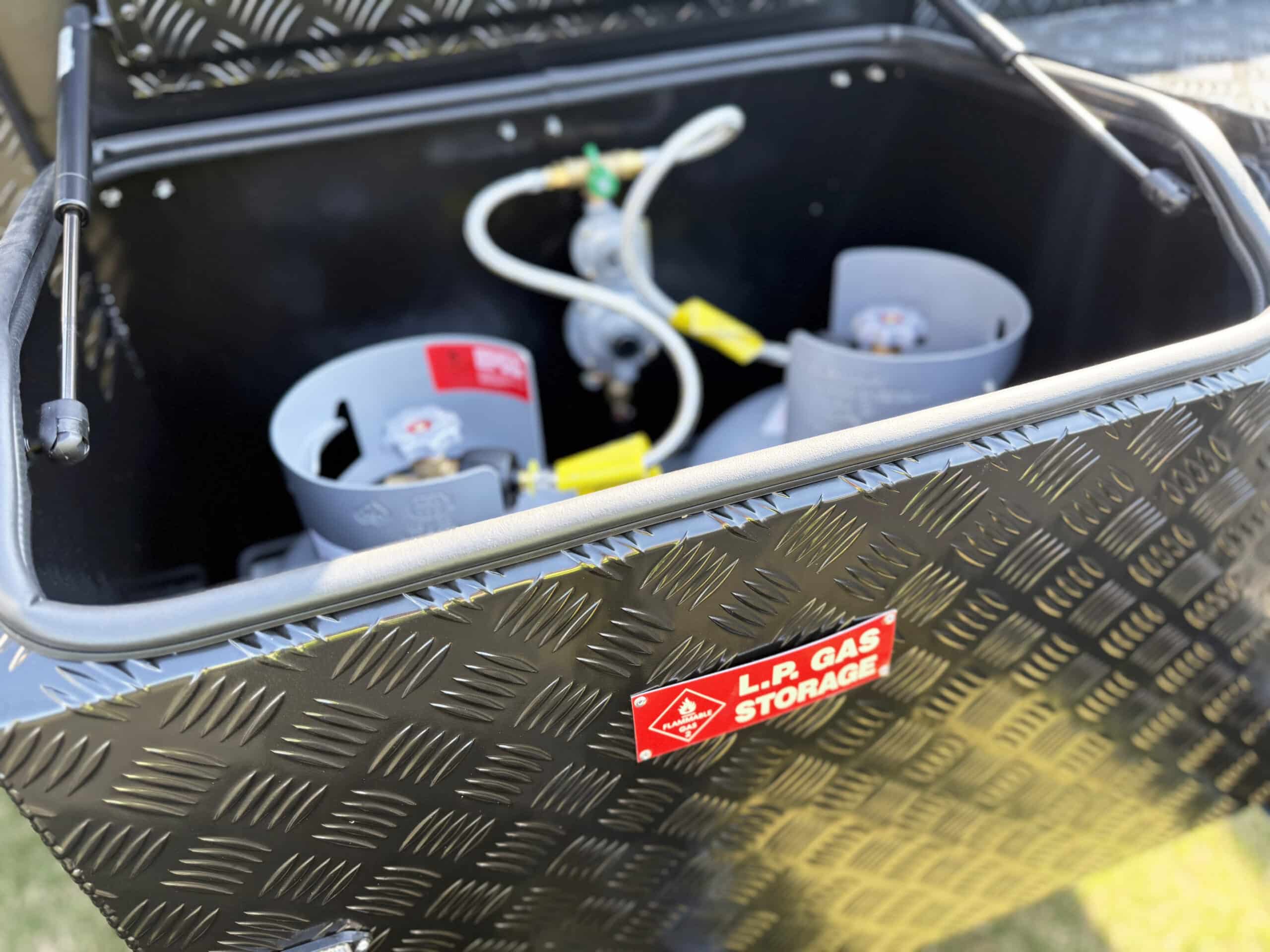

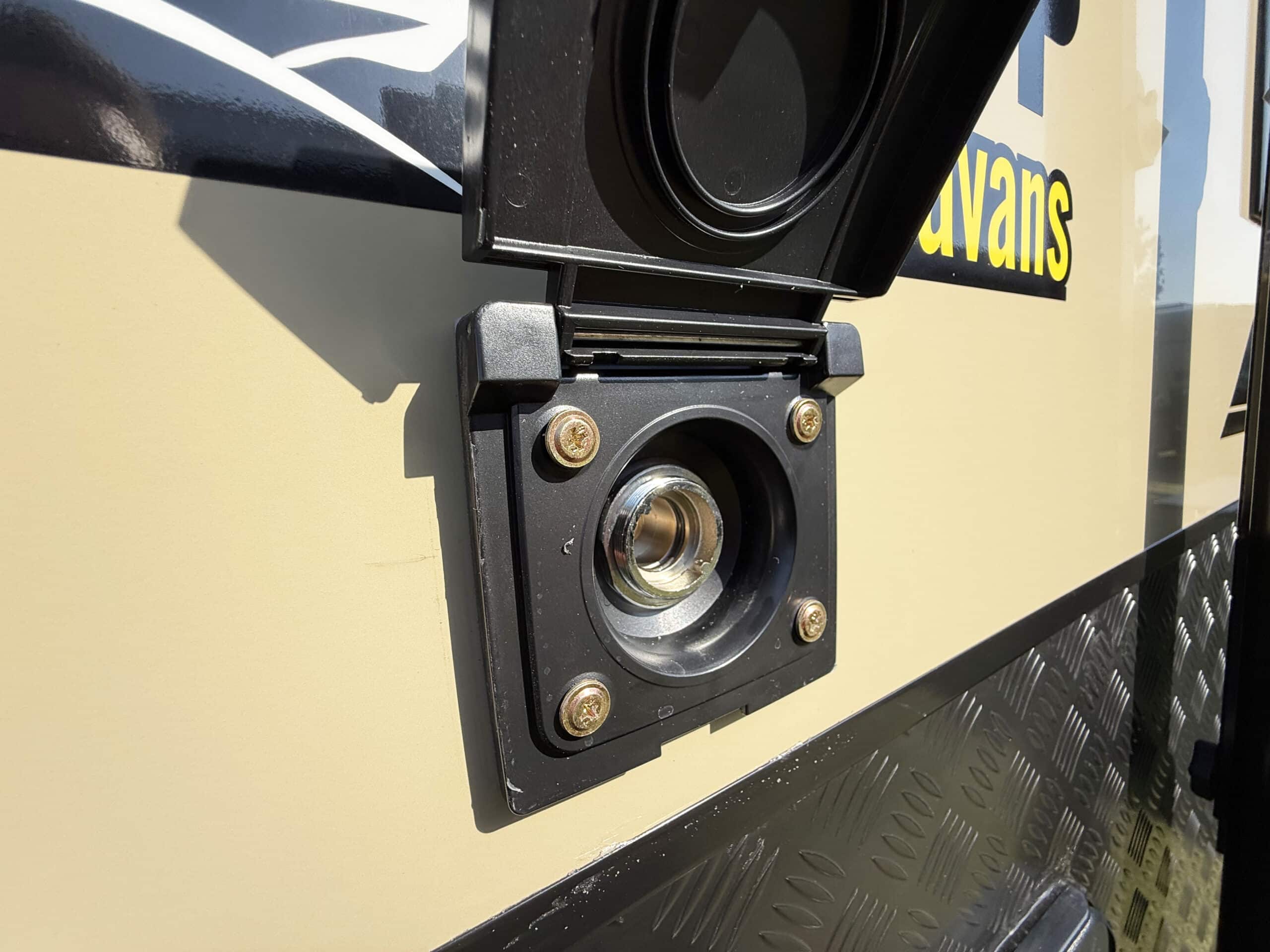

| External Features | TIG Welded Aluminium Frame Construction Single piece roof Composite finish with your choice of colours HT-TB08 – Large Toolbox, 2 x 9Kg enclosed gas bottles, bbq slide and generator slide Stone Shield Dometic manual roll out awning – 4400mm length (Suits 15Ft Screen) Extended checker plate on side and front of van Amber / White Annex lights Single spare wheel Galvanised tunnel boot with internal lighting Safety Dave reversing camera with monitor for your vehicle Gas Bayonet connection |
| On-Roads and Warranty | 12 Months Queensland registration Comprehensive handover at our showroom 5 year warranty – 12 Month Manufacturer warranty PLUS additional 4 year dealer backed warranty. |
| After Sales Service | We encourage you to explore Hilltop Caravans and Set Up Camp RV Centre online. Both brands are backed by a long-standing reputation for exceptional after-sales service — a commitment reflected in our outstanding Google rating. We would love to have you join the Set Up Camp and Hilltop Caravan family. |
Download the Set Up Camp spec H18 Brochure
